Frontier WR2214 - Assembly Drawbar

ASSEMBLY
50
B
A
C
B
A
B
A

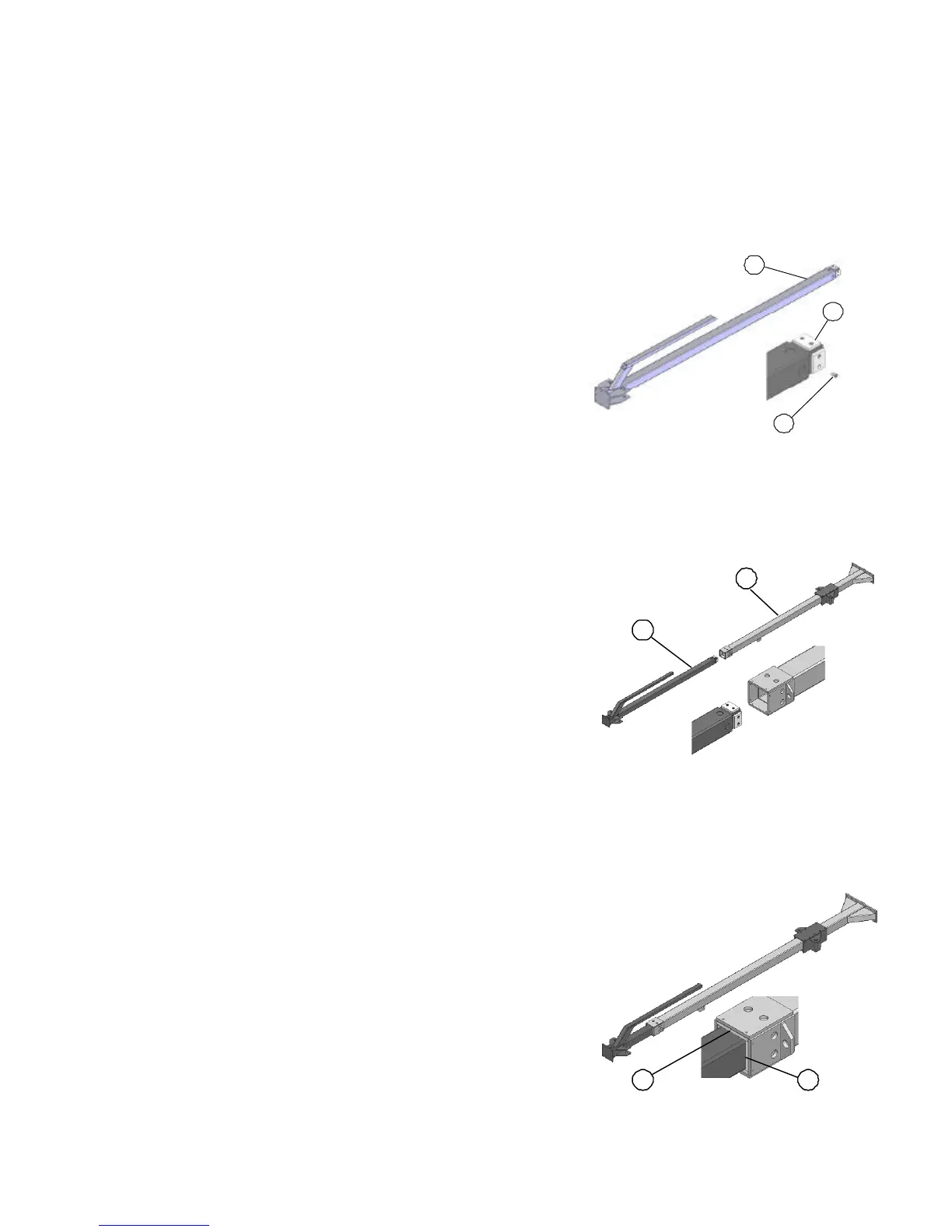

ASSEMBLY DRAWBAR
1. Fasten the pads with holes (A) to the front
part of the sliding drawbar (B) with M8x16 hex
socket head cap screws (C)
A— Holed pads
B— Drawbar
C— Screws TCEI M8x16
2. Slide the sliding drawbar (A) into the rear drawbar
(B). Carry out this operation on the ground.
A— Drawbar
B— Rear drawbar
3. Position pads (A) and (B) as shown.
A— Pads
B— Pads
