OPERATING THE RAKE
ADJUSTING RAKING WHEEL HEIGHT

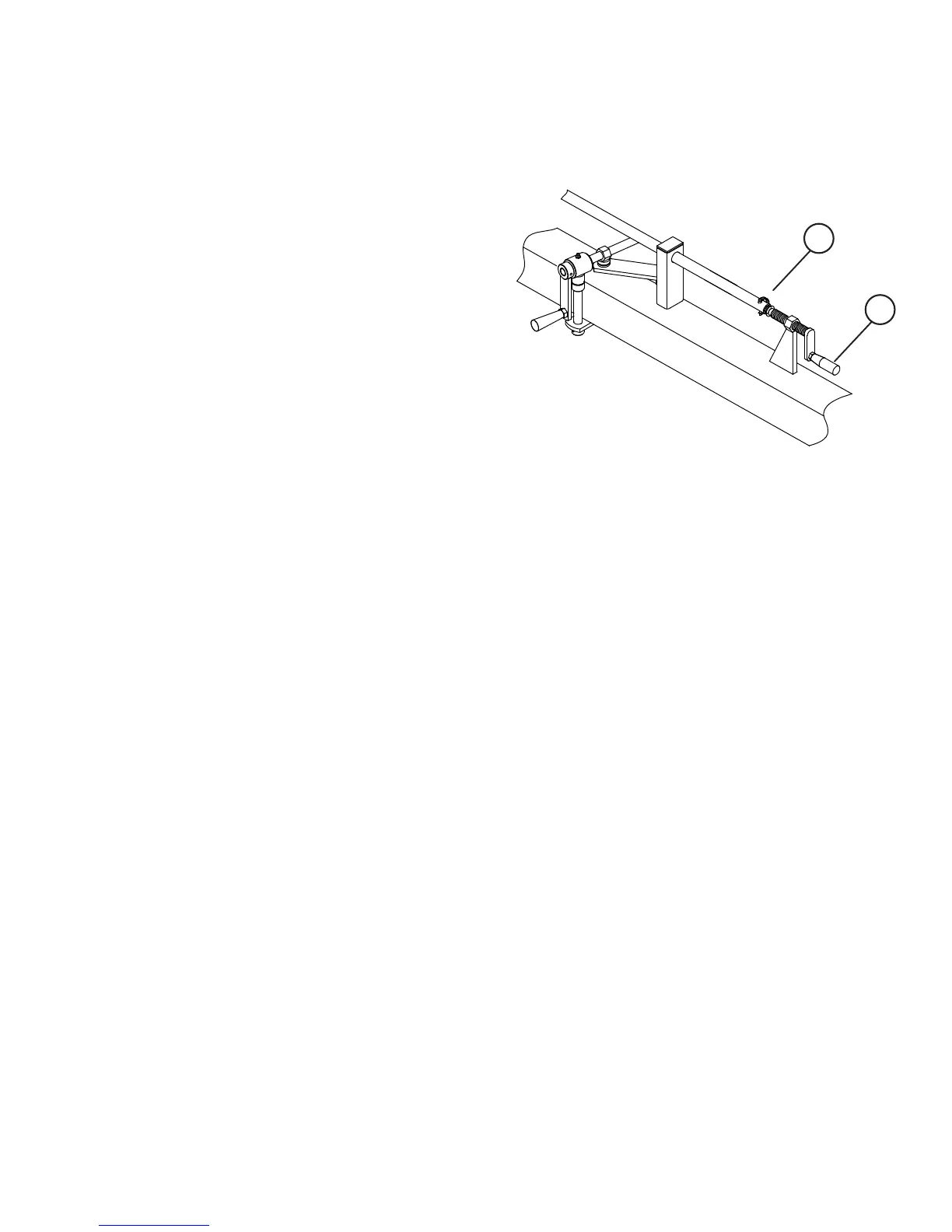

A—Spring-Lock Pin
B—Crank
Each raking wheel is independently spring loaded to allow
each wheel to follow the ground contour. The raking
wheels should lightly touch the ground and turn during
operation. The correct ground pressure on raking wheels
may vary depending on field conditions and the type and
quantity of crop being raked.
To adjust raking wheel height:
1. Lower raking wheels.
2. Make sure spring-lock pin (A) is in operation position.
3. Turn crank (B) clockwise to decrease ground pressure;
turn crank (B) counterclockwise to increase ground
pressure.
4. Repeat on opposite side.
31
A
B
