Frontier WR2214 User Manual

ASSEMBLY
54
B
A
C
D

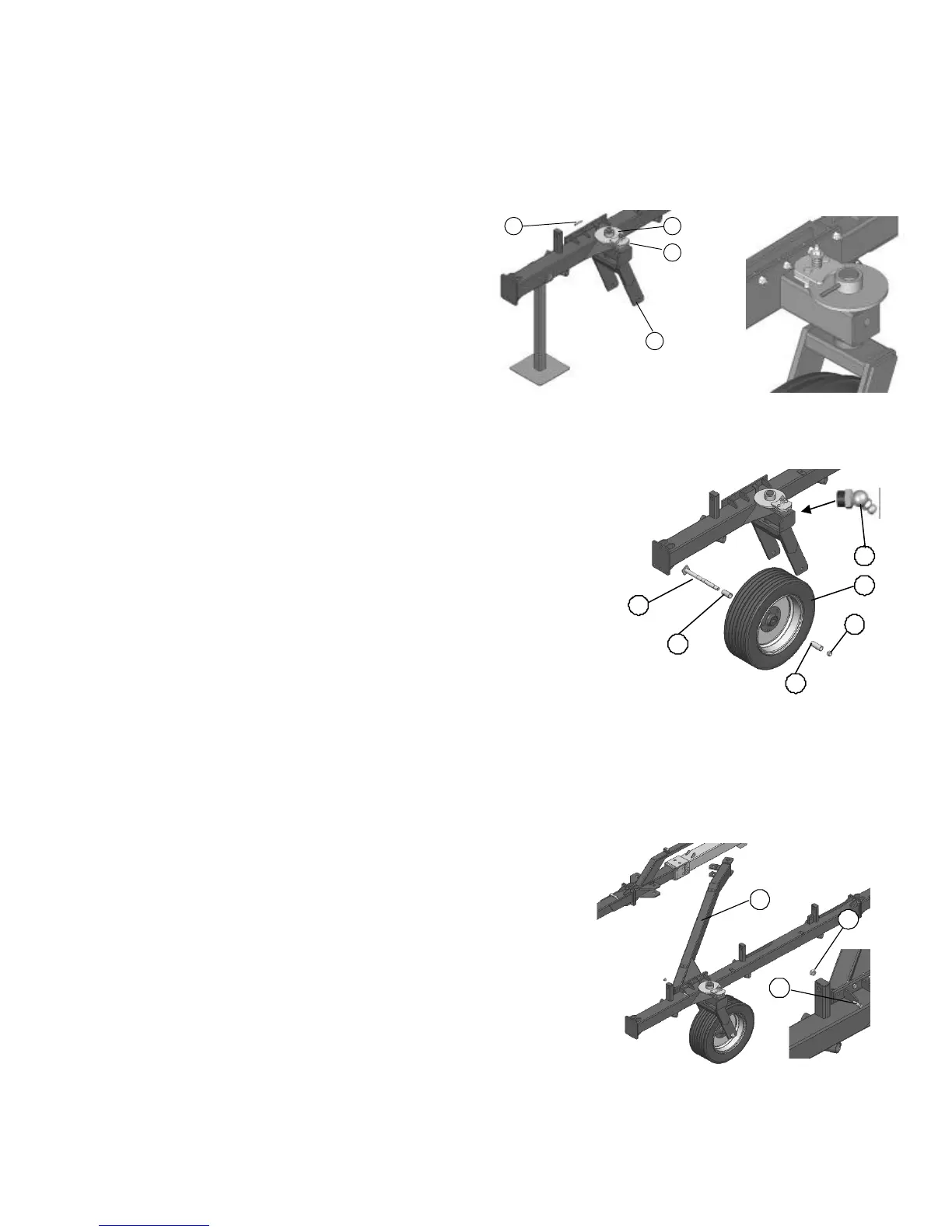

4. Slide the pivoting fork (A) into the wheel support
on the frame. Assemble the brake assembly (C)
and the brake disc (B). Fasten with the
10mmx70mm (.39inx2.75in) Rollpin (D).
A— Pivoting fork
B— Disc brake
C— Brake
D— Rollpin
5. Assemble the wheel (A) with the 279mm long (11in)
pivot (B) and the M24 nut (C). Position the 70mm
(2.75) and 82mm (3.23in) long spacers (D)
according to the hub so the wheel is centered on
the fork. Insert the 45° greaser (E).
A— Wheel
B— Pivot M24
C— Nut M24
D— Spacers
ASSEMBLY OPENING ARMS
1. Fasten the arm/frame attachment (A) with
M12X40 cap screw (B) and M12 lock nuts (C).
A— Arm/frame attachment
B— Screws M12x4
C— Lock nuts M12
B
A
C
B
A
C
D
D
E
