ASSEMBLY
65
I
H
G

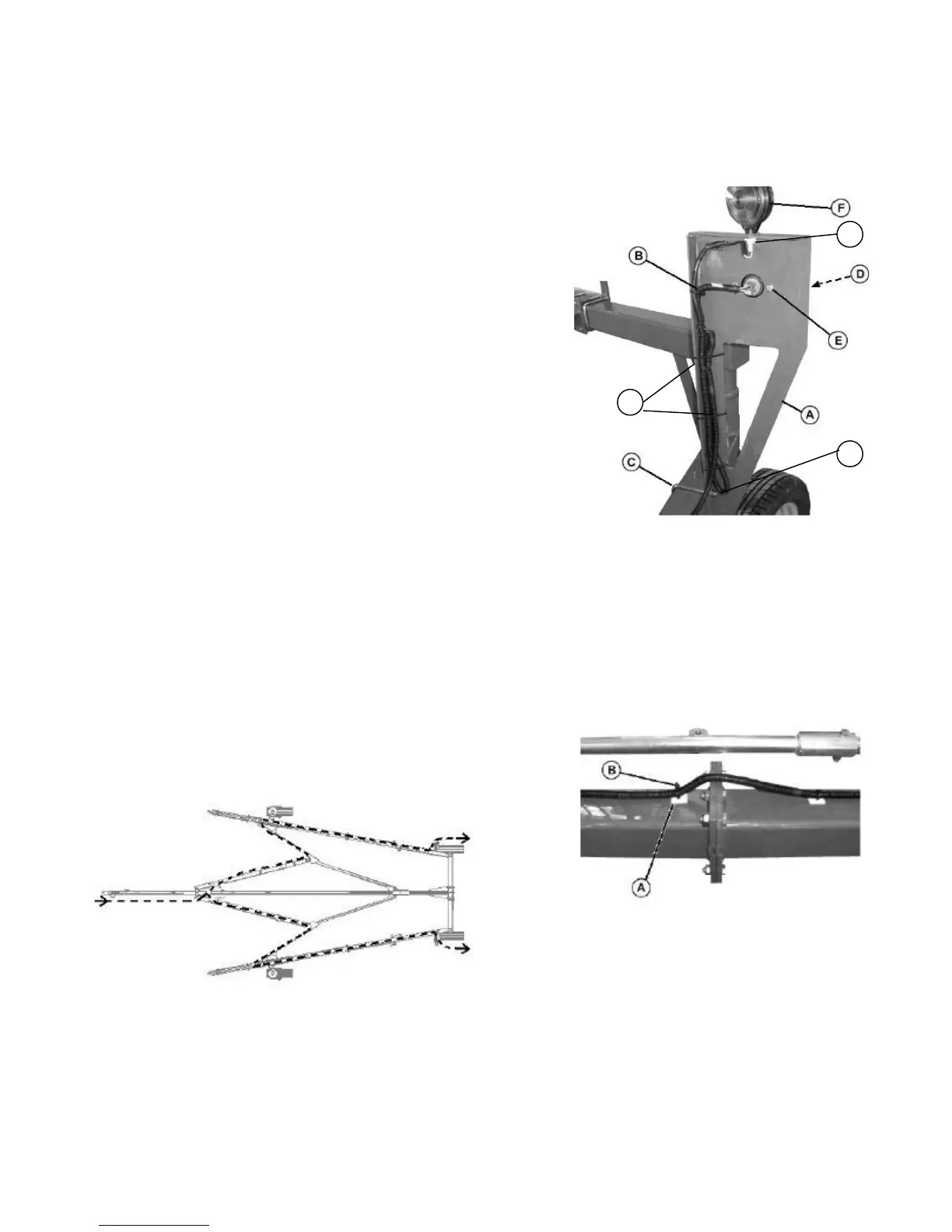

INSTALL TRANSPORT LIGHTS
1. Install bracket (A). Fasten with U-bolt (C) and two
M12 nuts (G).
2. Install red tail lamp (D) to rear of bracket. Fasten
with two M8 x 16 cap screws (E).
3. Install yellow warning lamp (F) through bracket
slot. Tighten nut (H).
4. Attach wiring harness (B) to warning lamp
connector and tail lamp socket.
5. Install tie bands (I) as shown in the picture.
A—Bracket
B— Wiring Harness
C—U-Bolt
D—Tail Lamp (Red)
E—M8 x 16 Cap Screw
F—Flashing Warning Lamp (Yellow)
G— M12 nuts
H— Nut
I— Tie bands
6. Position the wiring harness along the tube and
fasten with the wire clip (A) and tie bands (B).
A—Wire clip
B— Tie Band
