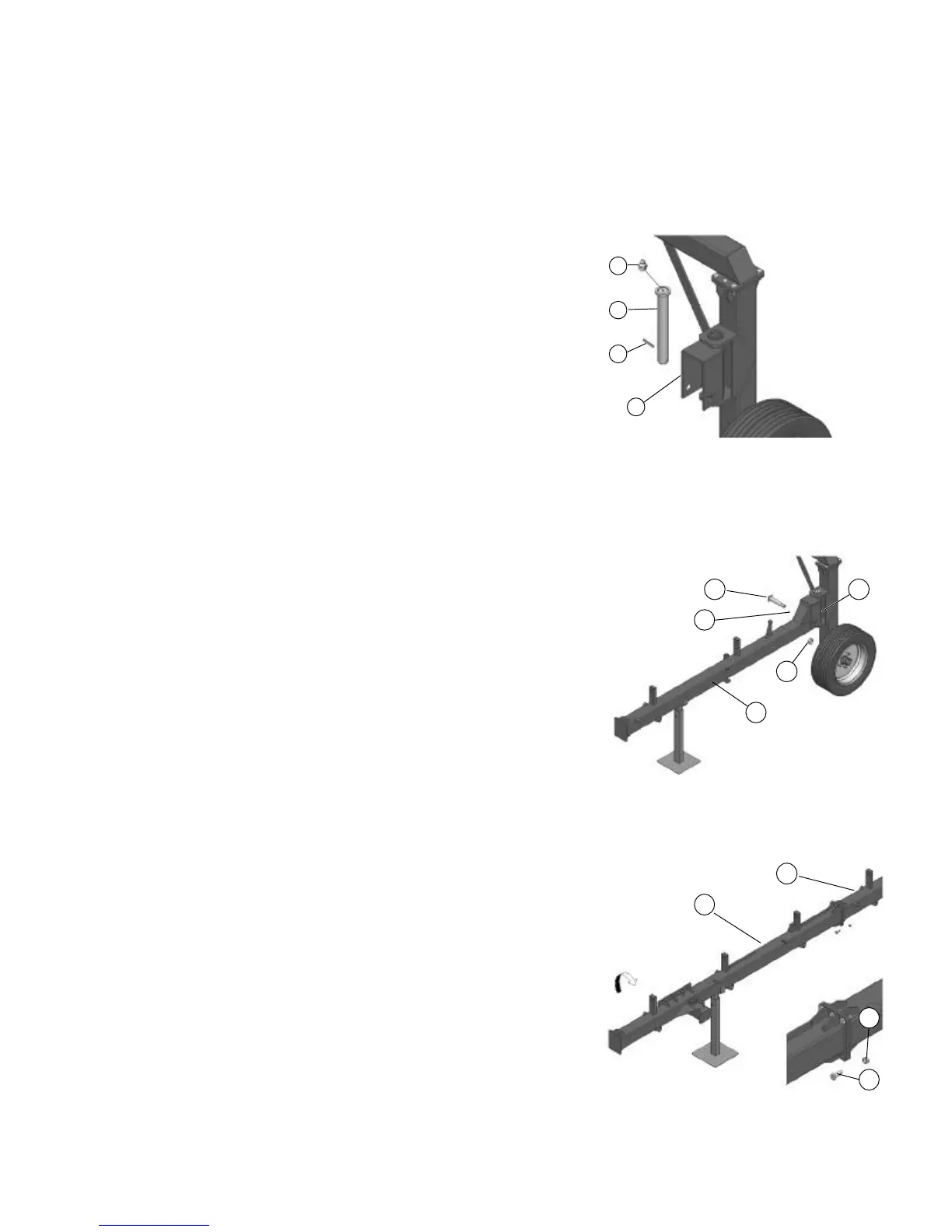

ASSEMBLY SIDE FRAMES
1. Install the pivoting bracket (A) onto the rear frame
with 383mm (15in) pivot pin (B) and 10mmx70mm
(34inx2.75in) Roll pin (C). Assemble the grease
zerk (D). Repeat for the right hand side of the
machine.
A— Bracket
B— Pivot
C— Elastic pin
D— Grease zerk
2. Connect the rear frame (A) in the bracket (B) with
140mm (5.51in.) long M30 pivot (C) and M30 nut
(D). Assemble the grease zerk (E) onto the pivot.
A— Rear frame
B— Bracket
C— Pivot M30
D— Nut
3. Connect the center frame (A) to the rear frame (B)
with M14x40 cap screw (C) and Lock nuts (D).
Before tightening the screws twist the frame
towards the outside as shown.
A— Center frame
B— Rear frame
