ASSEMBLY
52
B
A
C
C
B
A
B
A

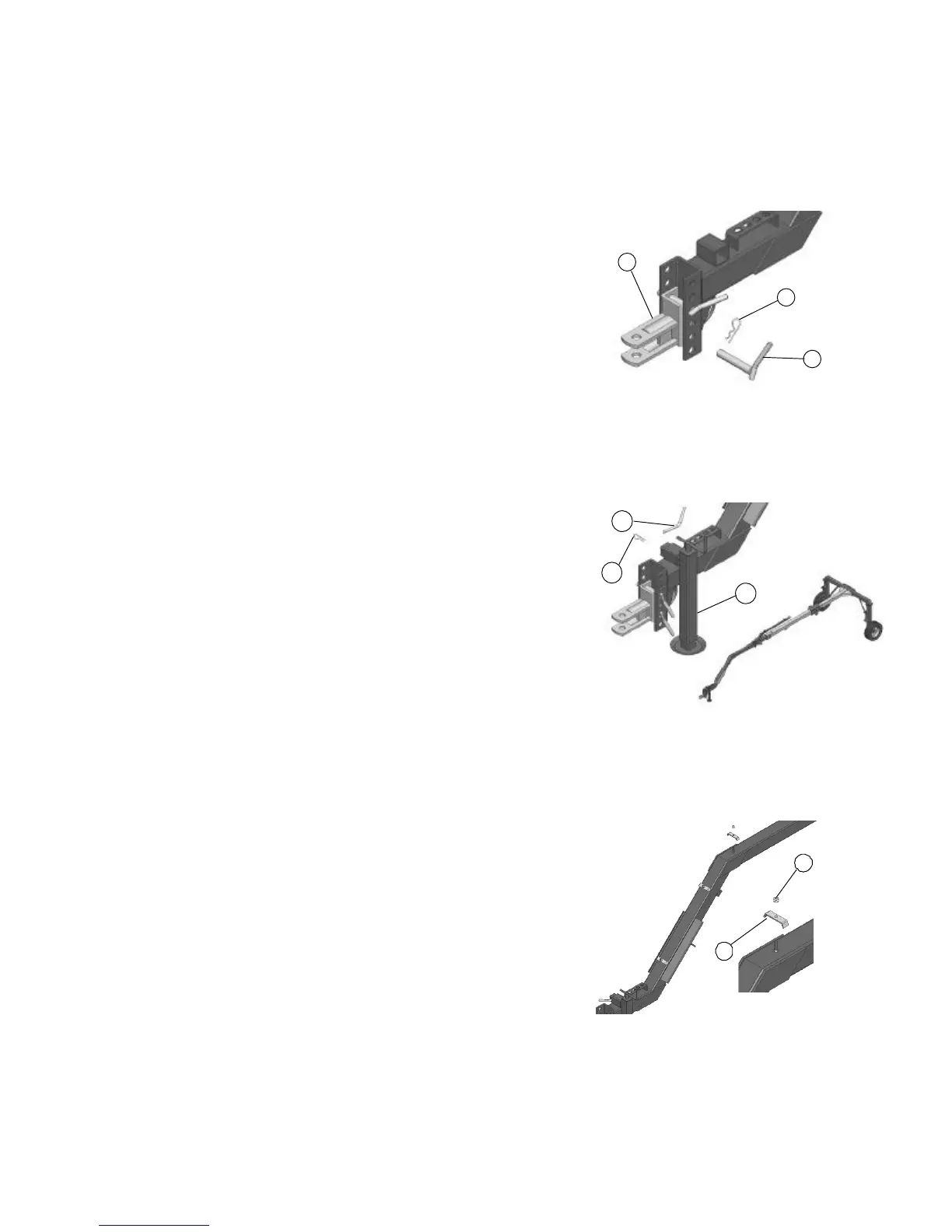

7. Assemble the hitch clevis (A) with T-pins (B) and
4mm (.16in) spring pin (C).
A— Hitch clevis
B— T-pins
C— Spring pin
8. Assemble the jackstand (A) with the L-pin (B), and
the 2.5mm (10 in.) spring pin (C). All support
stands can now be removed from the machine..
A— Pin
B— Split pin
9. Assemble the hose clamps (A) onto the drawbar
with M10 lock nuts (B).
A— Hose clamp
B— M10 Lock nuts
