REPLACING WHEEL TINES

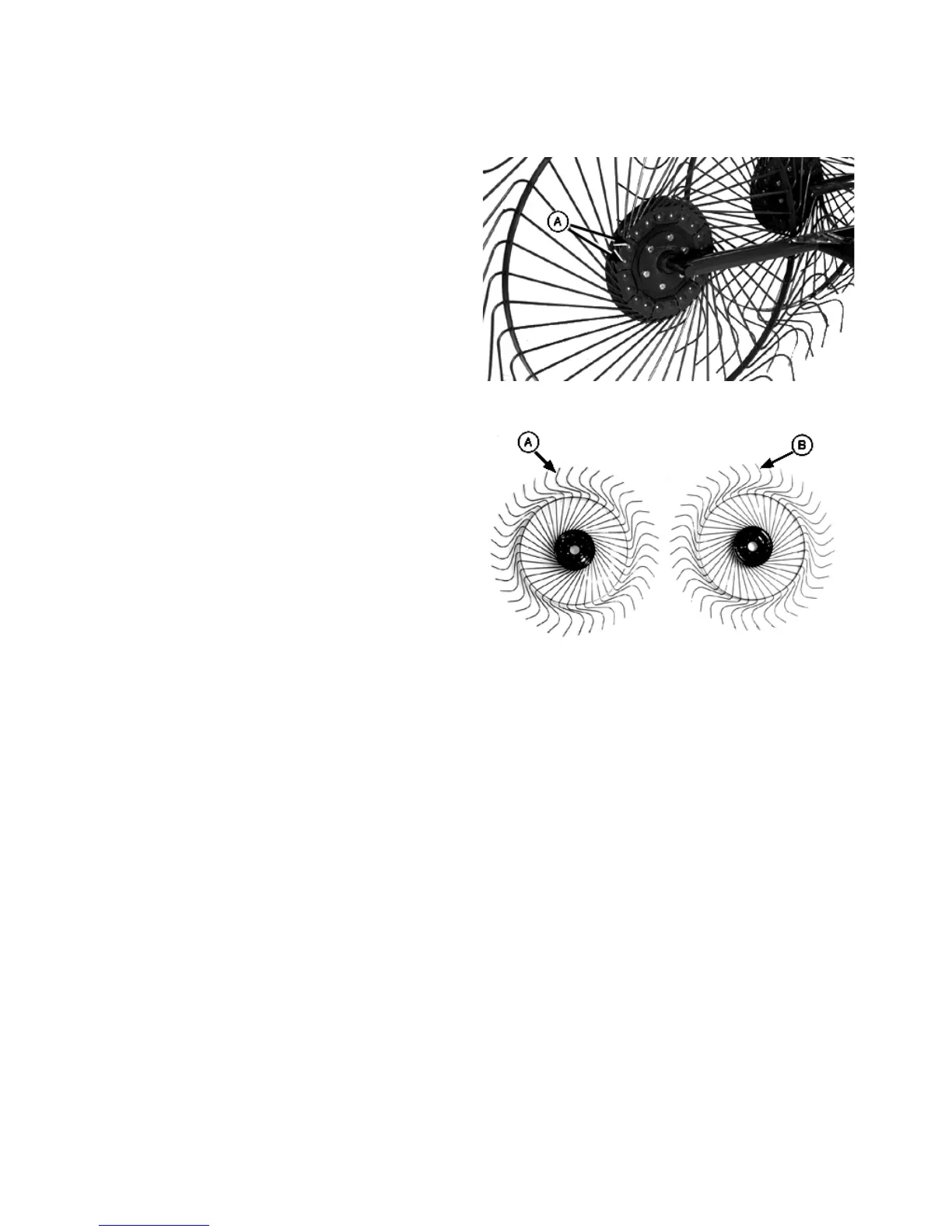

To replace a tine:
1. Remove two round-head bolts (A), nuts, clip and
tine.
2. Install new tine. Fasten with clip, round-head bolts
(A) and nuts.
IDENTIFYING LEFT-HAND AND RIGHT-
HAND RAKE WHEELS
To identify left-hand and right-hand rake wheels:
• Put rake wheels against a wall with tine mounting
clip nuts facing outward.
• If the last bend in the tines curve to a clockwise
direction, it is a left-hand rake wheel (A).
• If the tines curve in a counterclockwise direction, it is
a right-hand rake wheel (B).
A—Left-Hand Rake Wheel
B—Right-Hand Rake Wheel
