Frontier WR2214 User Manual

ASSEMBLY
57
B
A
C
D
E
F
G
B
A
C
D
B
A

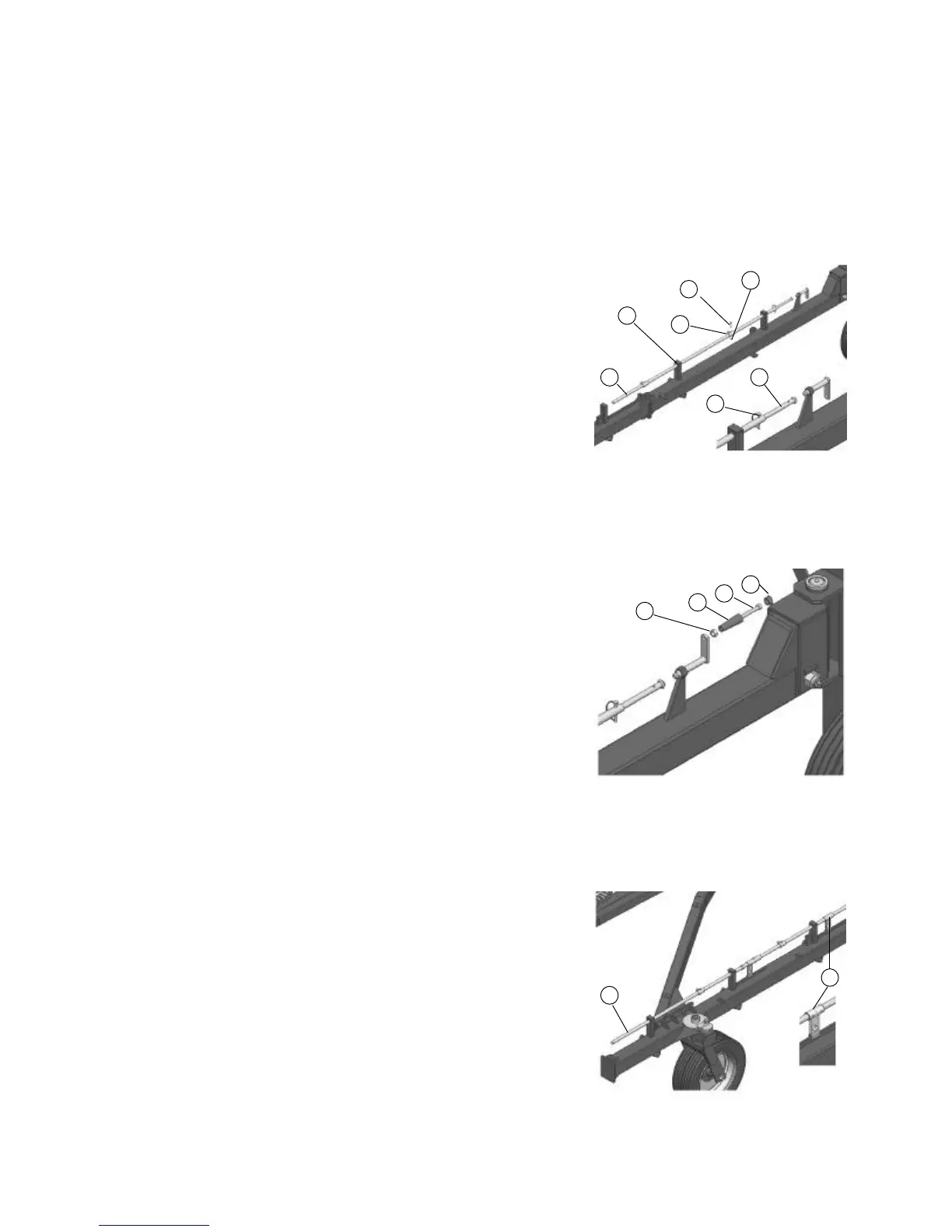

ASSEMBLY LIFT TUBES
1. Pass the 2000mm (79in) lift tube (A) through the
frame supports (F) and the spring attachments
(B). Secure the spring attachments with M8x50
cap screw (C) and nuts (G). Insert the stationary
pivot (D) and secure with pin lock (E).
A— Lift tube 2000mm
B— Frame supports
C— Screws M8x50
D— stationary pivot
E— Pin
F— Frame supports
2. Install plastic handle to lift crank. Fasten with
M12x90 cap screw (C) and M12 nut (A). Install
end cap (D) on handle.
A— Cover
B— Screw M12x90
C— Nut
D— End cap
3. Slide the center lift tube (A) through the supports
and attach it to the rear tube with bracket (B).
A— Lift tube
B— Bracket
