Frontier WR2214 User Manual

ASSEMBLY
56
B
A
C
D
B
A
B
A

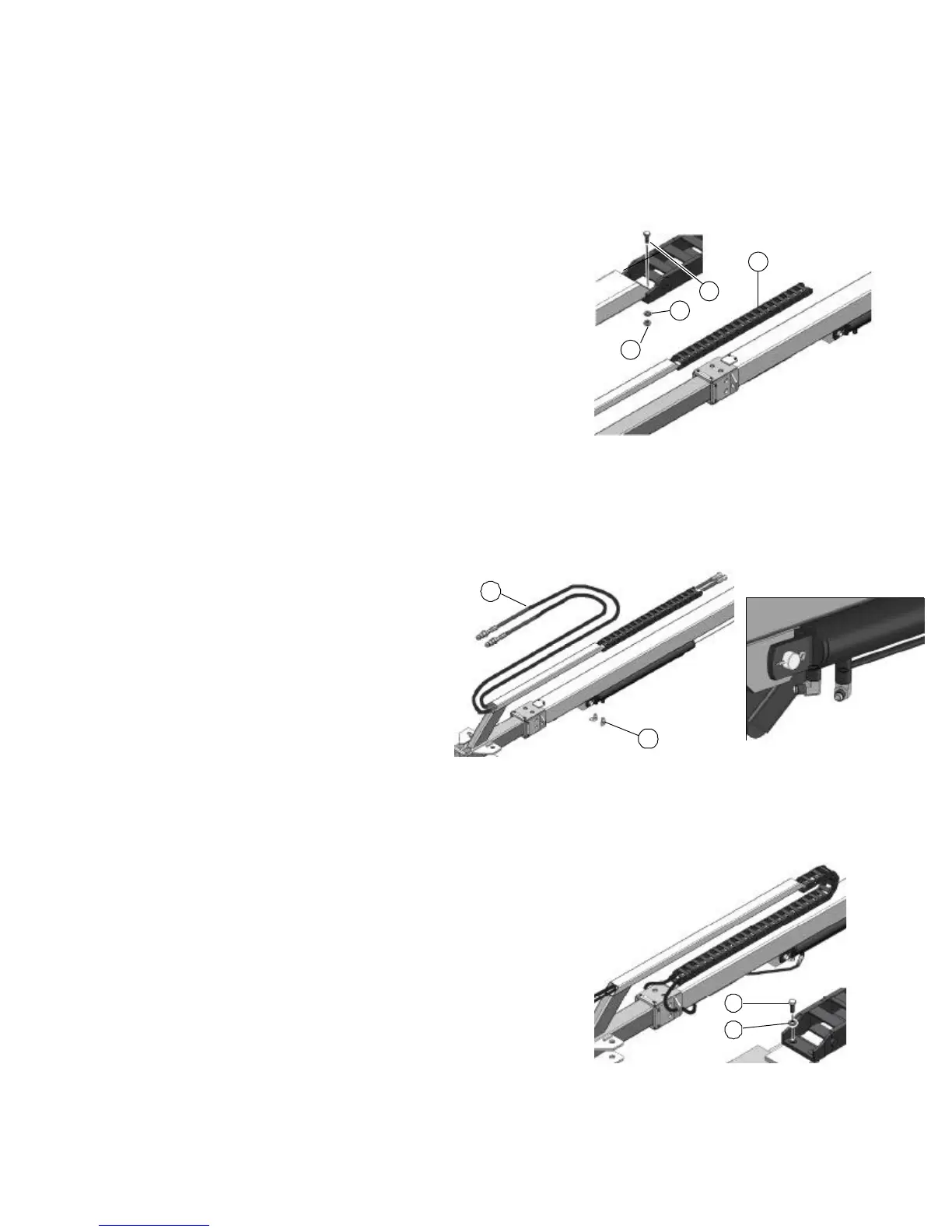

5. Connect the chain wiringharness/hydraulic hose
protective chain (A) to the drawbar tube as show
with M6x16 cap screws, 7X12X1.6 washer (C),
and nuts (D).
A— Chain carrying wires
B— Screws M6x16
C— Washer M6
D— Nuts M6
6. Assemble the 8500mm (335in) hydraulic hoses
(A) through the protective chain. Assemble the
fittings (B) in the open hydraulic cylinder.
A— Hydraulic hoses 8500mm
B— Fittings
7. Attach the protective chain to the rear drawbar
with M6x15 cap screw (A) and 7X12X1.6 washer
M6 (B). Connect the hoses to the hydraulic
cylinder. Route the hydraulic hoses as shown in
picture.
A— Screws M6x16
B— Washers M6
