ASSEMBLY
62
B
A
C
B
A
B
A
B
A

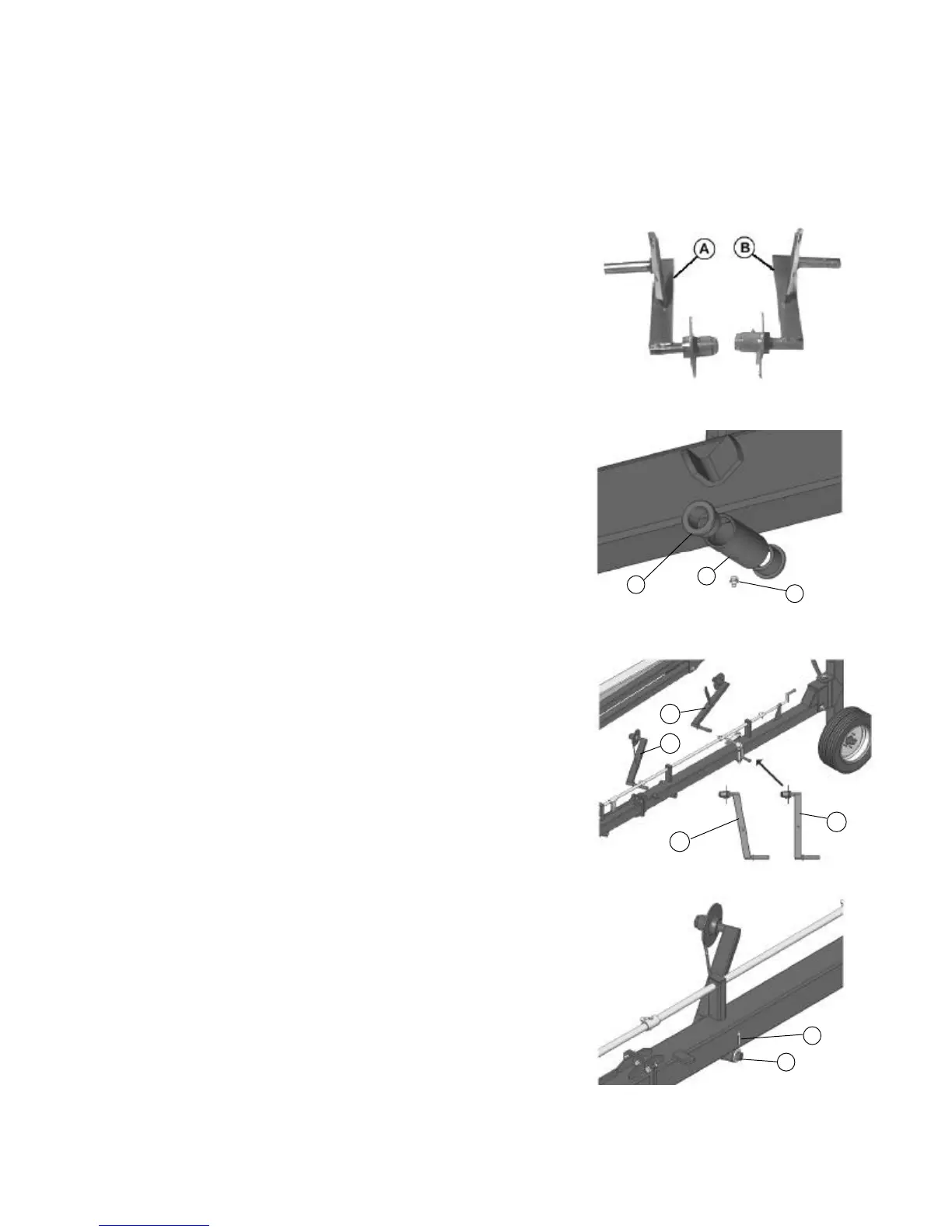

INSTALL RAKE WHEELS
1. To identify left-hand and right-hand wheel
support assemblies, lay the two assemblies
together as illustrated:
Left-hand wheel support (A) should have the
wheel hubs facing to the right.
Right-hand wheel support (B) should have
the wheel hubs facing to the left.
ALeft-Hand Wheel Support
BRight-Hand Wheel Support
2. Assemble the nylon bushing (A) into the steel
bushing (B) on the bottom side of the frame.
Also assemble the grease zerk (C).
A Nylon bushings
B Frame
C Grease zerks
3. The rear rake carrying arms are different than
the other arms on the machine. Assemble the
straight arms (A) in the rear most position and
the inclined arms (B) in all the other position.
A Straight arms
B Inclined arms
4. Fasten all the arms with 32x53x3mm
(1.25x2.10x.11in) washer (B) and 5x40mm
(20x1.57in) split pin (A).
A Split pin 5x40
B Washer 32x53x3
