Frontier WR2214 User Manual

ASSEMBLY
61

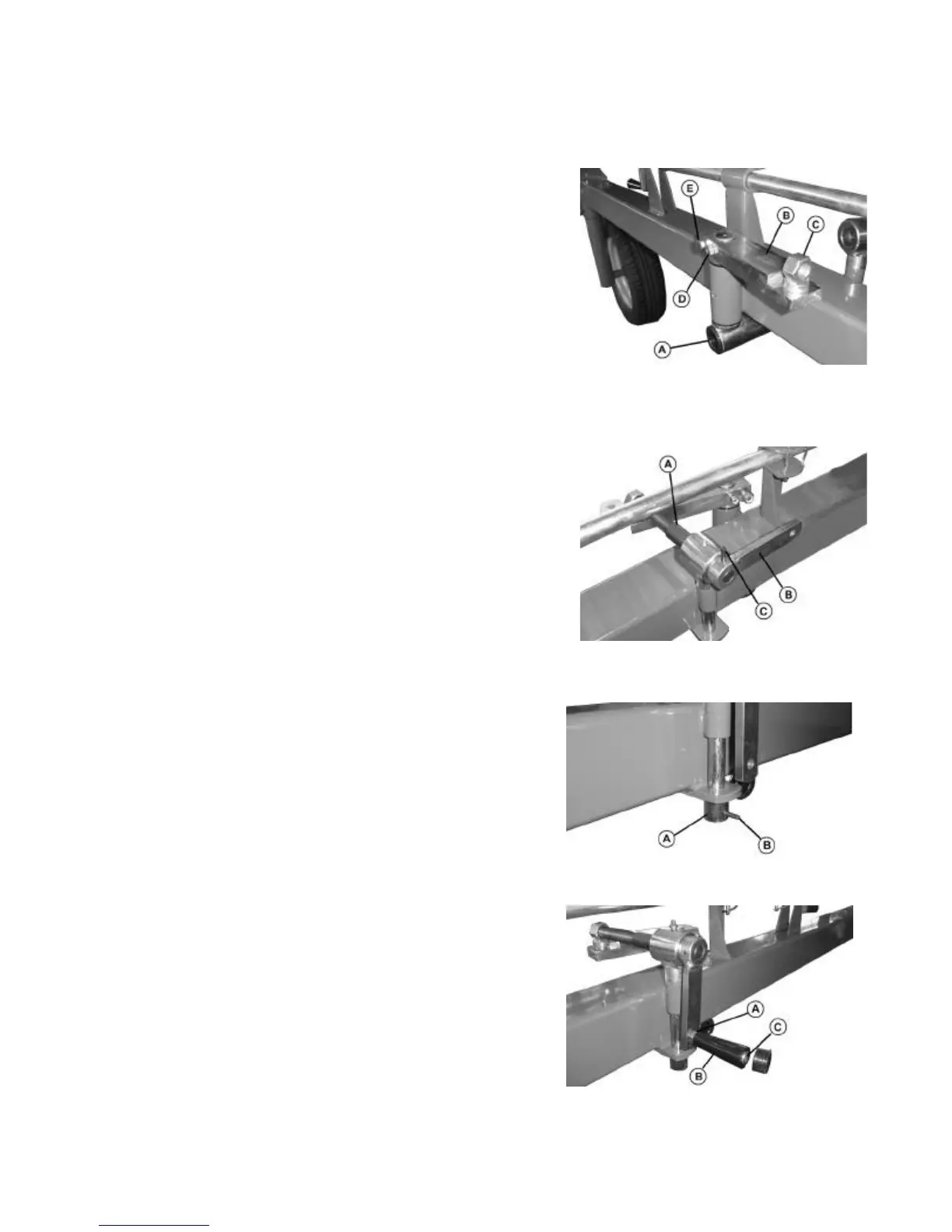

3. Position pin with bushings (A) as shown with
windrow adjuster blade (B) and M8 screw (D),
M12x70 screws (E) and nuts. Insert pivot with nut
(C).
A—Pin with busching nylon
B—Windrow adjuster blade
C—Pivot with nut
D—Screw TCE M8
E—Screw M12x70
4. Insert screw (A) and mount strap (B). Fasten with
roll pin 6x40 (C).
A—Pivot /Screw
B—Strap
C—Roll Pin 6x40
5. Position bushing (A) and fasten with roll pin. (B).
A—Bushing
B—Roll pin 5x30
6. Install plastic handle (B) to lift crank . Fasten with
socket-head cap screw (C) and nut (A) . Install
end cap on handle.
A—Nut M12
B—Handle
C—Screw M12x90
