LUBRICATION AND MAINTENANCE
PERFORM LUBRICATION AND MAINTENANCE
CAUTION: Do not clean, lubricate or
adjust machine while it is running.
• Park machine on level surface.
• Engage tractor parking brake and/or
place transmission in “Park.”
• Shut off tractor engine and remove key .
IMPORTANT: The recommended intervals are
based on normal conditions.
Severe or unusual conditions may
require shorter intervals.
Perform each lubrication and maintenance illustrated
in this section at the beginning of the season and at
the end of the season.
Clean lubrication fittings before lubricating. Replace
lost or broken fittings immediately. If a new fitting fails
to take grease, remove and check for failure of
adjoining parts.

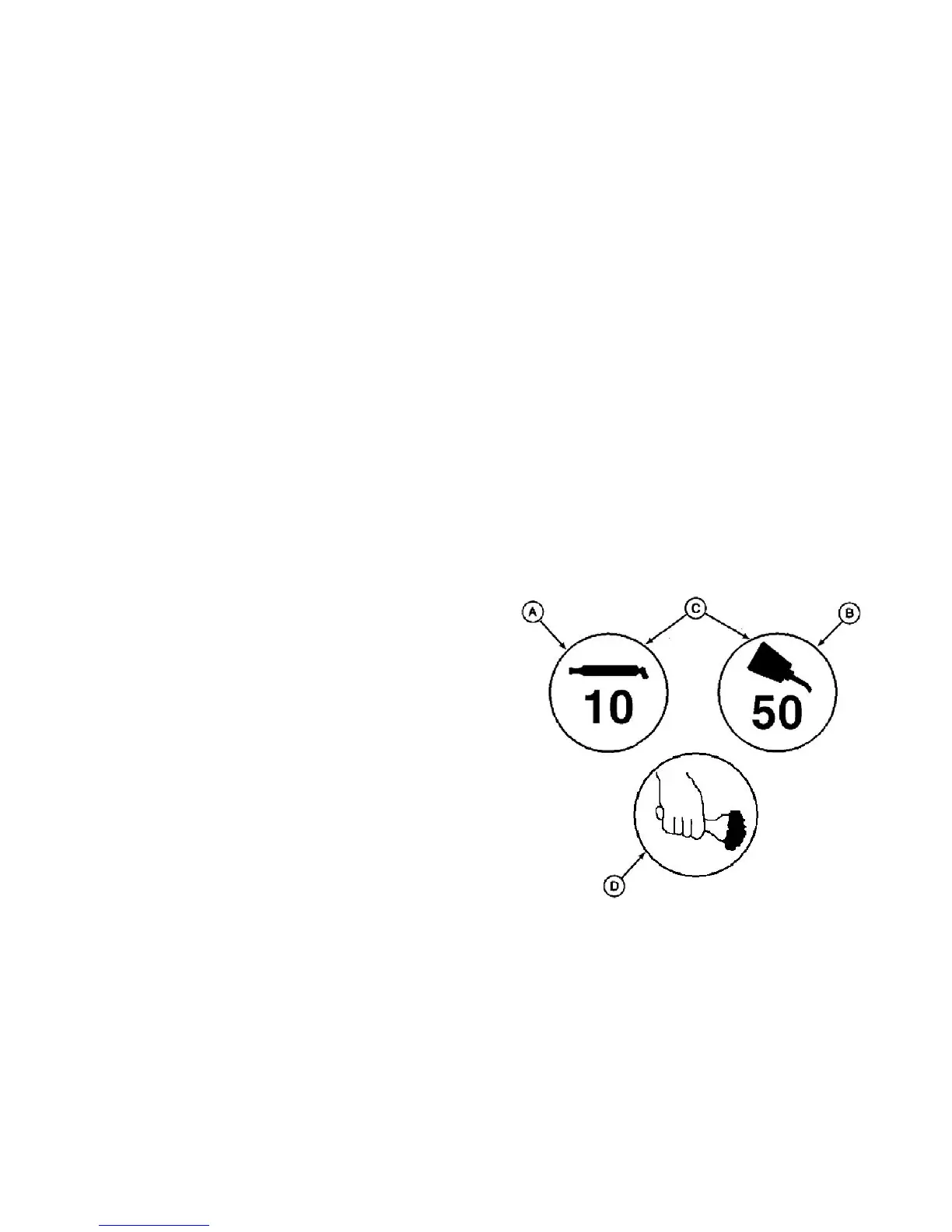

OBSERVE LUBRICATION SYMBOLS
Follow hourly (C) intervals on grease symbols (A) and
oil symbols (B).
GREASE SYMBOL (A) (D) Lubricate with High Temp
EP grease or equivalent SAE multipurpose grease
(unless otherwise specified) at hourly intervals
indicated on the symbols.
OIL SYMBOL (B) Lubricate with SAE 30 or heavier oil
at hourly intervals indicated on the symbols.
Lubrication Symbols
To Next Page
