Frontier WR2214 User Manual

ASSEMBLY
59
B
A
C
D
B
A
C
D
G
E
F
B A
C
D
E
F
E
D

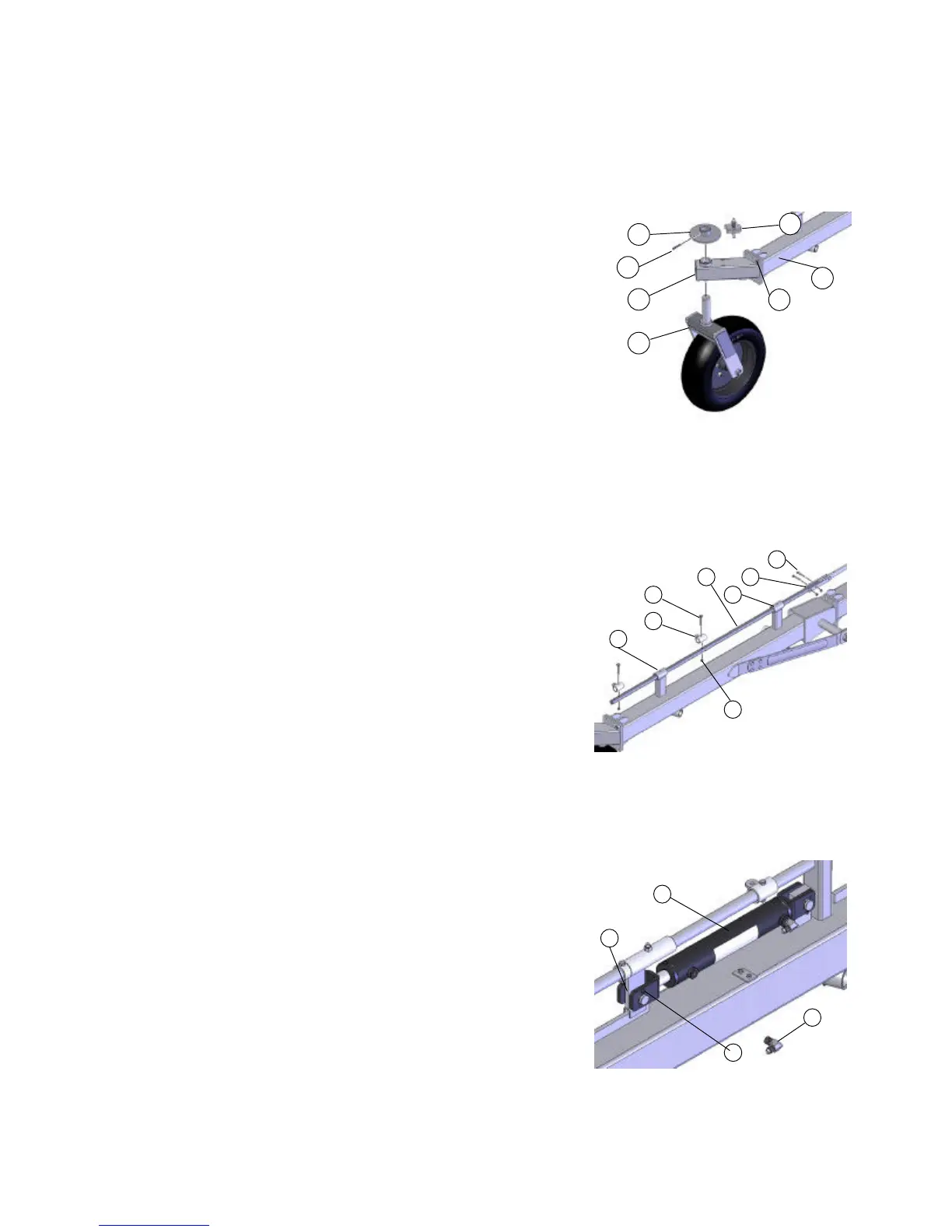

2. For 14 wheel rake – mount the wheel support (A)
with M14x40 cap screw (E) and nuts (F). Slide the
pivoting fork (B) into wheel support (A). Assemble
the brake disc (C) and the brake assembly (D) as
shown. Fasten with the 10mmx70mm
(39inx2.75in) Rollpin.
A— Wheel support
B— Pivoting fork
C— Disc brake
D— Brake
E— Screw M14x40
F— Nuts M14
G— Rollpin
3. For 14 wheel rake – Assemble the 1740mm
(35.4in) long lift tube through supports (E) with
connector (A) and bushing (C). Fasten connector
(A) and bushing (C) with M8x50 cap screws (D)
and nuts (F).
A— Joint
B— Lift tube L=1740 mm
C— Bushing
D— Screw M8x50
E— Support
F— Nuts
ASSEMBLY LIFT CYLINDERS
1. Install the cylinder (A) to regulate the lifting of the
rake wheels with pins (c) and spring pins (D).
Install the 90° fittings (B) onto the cylinder.
A— Cylinder
B— Fittings
C— Pins
D— Springpins
