Frontier WR2214 - Assembly Extension Frames

ASSEMBLY
58
B
A
C
B
A
C
D
E
B
A
C
D
E
F
G
I
H

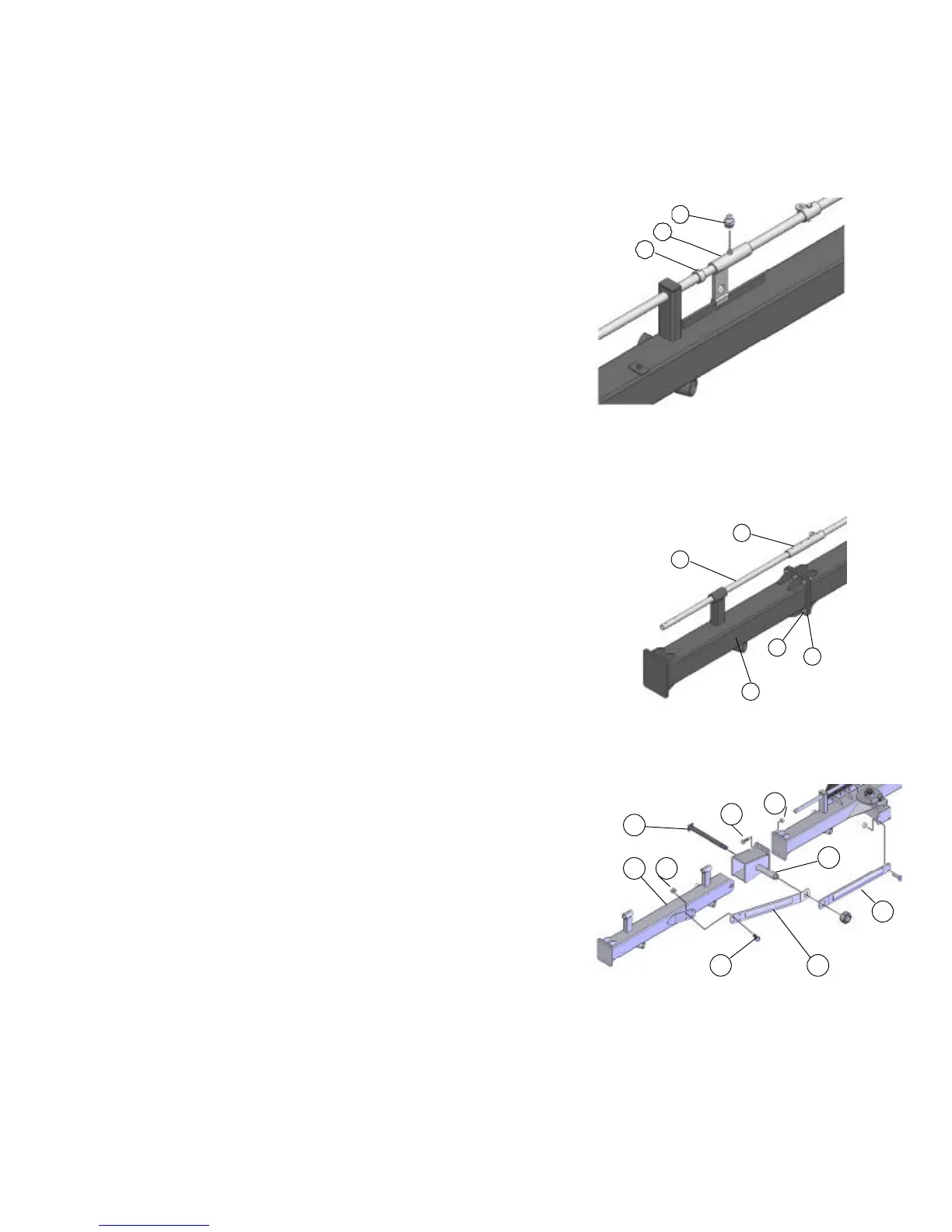

4. The ring (A) must be fixed on the lift tube with the
appropriate M8x50 cap srew. The guide (B) must
be free to slide along the tube. Install grease
zerks (C)
A— Ring
B— Guide
C— Grease zerk
ASSEMBLY EXTENSION FRAMES (12
WHEEL ONLY)
1. For 12 wheel rake - assemble the frame (A) with
M14x40 cap screws(B) and lock nuts(E). Insert
the 900mm (35.4in) lift tube (C) and join with the
coupler (D).
A— Frame
B— Screws M14x40
C— Lift tube 900mm
D— Coupler
E— Lock nut
ASSEMBLY EXTENSION FRAMES (14
WHEEL ONLY)
1. For 14 wheel rake – attach the bracket (A) with
M14x40 cap screws (F) and nuts (G). Insert the
frame (B) into the bracket (A) and lock with the
380mm M30 pin (C). Mount the reinforcement
straps (D) as shown and secure with m30 nut (H)
and M12x30 cap screws (E) and nuts (I).
A— Bracket
B— Frame
C— Pin
D— Reinforcement strap
E— Screws M12x30
F— Screws M14x40
G— Nut M14
H— Nut M30
I— Nut M12
