Frontier WR2214 - Install SMV Emblem

ASSEMBLY
64
B
A
C
B
A
C
D E
B
A
C
D
F
E

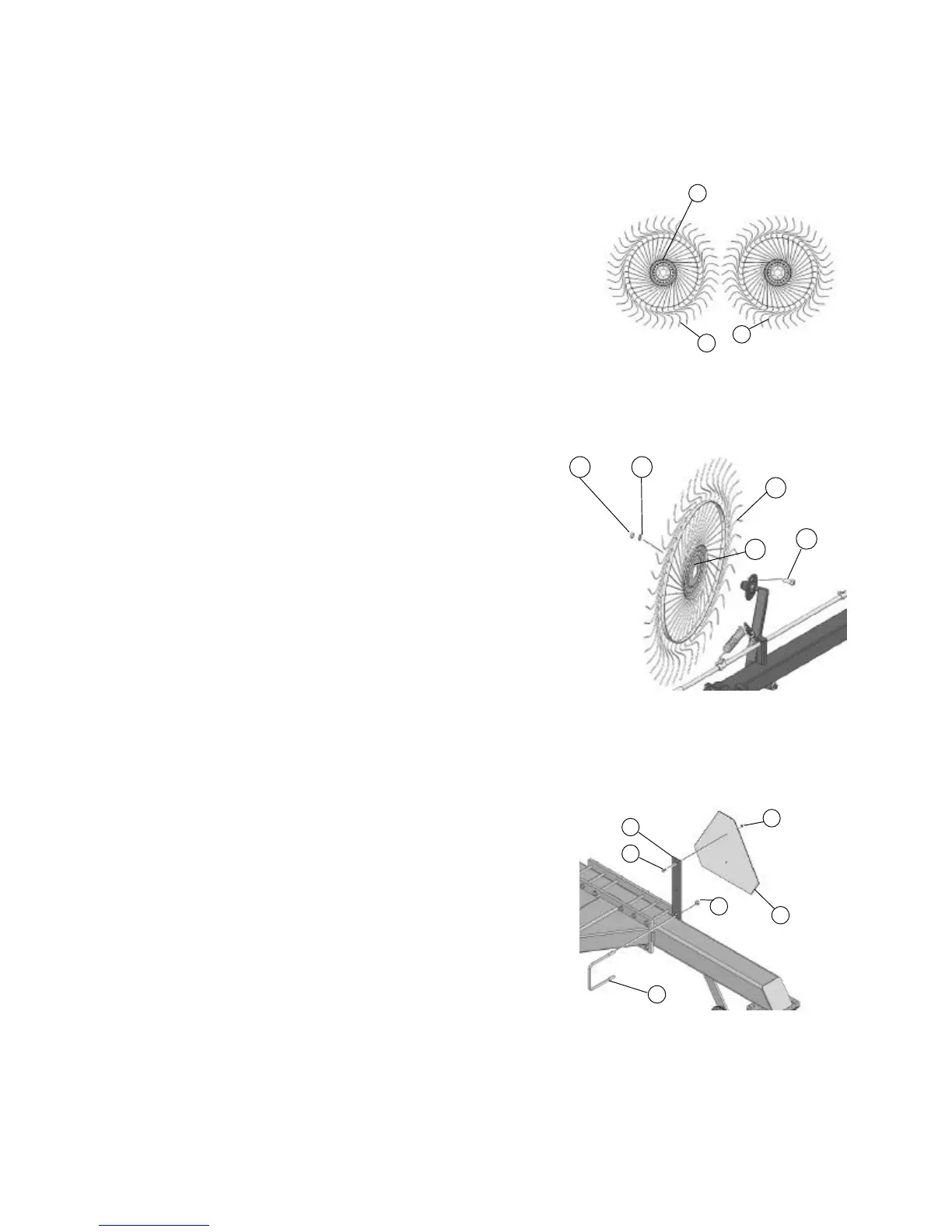

8. With the flange (C) of the rake wheel facing
you divide the left hand rake wheels (A) and
the right hand rake wheels (B).
A— Left hand rake wheels
B— Right hand rake wheels
C— Flange
9. The right hand or left hand side is determined
by looking at the rake from the rear. Assemble
the left hand rake wheel (A) with the flange
(C) against the hub and fasten with M10x25
cap screw (B), 10.5X21X2 washer (D), and
nuts M10 (E).
A— Left hand rake wheel
B— Screws M10x25
C— Flange
C— Washer 10.5X21X2
C— Nut M10
INSTALL SMV EMBLEM
1. Fasten the slow moving vehicle (SMV) bracket (A)
with M12x160x120mm U-bolt (B) and nuts (E).
Install SMV emblem (C) with M6x16 cap screw
(D) and nuts (F).
A— SMV Bracket
B— U-Bolt
C—SMV Emblem
D— M6x16 Screw
E— M12 Screw
F— M6 Nut
