ASSEMBLY
48
B
A
C
B
A
C
A
UNCRATING MACHINE
Select an area that has adequate room for parts
layout and machine assembly.
Begin assembly by removing all components from the
crate. Lay components out individually for ease of
locating during assembly.
PRE-ASSEMBLY
A—Long pads
B—Short pads
C—Sliding element

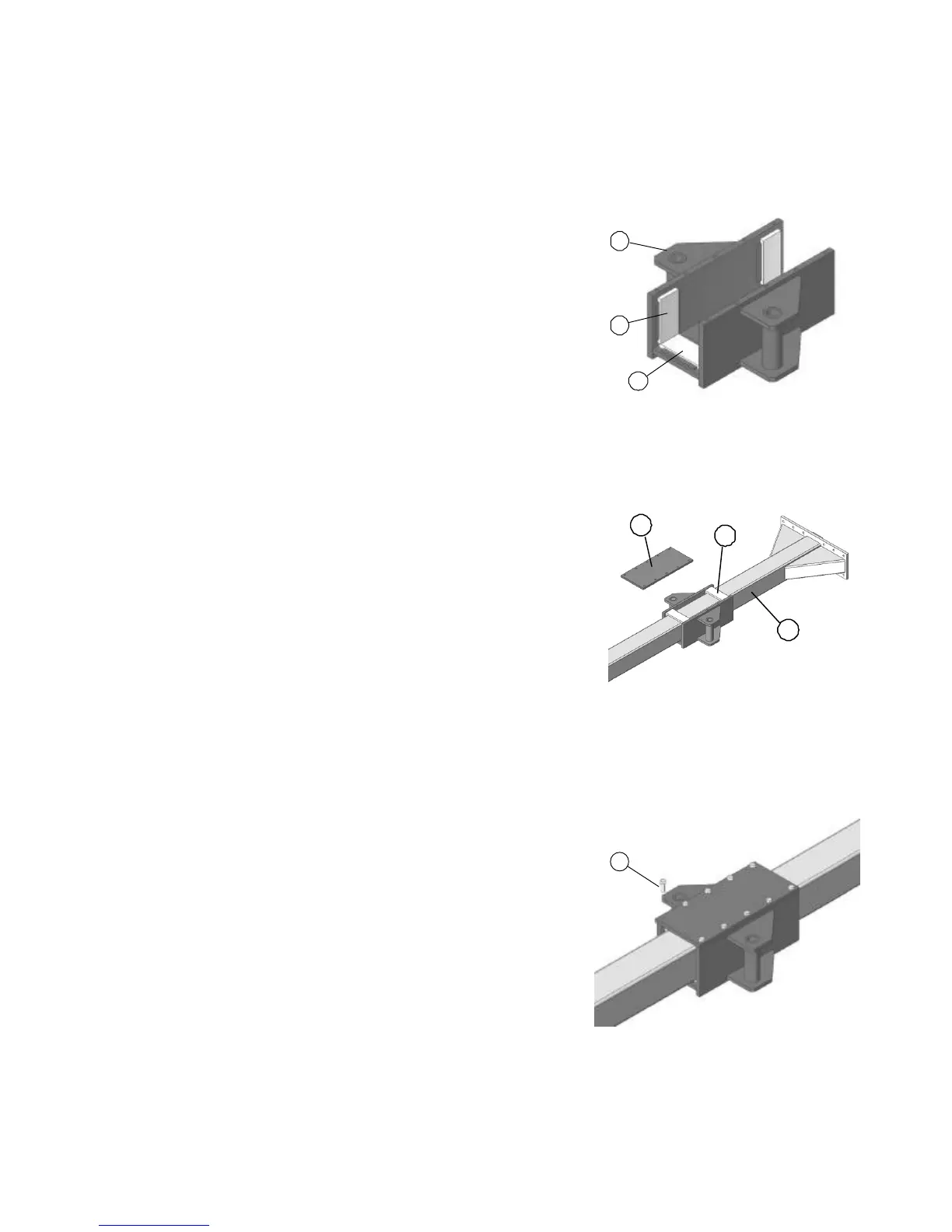

1. Assemble the long pads (A) and the short
pads (B) in the correct position within the
sliding element (C) as indicated in the drawing.
2.
Position the sliding element on the rear drawbar
(A) Assemble the upper pads (B) and then the
sliding cover (C).
A— Rear drawbar
B— Upper pads
C— Sliding cover
3. Fasten the cover with M10x30 cap screw (A).
A— Screws M10x30
