ASSEMBLY
49
B
A
B
A
C
D
E
F
B
A

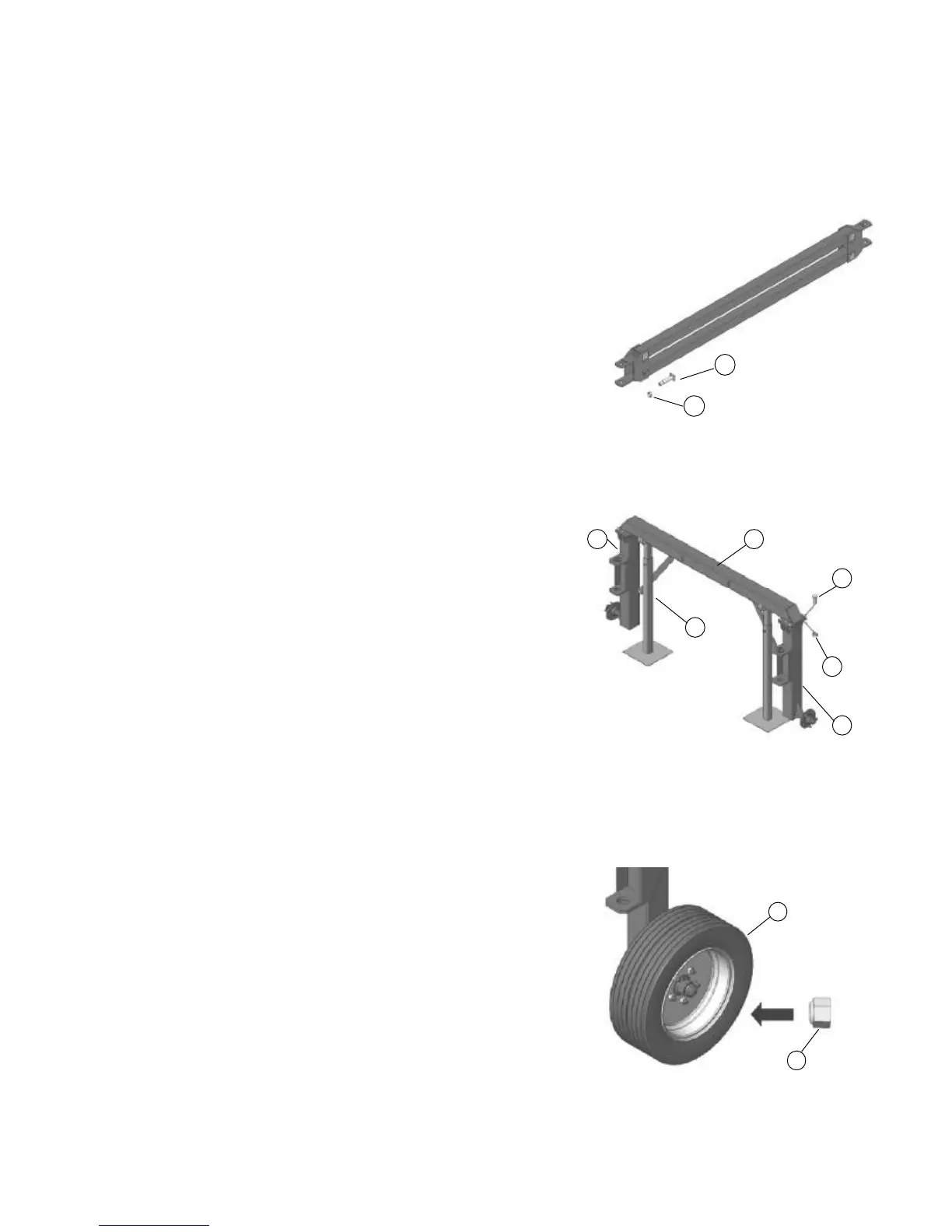

4. Assemble the pantograph arms with 4 M24x95
pivots (A) and M24 locknuts (B).
A— Pivots M24 95 mm
B—M24 lock nuts
5. Position the rear beam (A) on 2 supports (B)
which are about 1.30m (4’4”) tall. Connect the
right hand (E) and left hand (F) rear wheel
supports with M14x40 cap screws (C) and M14
lock nuts (D).
A— Rear beam
B— Support
C— Screws M14x40
D— Lock nuts M14
6. Assemble the wheels (A) to the hubs with M16
self-centering nuts (B).
Important: Install the nuts as indicated
A— Wheels
B— Nuts M16
