ASSEMBLY
60
B
A
C
D
A

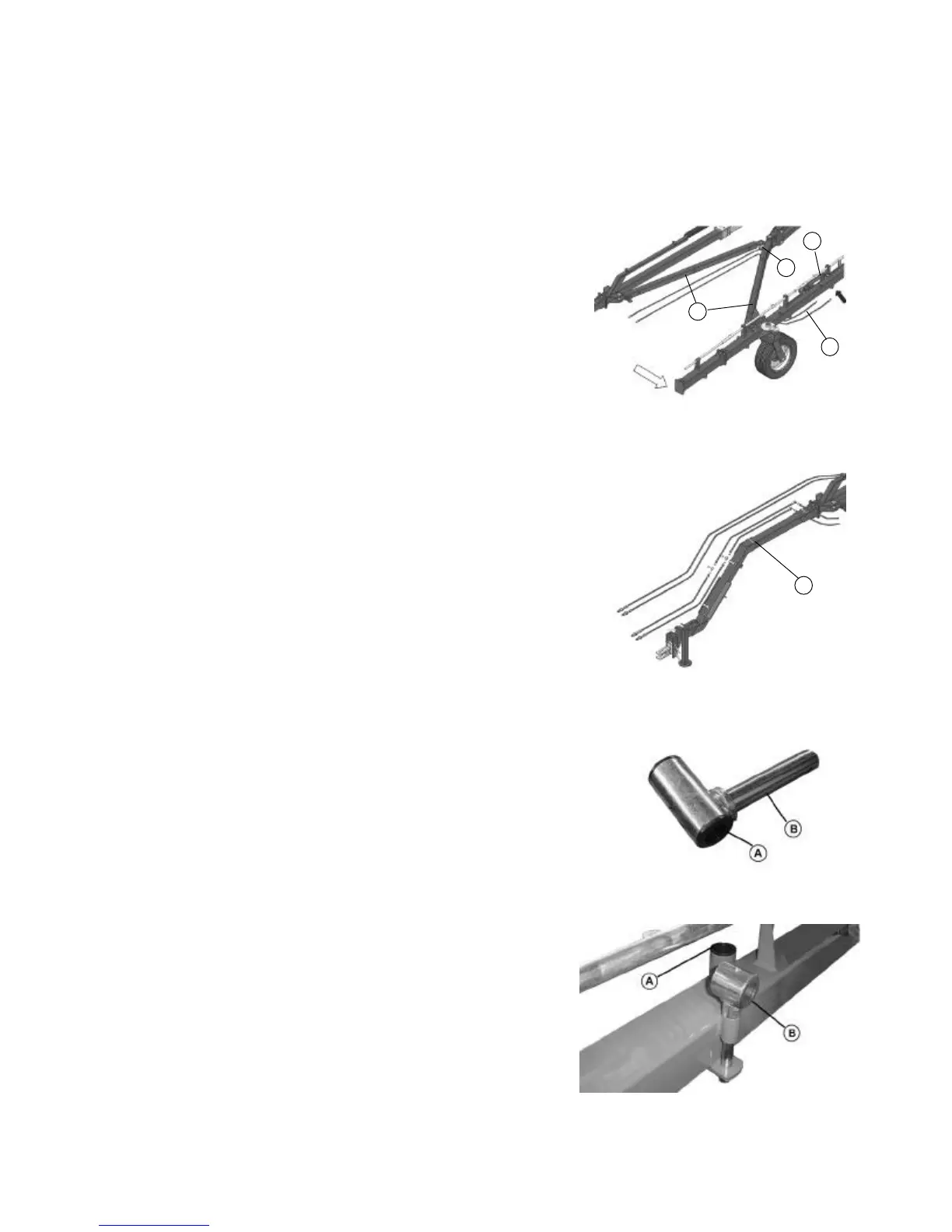

2. Slightly open machine. Connect the 5600mm long
(220in) long hoses (A) to the cylinder (B) and
fasten along the opening arm with the hose
clamps (C) on both sides. At point (D), leave the
hoses rather loose.
A— Hydraulic hoses 5600 mm
B— Cylinder
C— Hose clamps
D— Point
3. Connect the 4 hoses along the drawbar with
clamps (A) .
A— Clamps
ASSEMBLY ADJUSTABLE WINDROW
WIDTH RAKE ARM
1. Insert nylon bushing (A) inside pin with welded
bushing (B).
A—Busching nylon
B—Pin with welded bushing
2. Position nylon bushings (A) as shown and insert
pin (B).
A—Busching nylon
B—Pin
