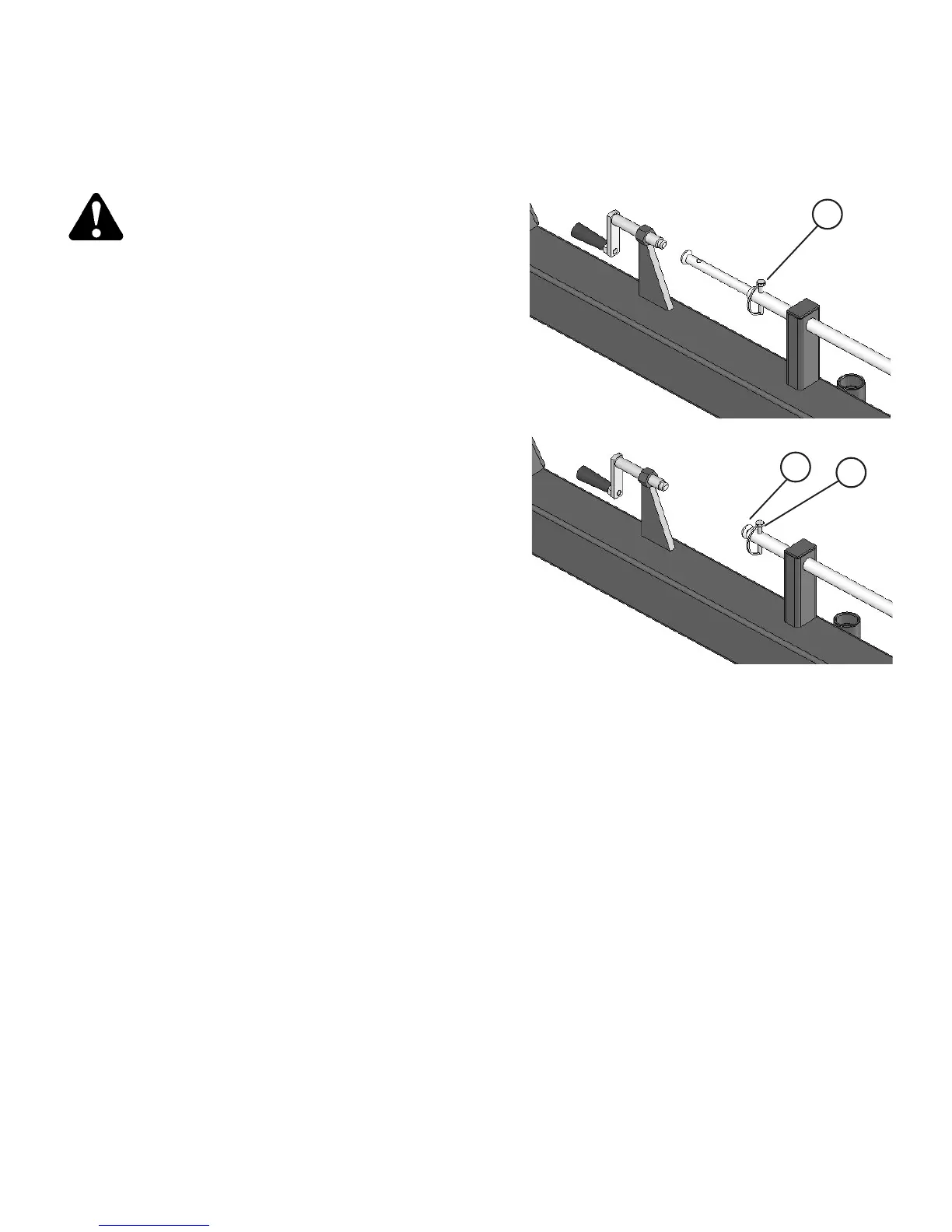

OPERATING THE RAKE
A—Spring-Clip Pin
B—Washer
C—Operating Position
CAUTION: Avoid serious crushing injury when
opening or closing the rake. Make sure
bystanders are clear of rake and area is free
from obstructions before opening or closing
rake.
IMPORTANT: Do not replace hydraulic cylinder with a
different size hydraulic cylinder, or
damage to opening system may occur.
4. Move rake wheel lift rod to operating position:
• Raise rake wheels to maximum height.
• Remove spring-clip pin (A) from transport position.
• Push short pipe section into end of rear pipe. Align
the hole nearest flared washer (B) with the hole in
rear pipe.
• Install spring clip in operating position (C).
• Open rake to operating width.
• Lower rake wheels.
5. Check raking wheel ground pressure. Adjust as
required.
27
B
A
C
