ASSEMBLY
69
B
A
D
C
E
B
A
D
C

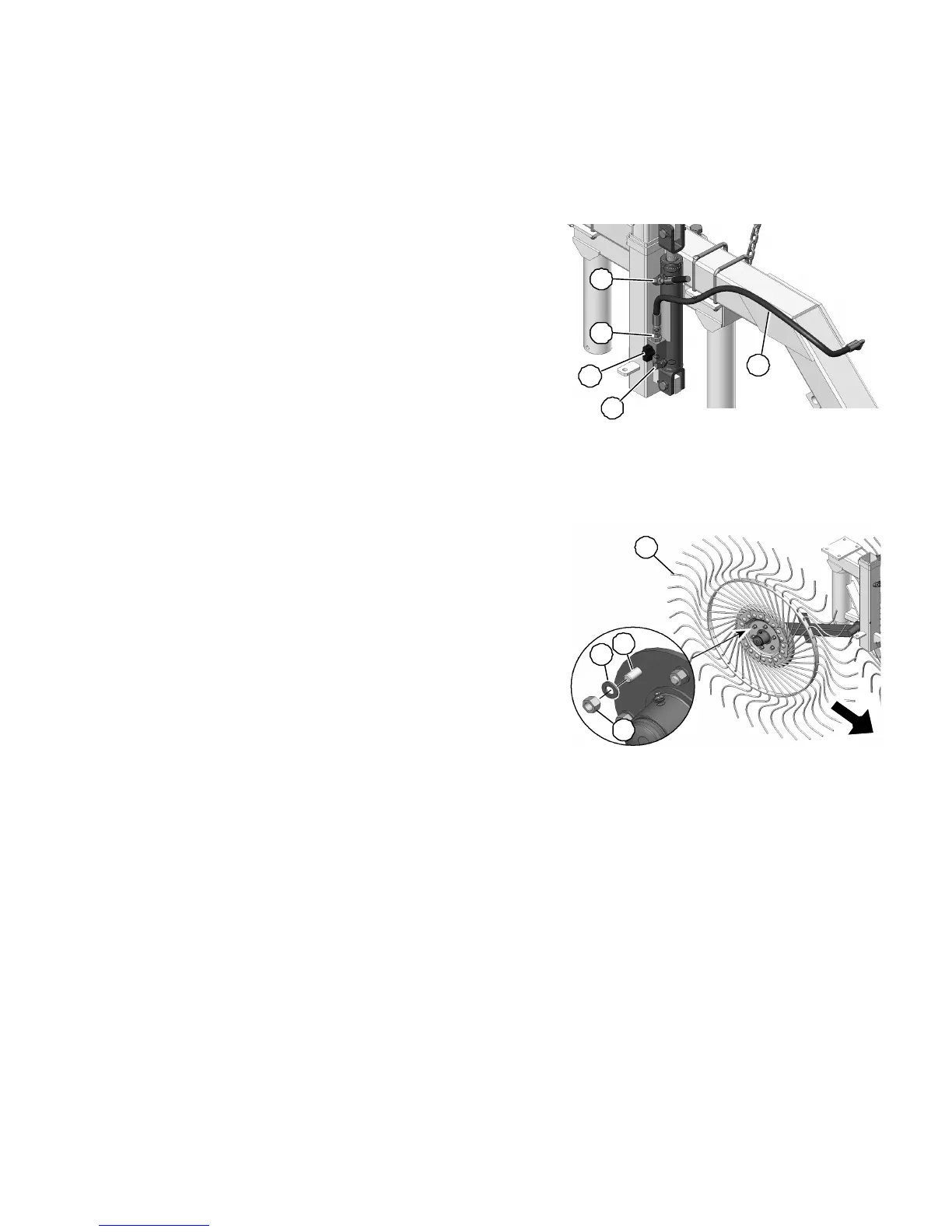

4. Install the 90° elbow adaptor (A), valve (B), fitting
(C) in the lower port of the cylinder. Install the 90°
elbow fitting (D) in the upper port of the cylinder.
Connect the 900mm (35in) long hydraulic hoses
(E) to the cylinder as shown. The opposite ends of
the hoses (90°) must be connected to the rake
wheels’ hydraulic lift circuit.
5. Mount the smaller diameter rake wheels (A) as
shown and fasten with M10x25 cap screws (B),
10.5X21X2 washers (C) and nuts (D).
A— 90° Elbow adapter 3/8”NPT-3/8”NPT
B— Valve
C— Fitting 3/8”NPT-9/16-18JIC
D— 90° Elbow adapter 3/8”NPT-9/16-18JIC
E— Hose L=900 mm
A— Center Rake Wheel R.H.
B— Screw M10x25
C— Washer 10.5X21X2
D— Nut
