CHAPTER 12: OIL FILTRATION (Surface Ship Only)
12-2
7. Remove screen from filter pan. Fig: 12-4
8. Clean filter pan. Fig: 12-5
9. Replace screen.
10. Replace filter pad or paper.
11. Replace hold-down ring.
12. Replace crumb screen. Fig: 12-8

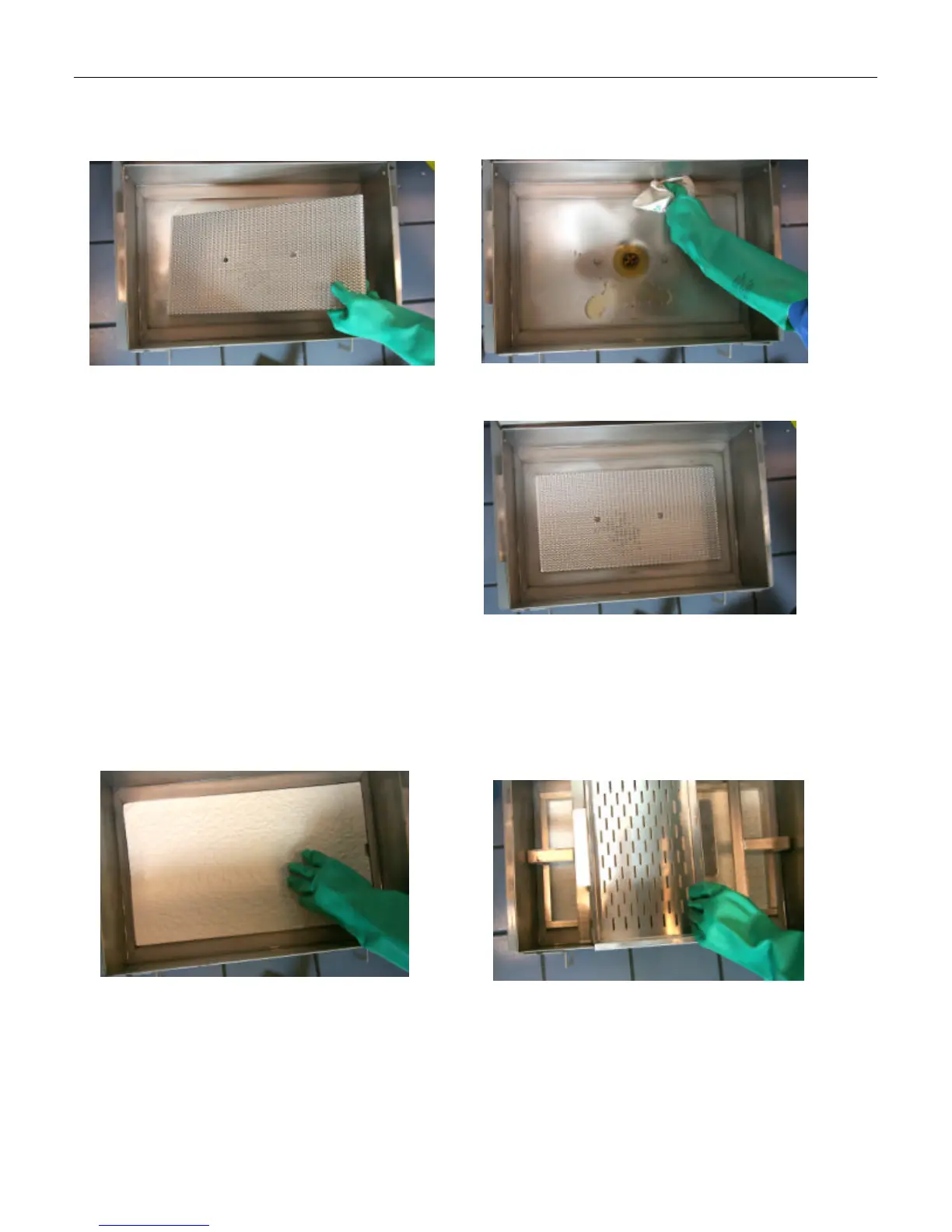

Fig: 12-5
Clean pan.
Fig: 12-4
Remove screen from filter pan.
Fig: 12-6
Replace screen. It’s imperative the screen goes
in the pan first. It goes under the filter paper or
pad. The filter paper or pad must go on top.
screen.
Fig: 12-7
The filter paper goes on top of the screen.
Add 8-ounces of filter powder to the top of
the filter paper. Do not use filter powder
with filter pads.
Fig: 12-8
The hold-down ring is placed on the filter
paper and the crumb screen is put in place.
