10.7 Replace Frypot
1. If the fryer has a built-in oil filtration system, remove all the plumbing from the frypot. This
includes both oil return and drain fittings.
2. Perform Section 10.6 steps 1-11
3. Remove elements.
4. Remove hi-limit.
5. Apply LocTite PST 567 sealant to the threads of the
existing or new high-limit thermostat.
6. Screw the high-limit into the frypot and tighten
securely. DO NOT OVERTIGHTEN!
7. Install elements.
8. Rest frypot on cabinet sideways, allowing wires to hang
near the back of unit.
9. Insert the high-limit wires into the holes in the connector, making certain to insert the pins into the
same two holes from which the old high -limit wires were removed.
10. Position frypot in cabinet
11. Reconnect the wire harnesses to contactor box.
12. Restore contactor box to original location.
13. NOTE: Apply LocTite PST 567 sealant to all pipe connections prior to assembly.
14. Replace drain elbow.
15. Replace oil return lines on units with built-in filtration.
16. Replace controller and plug into 15-pin socket on front of contactor box.
17. Install the rear element cover.
18. Boil out new frypot as described on page 6.1
19. Return to service

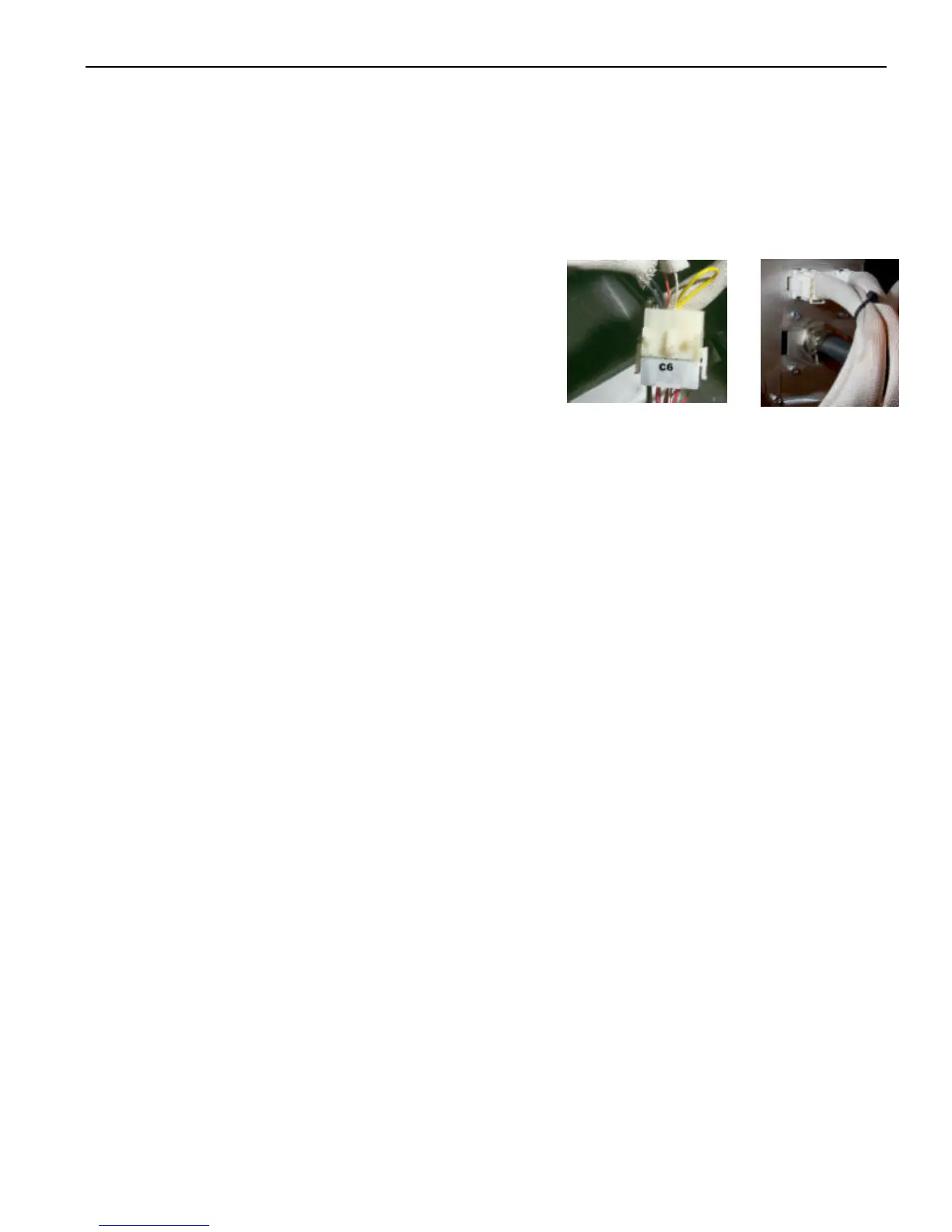

Fig: 10-20
Fig: 10-21
