8-1
Chapter 8 SPECIFICATIONS

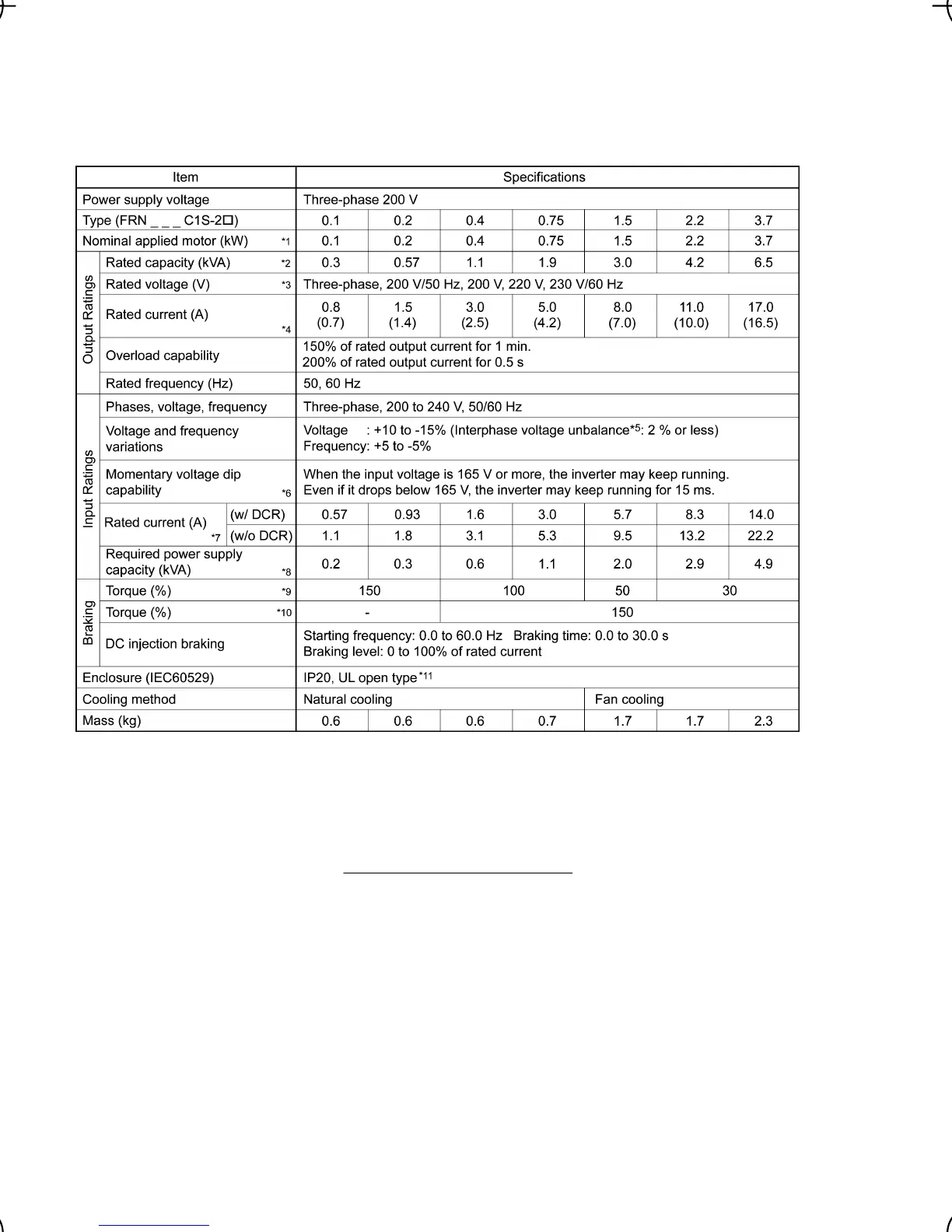

8.1 Standard Models
8.1.1 Three-phase 200 V class series
*1 Fuji 4-pole standard motors
*2 The rated capacity is for 220 V output voltage.
*3 Output voltages cannot exceed the power supply voltage.
*4 Use the inverter at the current given in ( ) or below when the carrier frequency command is higher
than 4 kHz (
f 26
=
4
to
15
) or the ambient temperature is 40°C or higher.
*5
(5.2.3))3-61800 IEC to (Refer 67
(V)voltage average phase-Three
(V)eMin.voltag-(V)eMax.voltag
= (%)unbalancevoltageInterphase ×
If this value is 2 to 3 %, use an AC reactor (ACR).
*6 Tested under the standard load condition (85% load for applicable motor rating).
*7 Calculated under Fuji-specified conditions.
*8 Indicates the value when using a DC reactor (option).
*9 Average braking torque obtained with the AVR control off (
f 05
=
0
). (Varies according to the
efficiency of the motor.)
*10 Average braking torque obtained by use of an external braking resistor (standard type available as
option).
*11 To make FRENIC-Mini compliant with category TYPE1 of the UL Standard (or NEMA1), an optional
NEMA1 kit is required. Note that the TYPE1-compliant FRENIC-Mini should be used in the ambient
temperature range from -10 to +40°C.
Note: A box () in the above table replaces A, C, E, or J depending on the shipping destination.
