Fuji Electric Frenic-Mini - External Dimensions; Standard Models and Models Available on Order (Braking Resistor Built-In Type)

8-10

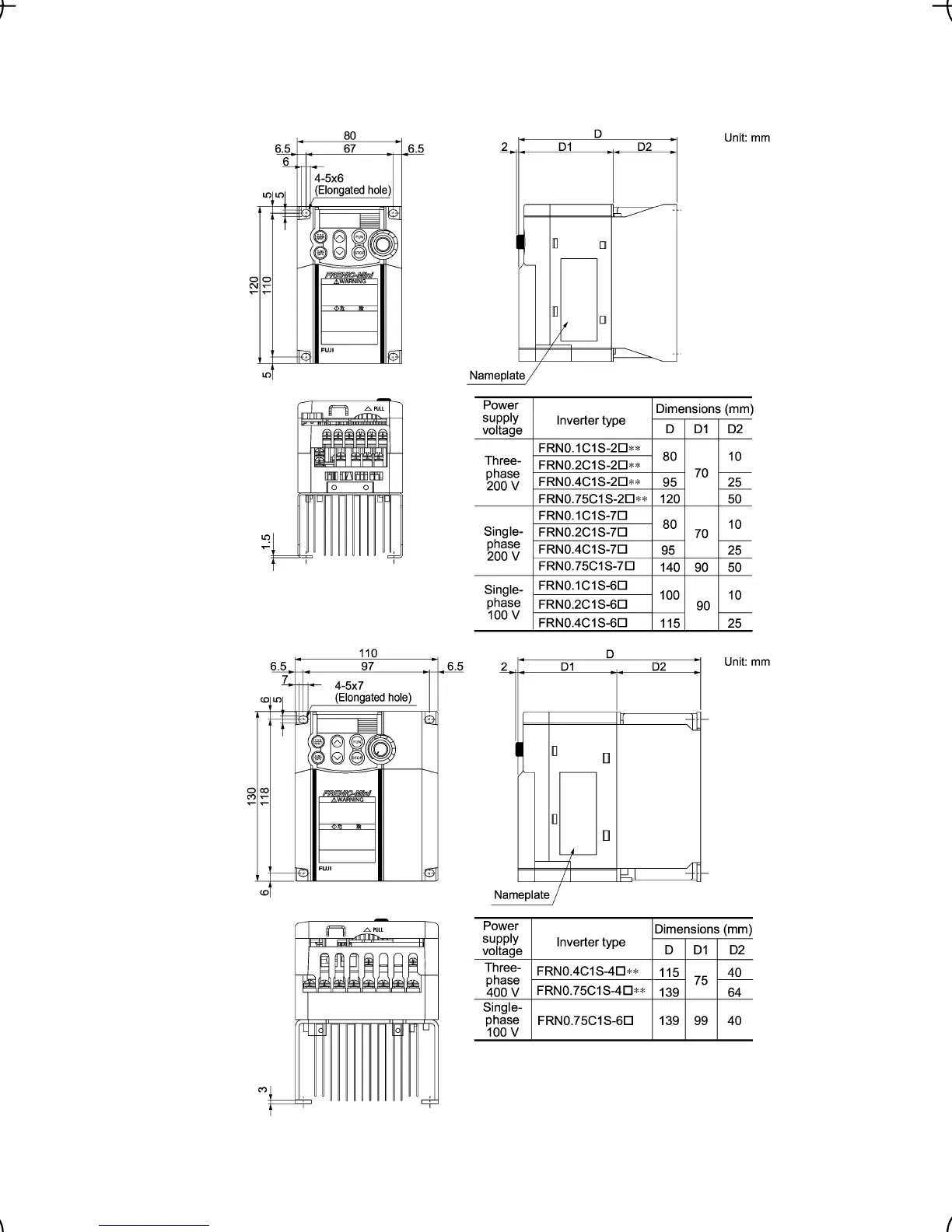

8.5 External Dimensions
8.5.1 Standard models and models available on order (braking resistor built-in type)
Note 1) A box () in the above table replaces A, C, E, or J depending on the shipping destination.
2) Asterisks (∗∗) in the above table replace numbers which denote the following:
21: Braking resistor built-in type, None: Standard.
