Chapter 2 Description of Functions
73
2.3.3.3. Historical trace
Click [Menu] -> [Trace] -> [Historical trace] or select Simple Menu and click [Simple Menu] ->
[Historical trace] . Then, [Select Edit Data] dialog will open.

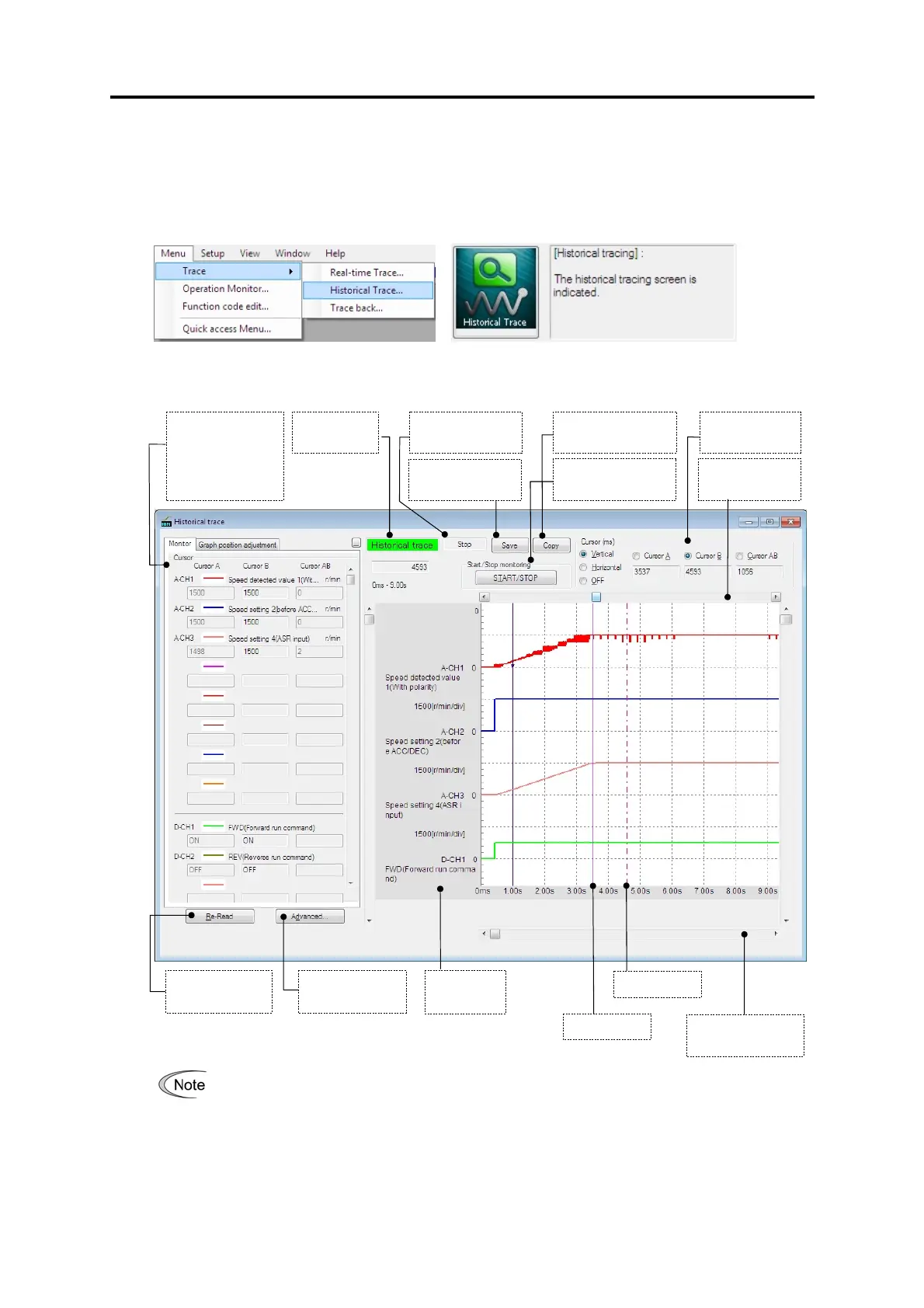

The following shows the Historical trace window.
･ Set the historical trace always trigger.
Refer to the trigger setting the analog channels or the digital channels of the
"2.3.3.9 Advanced".
Sub window
･Monitor
･Graph position
adjustment
Cursor
position
Trace type
display
Save trace data
Waveform monitor
hardcopy
Trace operation
status display
Trace start/stop
Cursor
movement bar
Waveform
screen scroll bar
Cursor B
Cursor A
Waveform
monitor
Detail setting of
each channel
Re-read
waveform data
