[ 5 ] Other settings (including sampling time setting)
In the Trace Back operation, you can change the sampling time only.

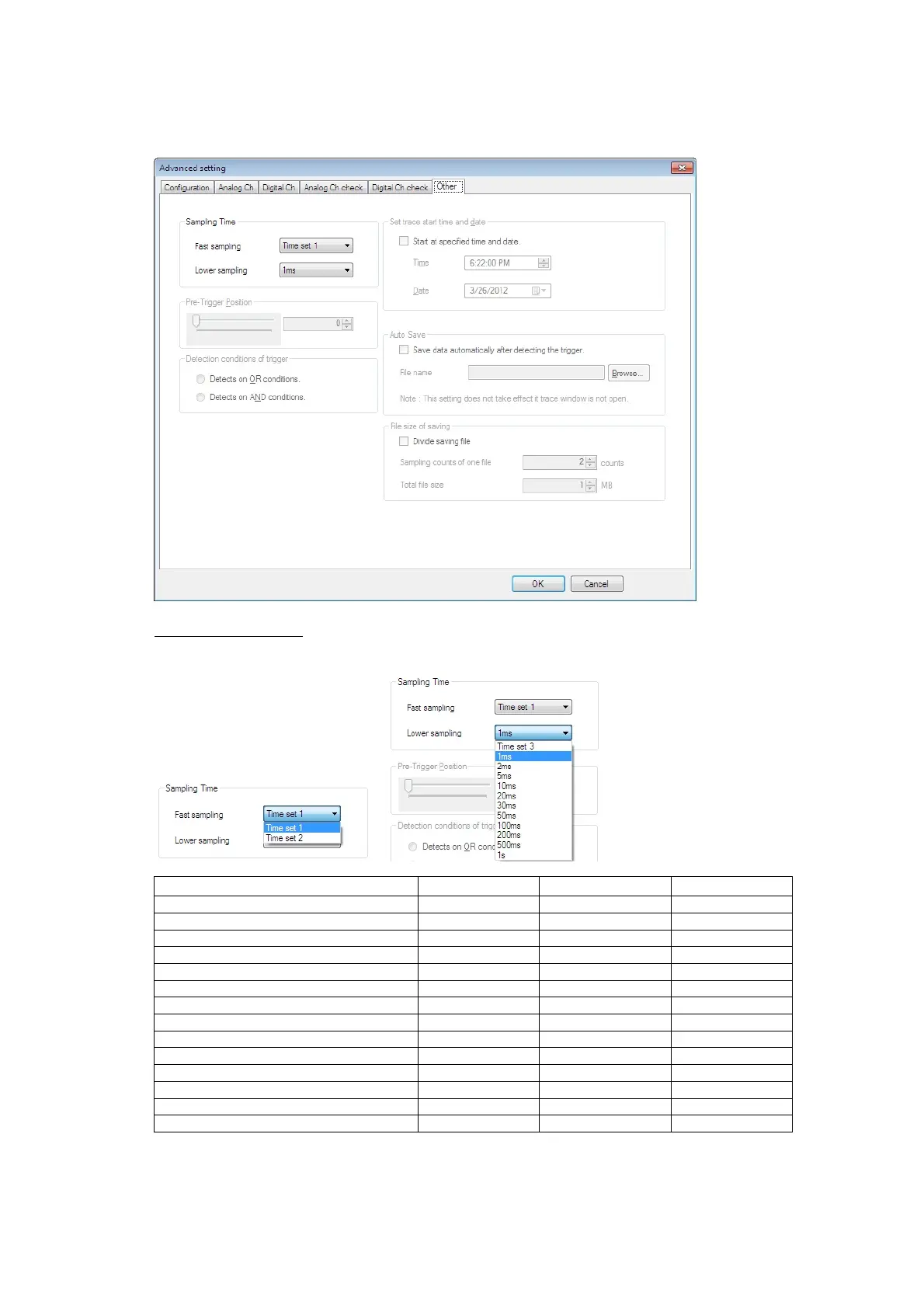

Sampling time setting
Sampling time setting is as shown below:
Sampling time setting
Trace back
Real-time Historical
Time set 1 * ( 50.00 to 83.36us) Y : Fast N Y
Time set 2 * (100.00 to 166.72us) Y : Fast N Y
Time set 3 * (400.00 to 666.88us) Y : Lower N Y
1ms Y : Lower Y Y
2ms Y : Lower Y Y
5ms Y : Lower Y Y
10ms Y : Lower Y Y
20ms Y : Lower Y Y
30ms Y : Lower Y Y
50ms Y : Lower Y Y
100ms Y : Lower Y Y
200ms Y: Lower Y Y
500ms Y : Lower Y Y
1s Y : Lower Y Y
Y: Available, N: Not available
* The sampling time of the Time set 1 to 3 is varied by the setting of F26 : Motor sound(Carrier freq.).
