7-16 MHT258a (Engl.)
(2) System parameter
System paras. register the functions of input/output terminals and other contents related to system setting. Changed setting of most
system paras. is effective only after turning off and on power.

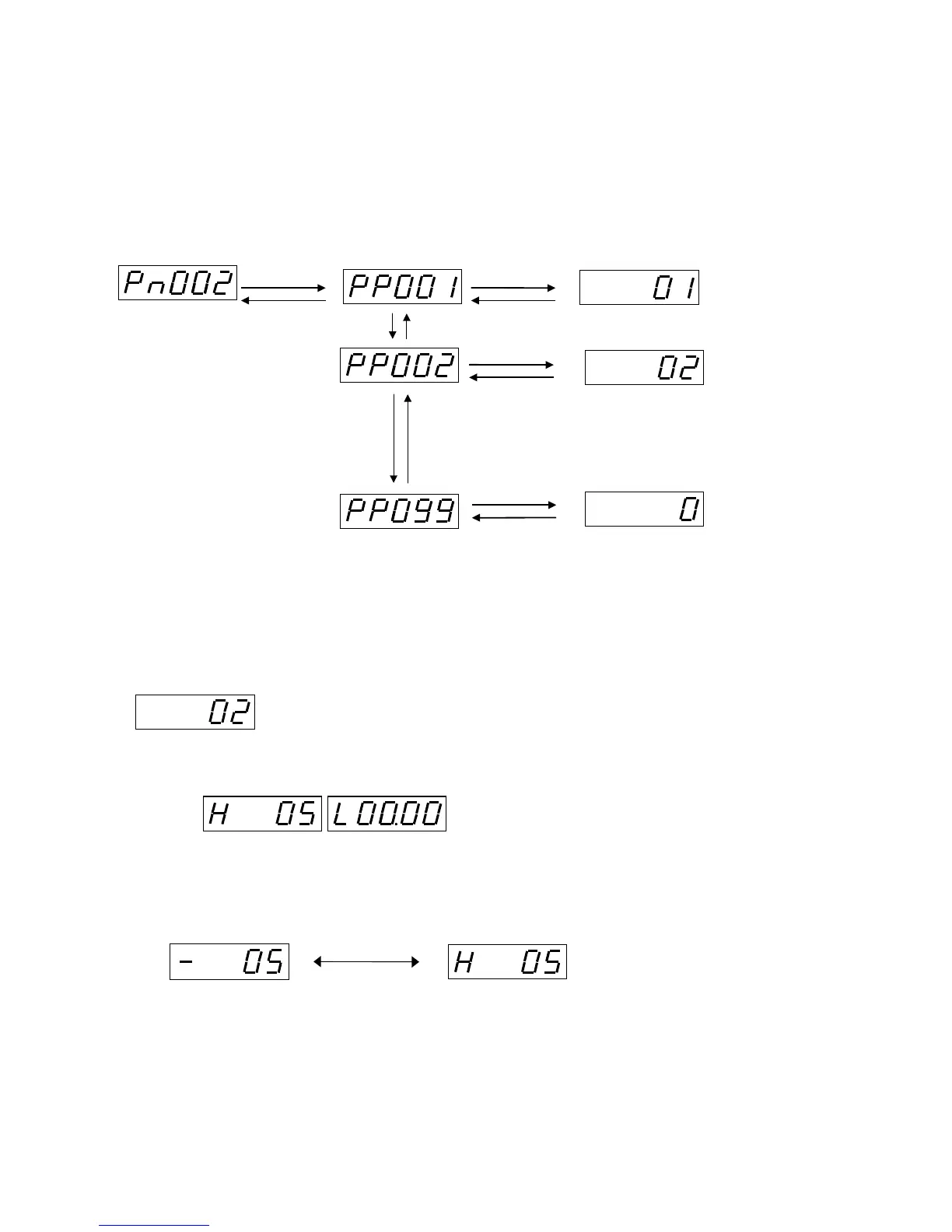

(3) Indication and editing
The indication and editing methods for paras. are as follows.
・Value indication
A value of unsigned 5 digits or signed 4 digits or less is displayed as it is.
Left example shows a value of 2 digits is selected
For clearly indicating the number of digits of a selectable value, zeroes of other columns are suppressed.
A signed value of 5 digits or more is preceded by "H" or "L".
The above example shows a value has 6 digits. (The value will be 500.00.) For interchanging the H side and L side, press the MODE
key holding down the SHIFT key.
・Sign indication
In case of data with minus sign, "H" (or "L") indications and "-" blink alternately.
In case of data with plus sign, "H" (or “L”) indication blanks.
Alternately lights
∧∨
ESC
ENT(1s or more)
∧∨
ESC
ENT
ESC
ENT
ESC
ENT
Example : Data with minus sign
