Paper Jams at High Capacity Tray Unit
This section describes how to remedy paper jams that occur at the following locations:
The references are described below.
Paper jams in Lower Left Cover.................................................................................................94
Paper jams at lever 1a and Knob1c.............................................................................................95
Paper jams at lever 1d .................................................................................................................96
Paper jams at lever 1b .................................................................................................................95
Note • Remedy differs according to the paper jam location. Follow the instructions displayed and
remove the jammed paper.

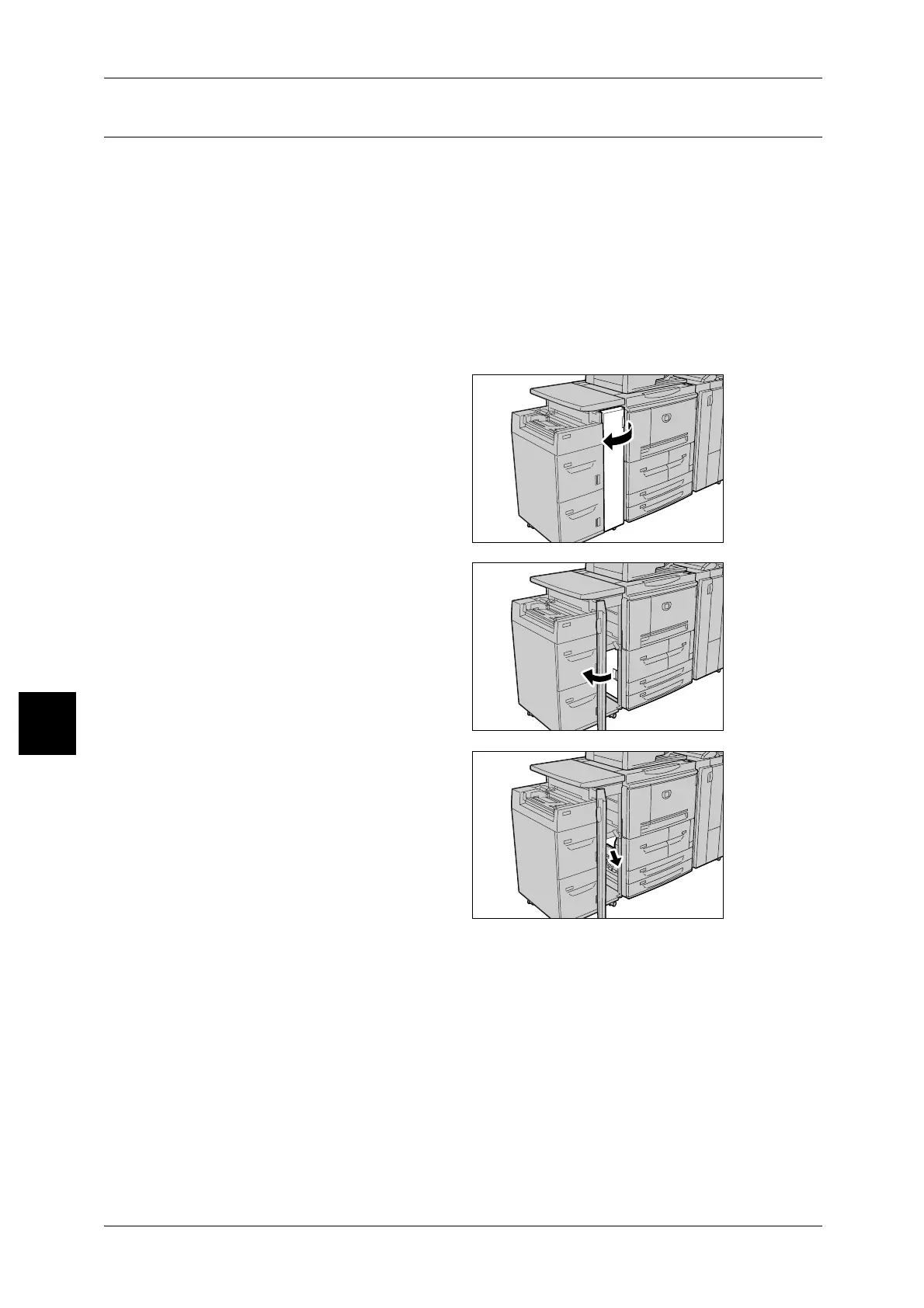

Paper jams in Lower Left Cover
1 Open the front cover of the high
capacity tray unit.
2 Open the lower left cover while
gripping the release lever 1.
3 Remove the jammed paper.
Note • If paper is torn, check for any
torn pieces of paper inside the
machine.
4 Close the lower left cover 1.
5 Close the front cover of the high capacity tray unit.
Note • A message will be displayed and the machine will not operate if the High Capacity Tray
Unit’s front cover is even slightly open.
