124 Printing Basics
Loading Small Print Media in the Bypass Tray
When loading small print media such as monarch envelope or the user-specified print media whose feed direction
length is 191.6 mm or less in the bypass tray, remove the bypass tray from the printer.

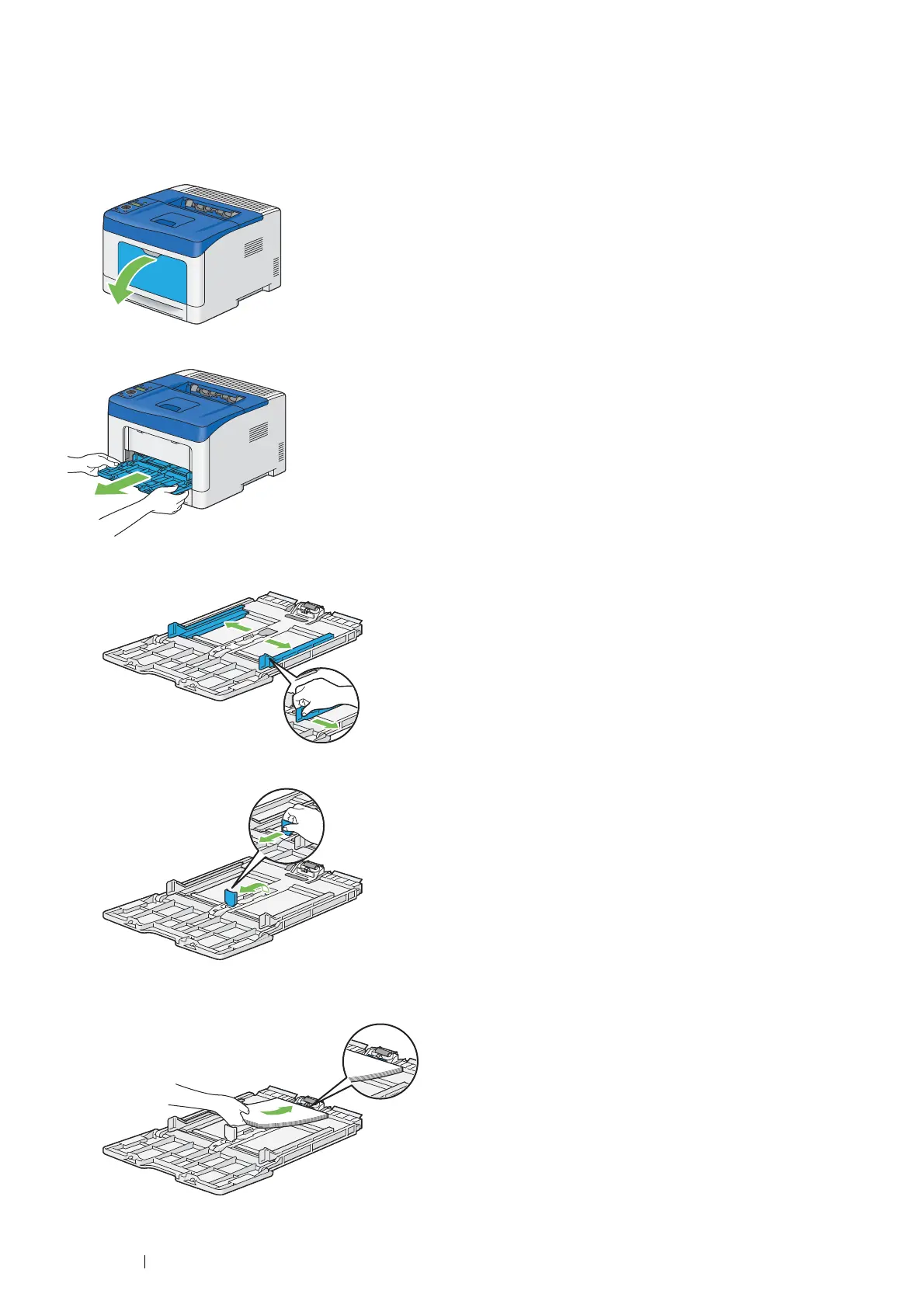

1 Gently pull open the bypass tray cover.
2 Grasp both sides of the bypass tray, and then pull the bypass tray from the printer.
3 Slide the width guides to the edge of the tray. The width guides should be fully extended.
4 Pull up the length guide and slide it toward the bypass tray cover until it stops.
5 Load the print media into the bypass tray with the recommended print side facing up so that the top edge of the
print media enters the printer first.
To Next Page
