52 Basic Operation
Installing the Optional Font ROM
The Font ROM is supplied with the Font Kit.
NOTE:
• Your printer supports TC/SC Font Kit, KR Font Kit, or JP Font Kit.

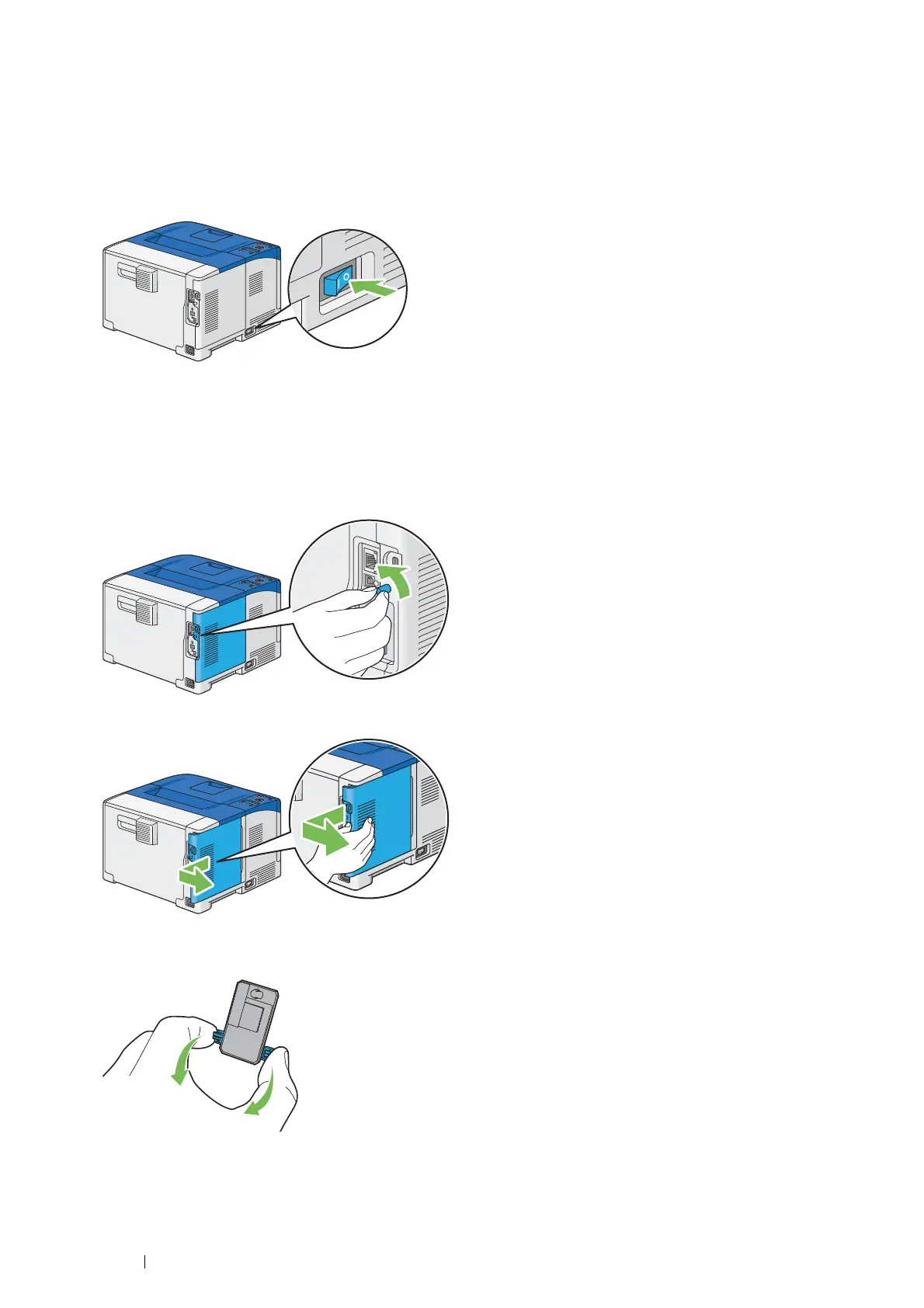

1 Turn off the printer.
IMPORTANT:
• Note that the data in the memory are cleared when the printer is turned off.
2 Turn the screw on the control board cover counterclockwise.
NOTE:
• Loosen the screw. You do not need to remove the screw.
3 Slide the control board cover towards the rear of the printer and remove the cover.
4 Open the tabs on both sides of the font ROM.
To Next Page
