42 Basic Operation

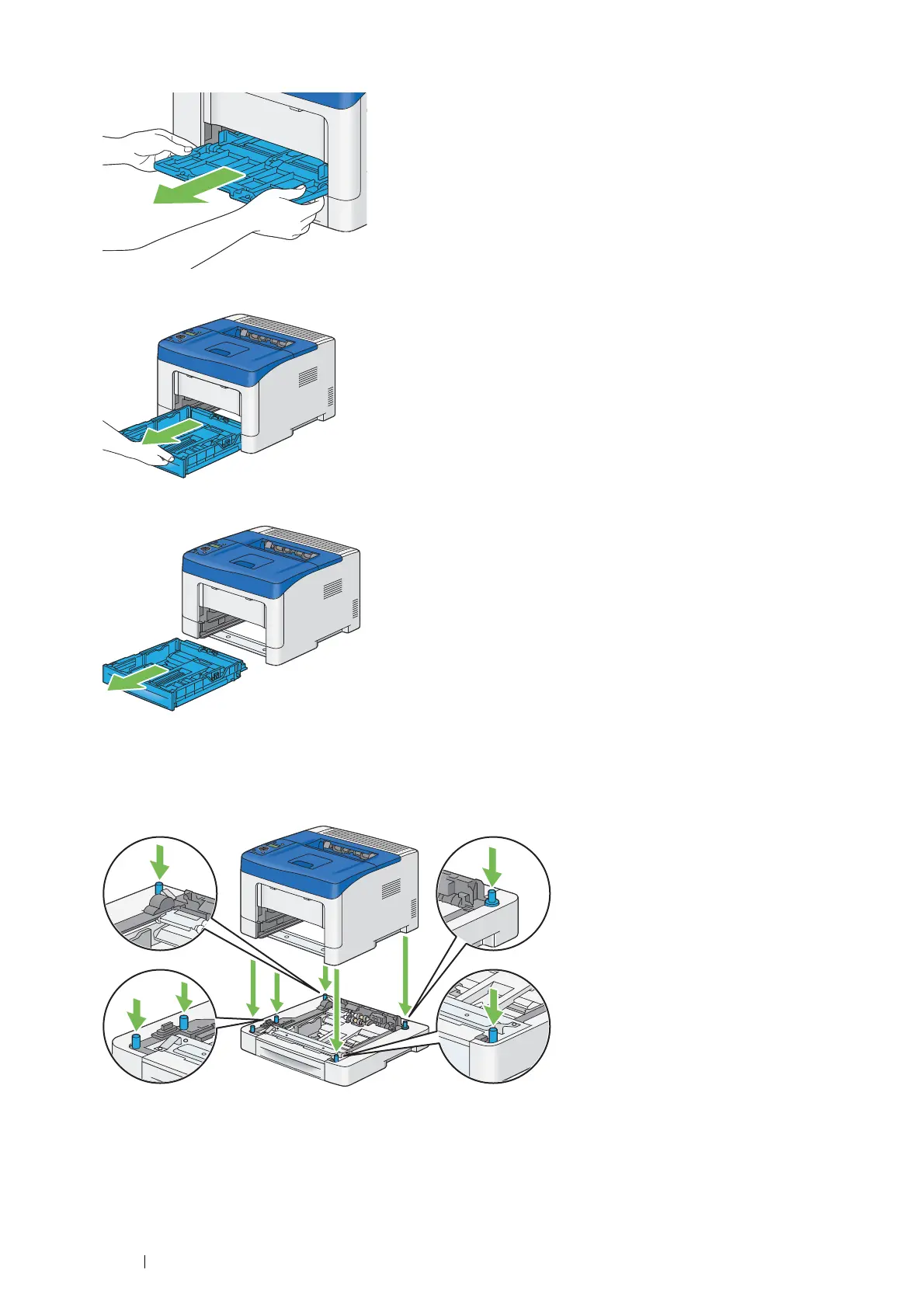

6 Grasp both sides of the bypass tray, and then pull the bypass tray from the printer.
7 Pull the standard 250 sheet tray out of the printer about 200 mm.
8 Hold the standard 250 sheet tray with both hands, and remove it from the printer.
9 Lift the printer and align the five guide pins of the optional 250 sheet feeder with the holes at the bottom of the
printer. Gently lower the printer onto the optional 250 sheet feeder.
IMPORTANT:
• Be careful not to pinch your fingers when lowering the printer onto the optional 250 sheet feeder.
To Next Page
