Mainte
nance
180
Mai
ntena
nce
10
4

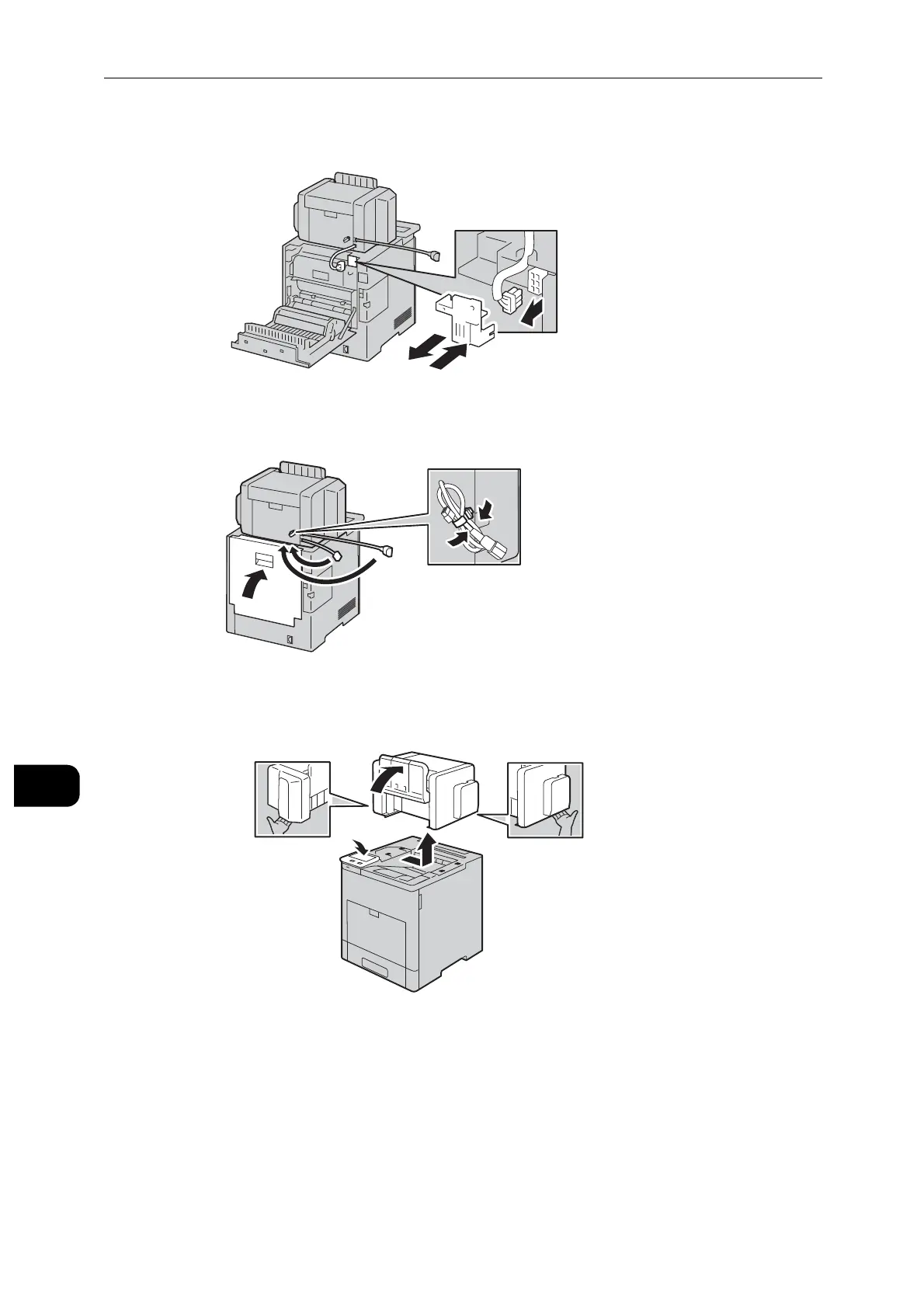

Undo the co
nnector cove
r, and tak
e
off t
he conn
ector.
5
Bund
le the ca
ble.
6
Slide an
d lift the finisher.
179
181
Table of Contents
Default Chapter
3
Table of Contents
3
1 Before Using the Machine
9
Preface
10
Types of Manuals
11
Important Security Instructions
12
Using this Guide
13
Organization of this Guide
13
Conventions
14
2 Setting up the Printer (Printer Setup)
15
Connecting and Setting up Your Printer
16
Connecting to a Computer or a Network
16
Turning On/Off the Printer
17
Configuring Initial Settings on the Control Panel
18
Setting up the Printer Using Quick Setup (Windows ® Only)
18
Configuring the Wireless Settings
19
Setting the IP Address
25
Assigning an IP Address
25
Verifying the IP Settings
26
Installing Printer Drivers on Computers
27
Configuration on the Computer
27
3 Product Overview
29
Machine Components
30
Front and Rear Views
30
Control Panel
32
Internal Parts
32
Finisher and 4-Bin Mailbox (Optional)
33
High-Capacity Feeder, Cabinet, and Caster (Optional)
33
Control Panel
34
About the Home Screen
34
Basic Operations on the Touch Panel
34
Moving, Adding or Removing the Tiles
35
Using the Keyboard Displayed on the Touch Panel
35
Changing the Language and Keyboard Layout
35
Setting the Power Saver Timers
36
4 Paper and Other Media
37
Paper Types
38
Loadable Quantity and Weight for Supported Paper
38
Supported Paper Type
39
Loading Paper
41
Loading Paper in Trays 1 to 5
41
Loading Paper in Bypass Tray
44
Loading Paper in the High-Capacity Feeder
47
Setting the Tray Mode
49
Printing on Special Paper
49
5 Printing
59
Printing
60
Sending a Job to Print
60
Canceling a Print Job
60
Duplex Printing
61
Using Stored Print
63
Print from USB
65
Printing with Wi-Fi Direct
66
Mobile Printing
68
Airprint
68
Google Cloud Print
69
Mopria Print Service
73
6 Device
75
Device
76
Language
76
About
76
Notifications
76
Paper Trays
76
Supplies
77
Billing/Usage
77
General
77
Connectivity
79
Support
85
Resets
86
7 Centreware Internet Services
87
Overview
88
Setting up the Centreware Internet Services
89
Supported Web Browser
89
Setting up from Web Browser
89
Starting the Centreware Internet Services
90
Overview of the Menu Items
91
Home
91
Apps
91
Jobs
91
Connectivity
91
Permissions
91
System
91
Page Display Format
92
Top Frame
92
Left Frame
92
Right Frame
92
Home
93
Notifications
93
Trays
93
Supplies
94
Billing/Usage
94
Quick Links
95
Apps
97
Preferences
97
Installed Apps
97
Jobs
98
List of Active Jobs
98
List of Completed Jobs
98
Deleting a Job
98
Policies
98
Connectivity
99
Connections
99
Mobile Printing
106
Protocols
107
Permissions
118
Guest Access
118
User Accounts
118
Login/Logout Settings
118
Accounting
120
Roles
121
Password Rules
125
System
126
Date & Time
126
SNTP Settings
126
Power Saver
126
Timeouts
127
Security
127
Defaults and Policies
134
PDL Settings
136
Logs
140
Software Update
140
Plug-In Settings
140
Measurements
141
8 Encryption and Digital Signature Settings
143
Encryption and Digital Signature Overview
144
Types of Certificate
144
Requesting Another CA to Issue a Certificate
144
Encryption Features for Communication
144
Configuration of HTTP Communications Encryption
146
Step1 Configuration on the Machine
146
Step2 Configuration on the Computer
147
Configuration of Encryption Using Ipsec
148
Step1 Import and Configuration of a Certificate
148
Step2 Configuration on the Computer
148
Configuration of Wireless LAN WPA-Enterprise (EAP-TLS)
149
Configuration of Wireless LAN WPA-Enterprise
150
Eap-Ttls Chap)
150
9 Authentication and Accounting Features
151
User Authentication and Accounting
152
Types of User
152
Roles
152
Types of Authentication
153
Types of Account Administration
153
Authentication and Accounting Relationship
154
User Authentication Operations
154
Creating and Editing User Accounts
155
User Authentication for Accounting
156
10 Maintenance
157
Replacing Consumables
158
Checking the Supplies Status at the Control Panel
159
Replacing Toner Cartridge
159
Replacing Drum Cartridge
161
Replacing Staple Cartridge
164
Cleaning the Machine
166
Cleaning the Exterior
166
Cleaning the Touch Screen
166
Cleaning the LED Lens
167
Adjustments and Maintenance Procedures
170
Adjusting Paper Registration
170
Transfer Voltage Adjustment
172
Adjusting the Fusing Unit
172
Adjusting the Altitude
173
Performing a Developer and Transfer Roller Cleaning Procedure
173
Adjusting the Density
174
Refreshing the Toner
174
Removing Optional Components
175
Removing the High-Capacity Feeder
175
Removing the Caster
177
Removing the Finisher
179
Removing the 4-Bin Mailbox
181
11 Problem Solving
184
Troubleshooting
184
Machine Trouble
185
Image Quality Trouble
187
Trouble During Printing
191
Unable to Print
191
The Print Result Is Not What was Expected
192
Network-Related Problems
193
When Using TCP/IP
193
Centreware Internet Services Problems
194
Internet/Intranet Connection Problems
195
Ipv4 and Ipv6 Connection Problems
196
Error Code
198
Other Errors
258
Paper Jams
259
Paper Jams in the Bypass Tray
260
Paper Jams in Tray 1
262
Paper Jams in Trays 2 to 5
264
Paper Jams in the Fusing Unit
266
Clearing Paper Jams from the Finisher
267
Clearing Paper Jams from the 4-Bin Mailbox
268
12 Appendix
269
Specifications
270
Basic Specifications
270
High-Capacity Feeder (Optional)
274
4-Bin Mailbox (Optional)
274
Finisher (Optional)
274
Optional Components
276
EP System
277
