FujiFilm Frontier-S DX100 Service Manual

101
4.5Disassembly and Assembly Procedure
DX100 Service Manual
6. Disconnect the cables from the three relay connectors.

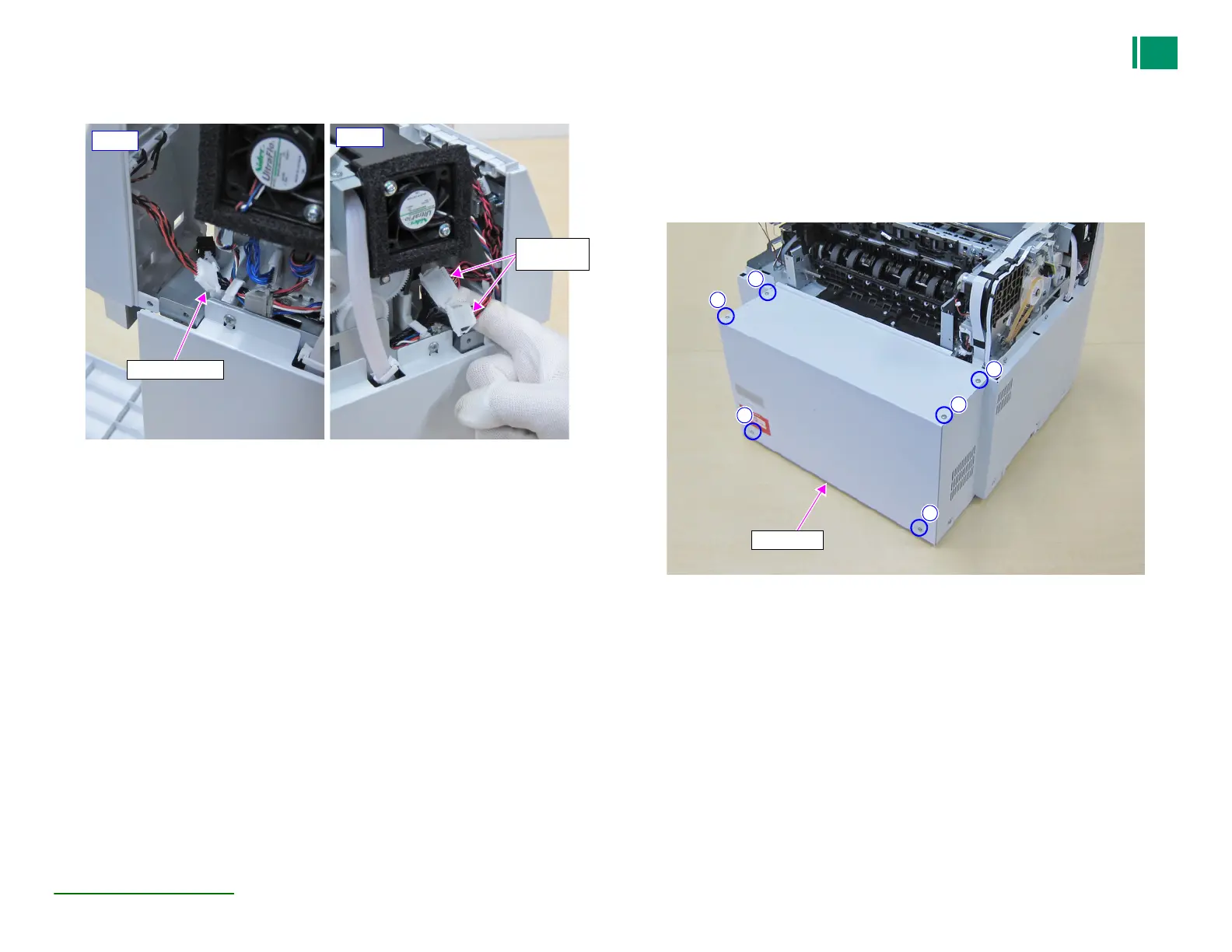

Figure 4-27. Releasing the cable
4.5.2.8 Rear Frame
1. Remove the Top Cover. (P.97)
2. Remove the Upper Cover. (P.100)
3. Remove the six screws, and remove the Rear Frame.
A) Silver M3x6 S-tite screw : six pieces
Figure 4-28. Removing the Rear Frame
Right
Left
Relay connector
Relay
connector
A
A
A
A
A
A
Rear Frame
