FujiFilm Frontier-S DX100 Service Manual

203
4.6Routing the cables and FFCs
DX100 Service Manual

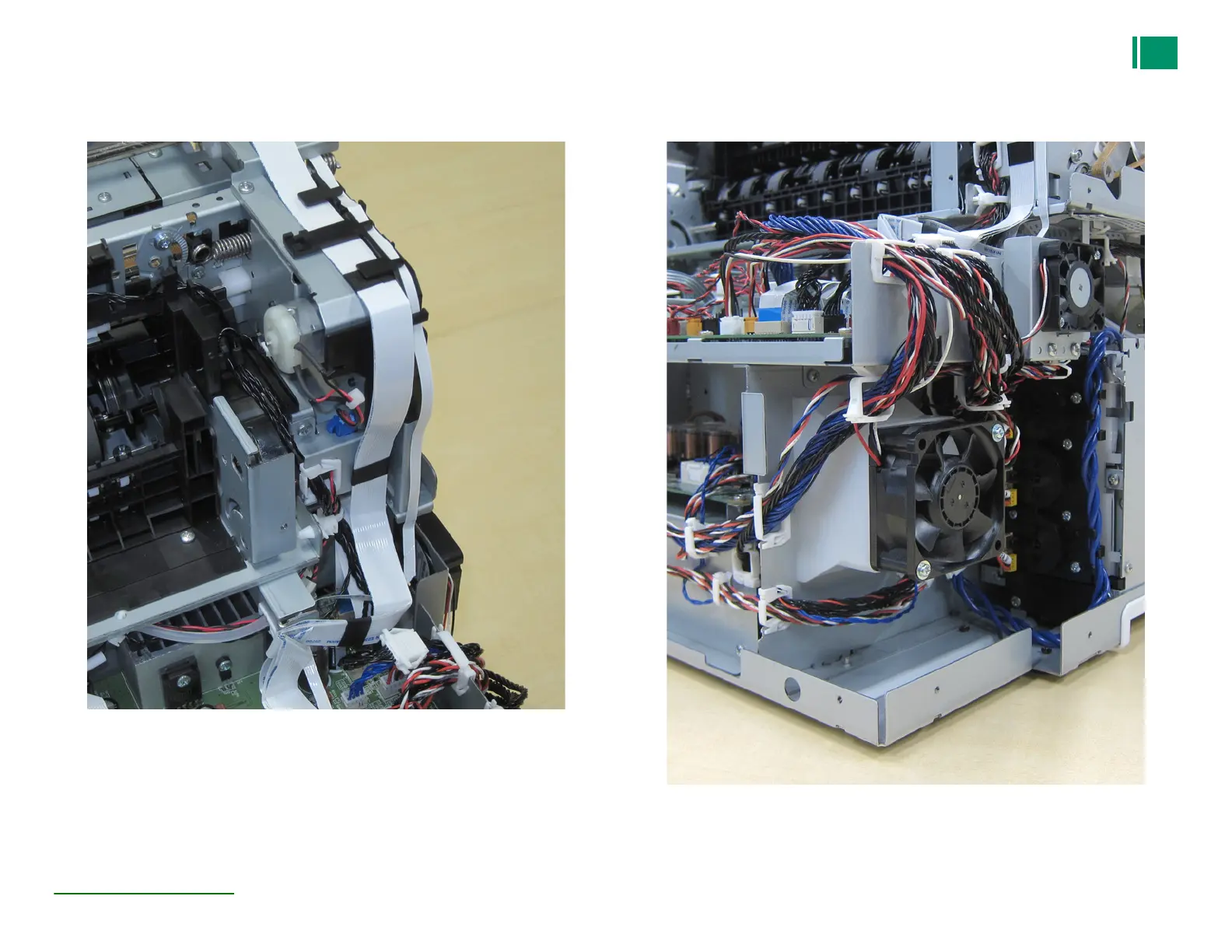

4.6.2 Top left view on the rear
Figure 4-173. Routing the cables and FFCs (Top left on the rear)
4.6.3 Bottom left view on the rear
Figure 4-174. Routing the cables and FFCs (Bottom left on the rear)

FujiFilm Frontier-S DX100 Specifications

General

Print Technology	Inkjet
Paper Handling	Roll paper
Connectivity	USB 2.0
Ink Colors	Cyan, Magenta, Yellow
Media Sizes	3.5x5 to 8x39 inches
Print Size	3.5x5 to 8x39 inches
