5.5Paper Feed Related Adjustment
DX100 Service Manual
5.5.2 Side Position Adjustment (PW Sensor Adjustment)
1. Select 1. Adjust / Maintenance Adjustment PW Sensor Adjustment.
2. Click [Print] to print the adjustment pattern.

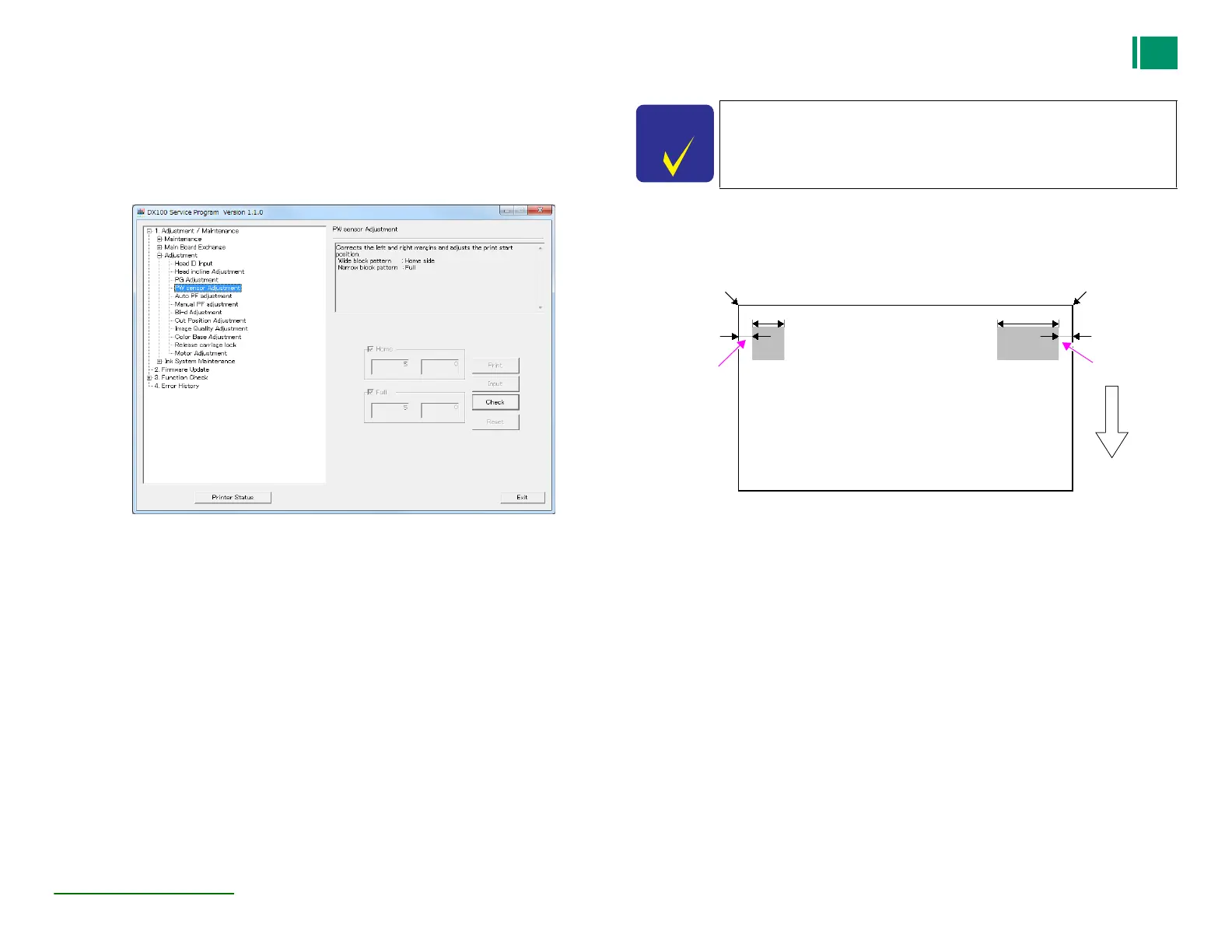

Figure 5-80. Side Position Adjustment (PW Sensor Adjustment) screen
3. Measure the width of the gap (mm) between the edge of paper and the printed
vertical line on the right and the left of the paper. (See Figure 5-81)
NOTE: When both of the two measured values (a & B) are inside 5 mm +/- 0.2
mm, the adjustment is not necessary.
4. Enter the measured values into the boxes in the PW Sensor Adjustment, and the
click [Input].
Side (HOME): enter the value measured at the Home side
Side (FULL): enter the value measured at the FULL side
Figure 5-81. Side Position Adjustment (PW Sensor Adjustment) adjustment pattern
To distinguish between the HOME side and FULL side, measure the
margins between the block patterns of the adjustment pattern and the
nearest paper edges. (See Figure 5-81)
Clicking the [Reset] button resets the setting value to 5 mm.
Paper feed
direction
Paper edge
of the home
position
Measurement
Point a
Full side
approx. 15 mm
Home side
approx. 30 mm
Paper edge
of the full
position
Measurement
point b
