4.5Disassembly and Assembly Procedure
DX100 Service Manual
4.5.2.9 Left Frame
1. Remove the Top Cover. (P.97)
2. Remove the Upper Cover. (P.100)
3. Remove the Rear Frame. (P.101)
4. Remove the six screw, and remove the Left Frame.
A) Silver M3x6 S-tite screw : six pieces

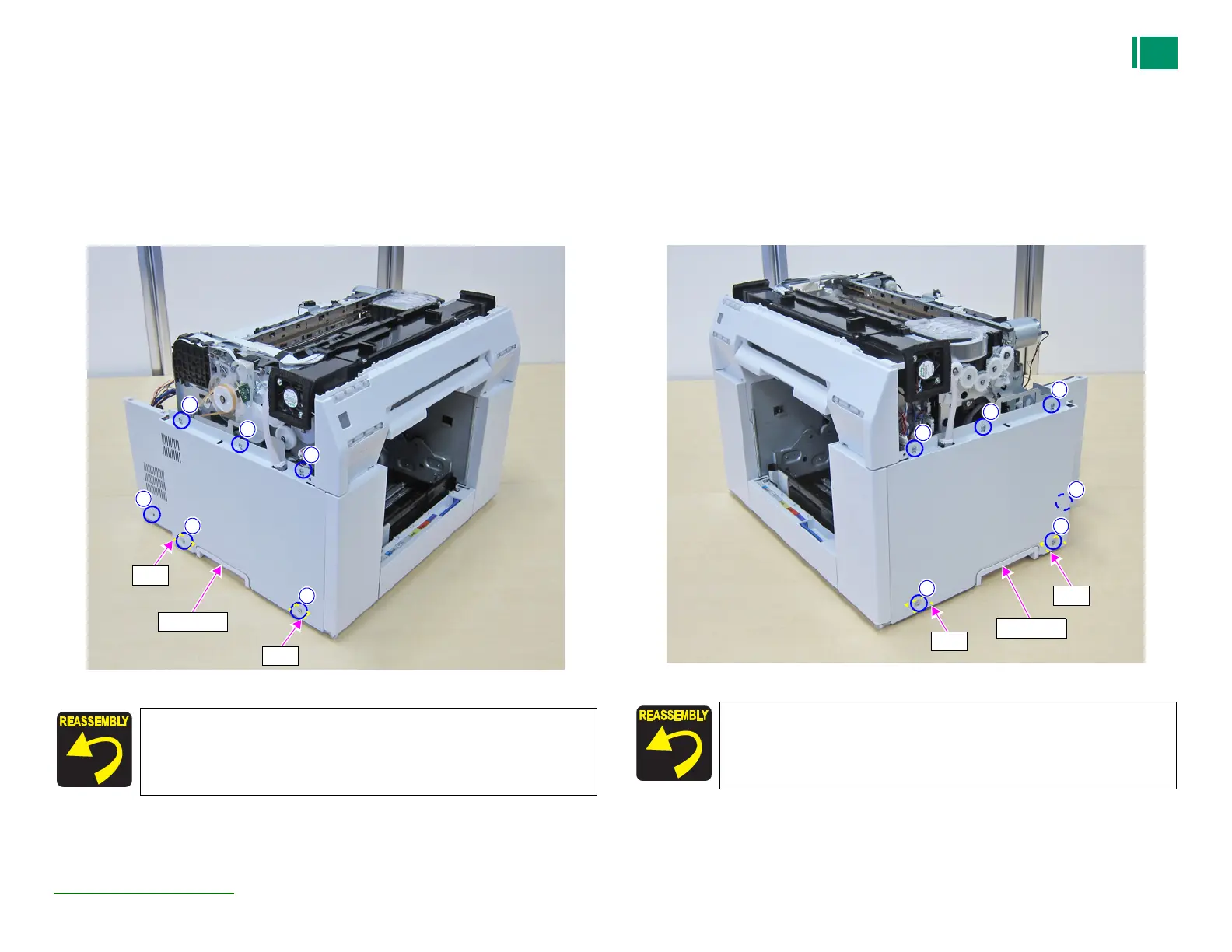

Figure 4-29. Removing the Left Frame
4.5.2.10 Right Frame
1. Remove the Top Cover. (P.97)
2. Remove the Upper Cover. (P.100)
3. Remove the Rear Frame. (P.101)
4. Remove the six screws, and remove the Right Frame.
A) Silver M3x6 S-tite screw : six pieces
Figure 4-30. Removing the Right Frame
Insert the two tabs of the Left Frame to the holes of the frame. (See Figure
4-29)
Left Frame
A
A
A
A
A
Tab
Tab
A
Insert the two tabs of the Right Frame to the holes of the frame. (See Figure
4-30)
Right Frame
A
A
A
A
A
Tab
Tab
A
