196

4.5Disassembly and Assembly Procedure

DX100 Service Manual

4.5.9.2 CR Motor

1. Remove the Top Cover. (P.97)

2. Remove the Upper Cover. (P.100)

3. Remove the Rear Frame. (P.101)

4. Remove the Right Frame. (P.102)

5. Remove the CR Scale. (P.123)

6. Remove the heater upper cover.

("4.5.8.3 Left Heater Duct/Right Heater Duct" Step5 (p189))

7. Remove the heater lower cover.

("4.5.8.3 Left Heater Duct/Right Heater Duct" Step6 (p189) to Step 7 (p189))

8. Remove the Right Heater Duct.

("4.5.8.3 Left Heater Duct/Right Heater Duct" Step10 (p190))

9. Disconnect the CR Motor cable from the connector (CN200) of the Main Board.

10. Release the CR Motor cable from the four clamps and two wire saddles.

11. Remove the omega clamp, and release the CR Motor cable.

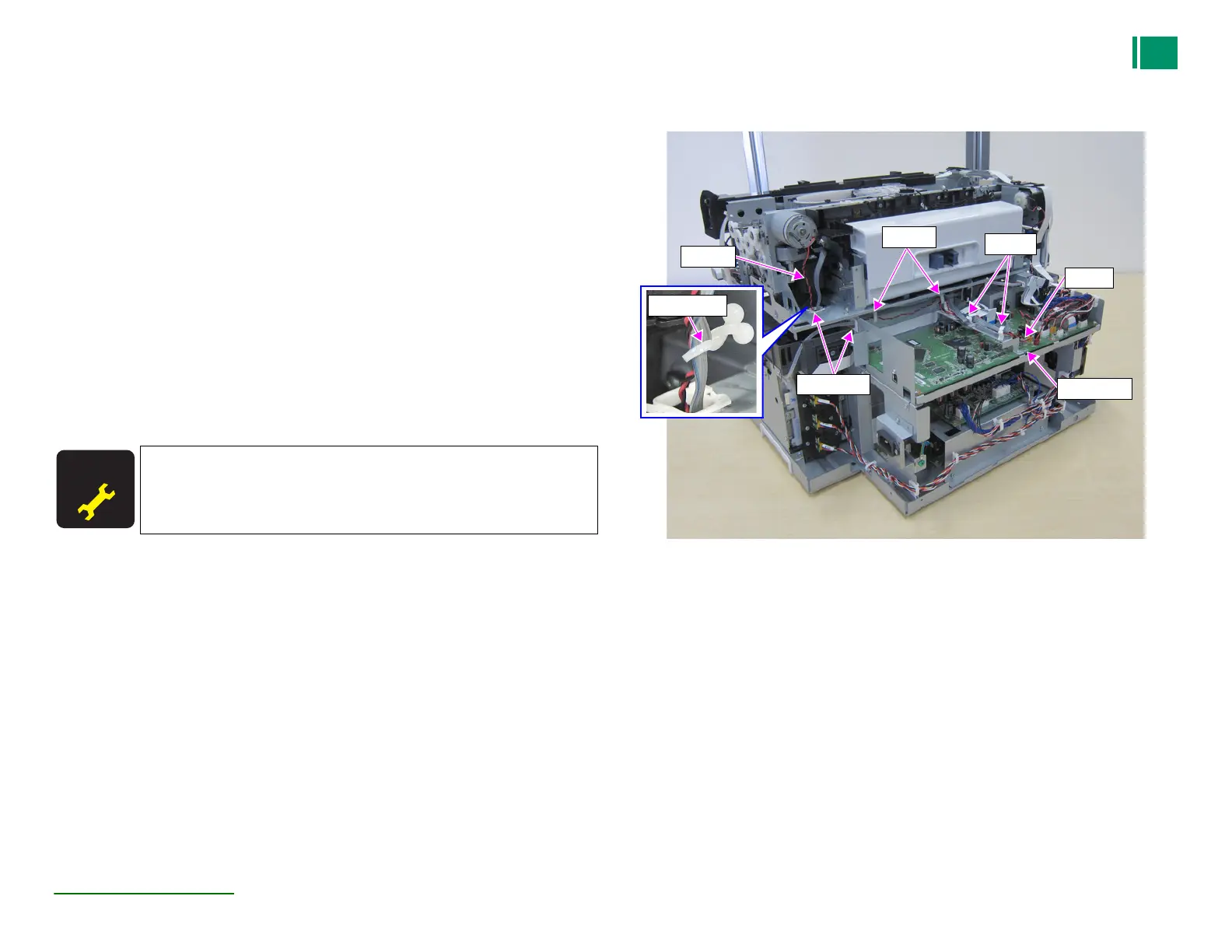

Figure 4-163. Releasing the cable

A D J U S T M E N T

R E Q U I R E D

Carry out the adjustments referring to "5.1.2 Adjustment Items and the

Order by Repaired Part" (p210) when the CR Motor is removed or

replaced.

Omega clamp

Main Board

CN200

Cable

Clamps

Wire saddles
