Working with your notebook The integrated 56k modem
32 A26391-LJ1-Z120-1-7619
The integrated 56k modem
The integrated 56k modem supports all data communication applications, such as:
• Modem operation: High-speed downloads at up to 56,000 bit/s (V.90). Downward-compatible to
V.34 modems.
• Fax mode: Transmitting and receiving at up to 14,400 bit/s
• Simple country adaptation with programme
The modem complies with the EU Directive 91/263/EEC (Telecommunications terminal equipment
directive) and has been checked in agreement with the guideline TBR-21.
The modem can be operated in the following countries:
Multifrequency (MFC) dialing
Belgium, Denmark, Germany, Finland, France, Greece, Great Britain, Holland, Ireland, Iceland,
Italy, Luxembourg, Norway, Austria, Portugal, Sweden, Switzerland and Spain.
Pulse dialing:
Belgium, France, Holland and Italy.
Also in: Poland, Slovenia, South Africa and Hungary.

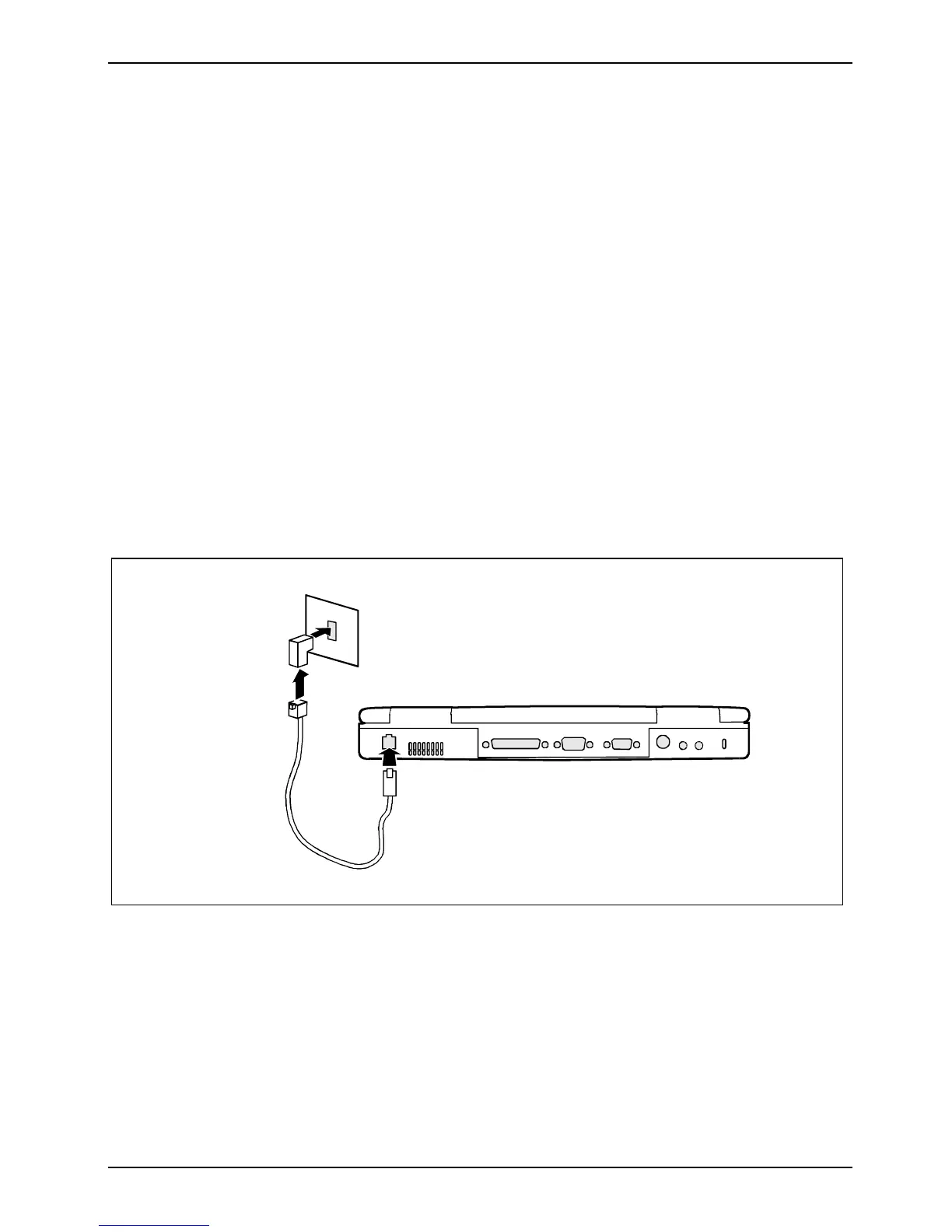

Connecting the modem
1
2
3
Ê Connect the country-specific telephone adapter to the modem cable (1).
Ê Connect the modem cable to the notebook (2).
Ê Connect the modem cable to your telephone wall socket (3).
