Casing, assembling System expansions
A26361-K520-Z300-3-7619 37
Casing, assembling
a
2 1
3

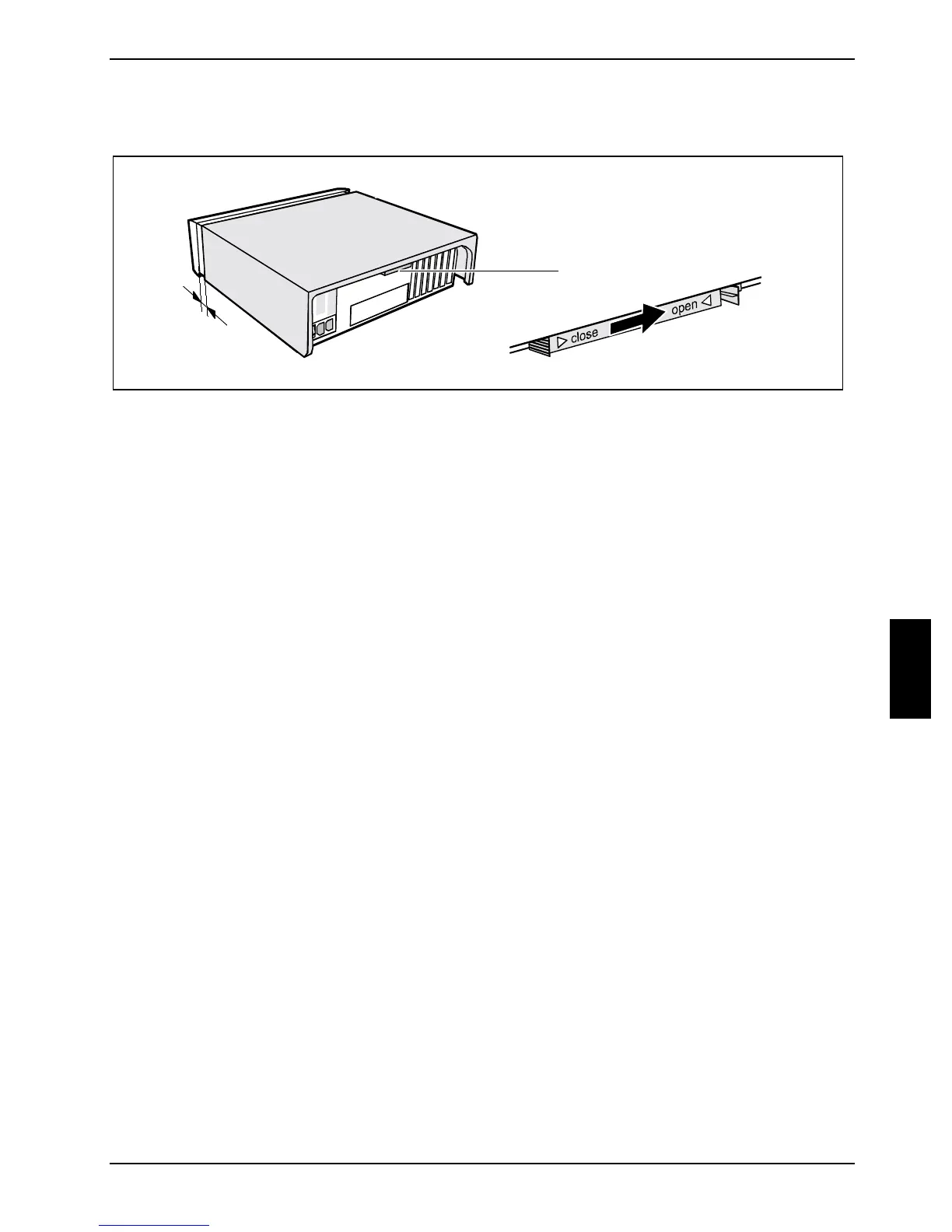

Ê Place the top cover on the system unit (1) from above so that the distance (a) is
approx. 10 mm.
Ê Push the top cover in the direction of the arrow (2) until it engages.
Ê Lock the top cover using the locking slide at the rear (3).
The locking slide is properly engaged when the marking on the casing is aligned with the tab on the
locking slide.
Ê Return the system unit to its original position.
Ê If you have disconnected cables, reconnect them to the connectors on the rear panel.
