Installing and removing drives System expansions
A26361-K520-Z300-3-7619 49
Version B - Installing and removing the hard disk drive
Ê Open the casing (see "Opening the casing").

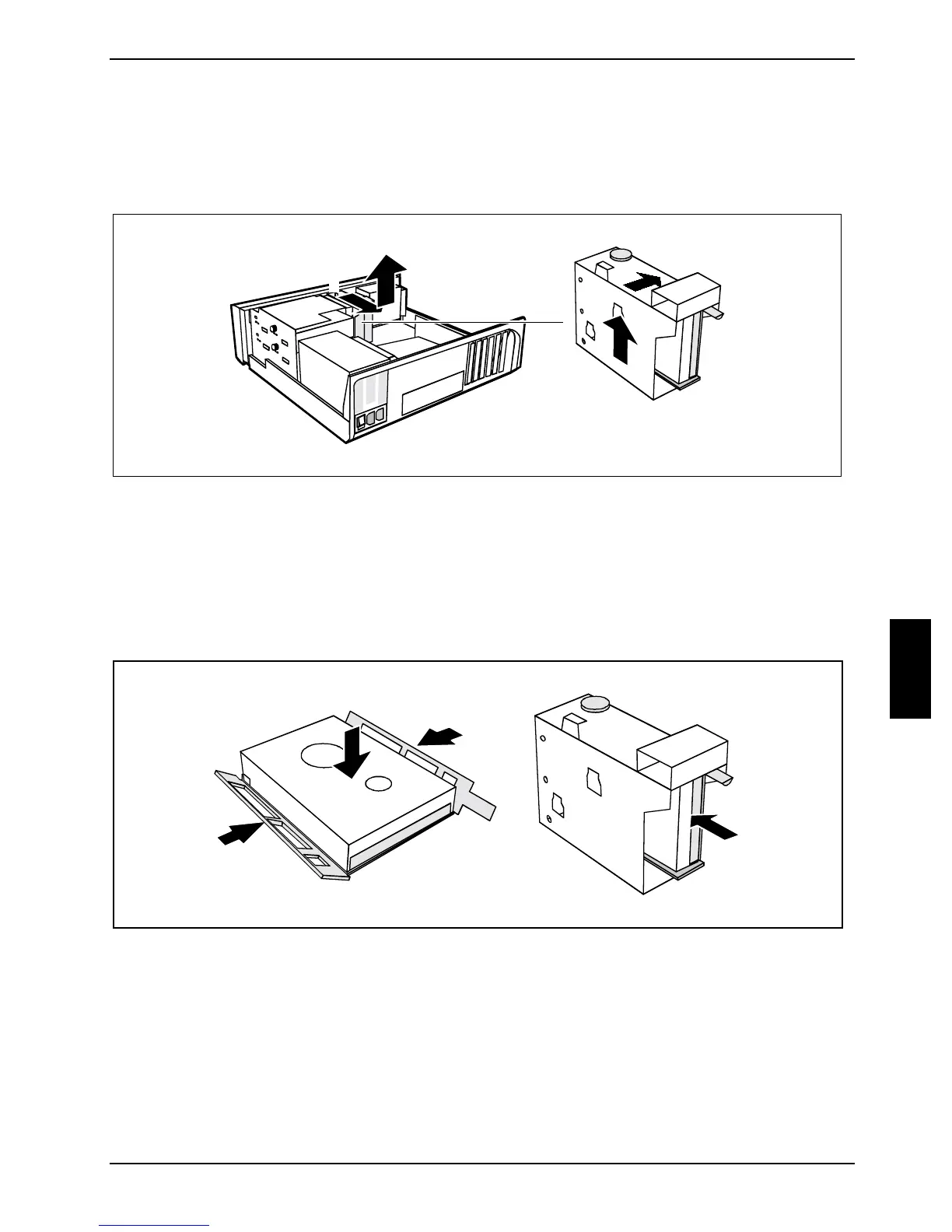

Removing the drive cage
2
1
3
4
Ê Lift the drive cage out of the mounting in the direction of the arrow (1) and (2).
Ê Lift the drive cage out of the system unit in the direction of the arrow (3) and (4).
Ê Pull the data and power supply connectors from the hard disk drive(s).
Installing the first hard disk drive
Ê Take the new hard disk drive out of its packaging.
Ê Make the required settings (e.g. master/slave, stand alone) on the drives.
2
2
1
3
Ê Insert the hard disk drive into the plastic bracket (1). The drive must engage in the plastic
nipple.
Ê Fold the plastic bracket in the direction of the arrow (2) on the hard disk drive.
Ê Push the hard disk drive into the drive carrier until the plastic bracket engages (3).
