Version A - Installing and removing the hard disk drive
Ê Open the casing (see "Opening the casing").
Removing the drive cage
3
4
2
1

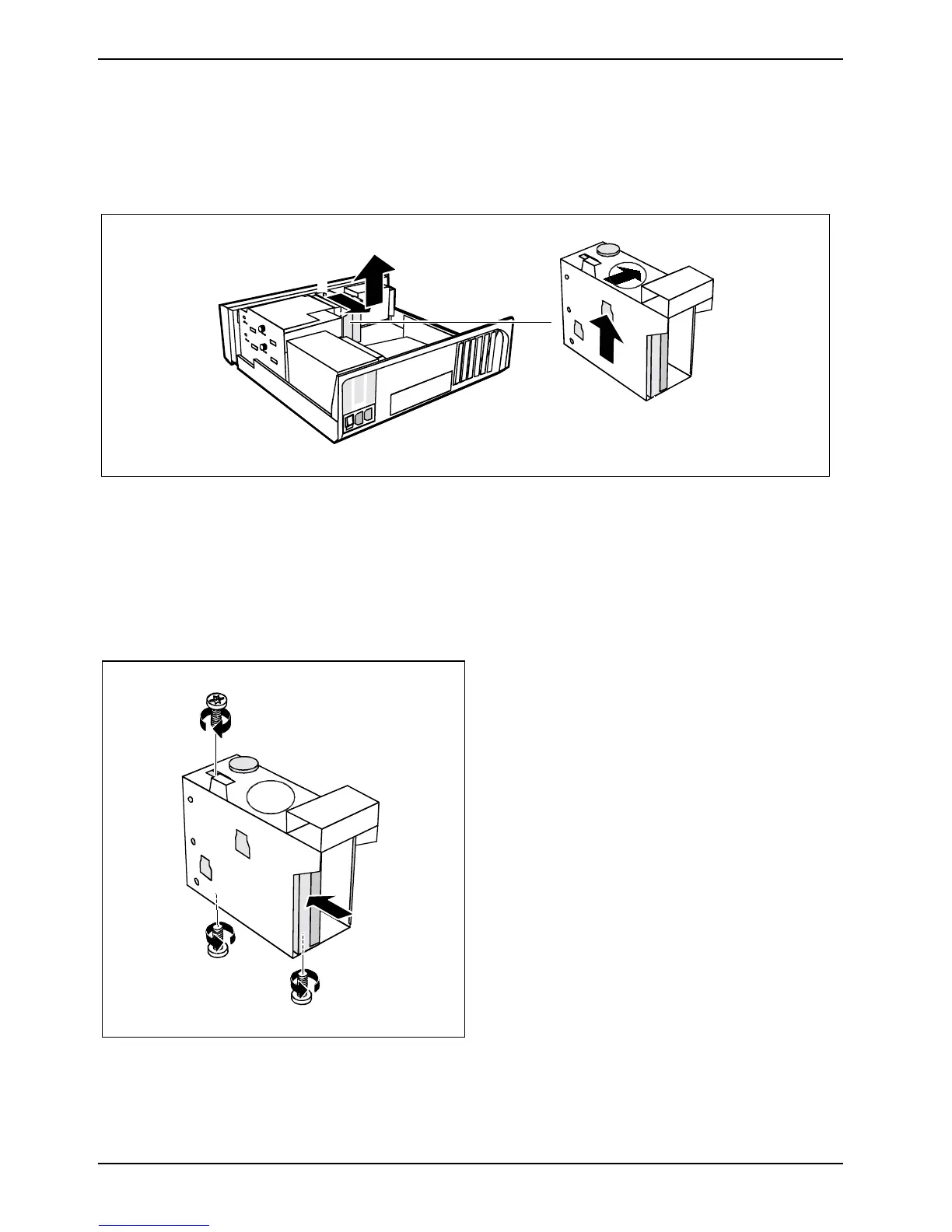

Ê Lift the drive cage out of the mounting in the direction of the arrow (1) and (2).
Ê Lift the drive cage out of the system unit in the direction of the arrow (3) and (4).
Ê Pull the data and power supply connectors from the hard disk drive(s).
Installing the first hard disk drive
Ê Take the new hard disk drive out of its packaging.
Ê Make the required settings (e.g. master/slave, stand alone) on the drives.
2
2
2
1
Ê Take the new hard disk drive out of its
packaging.
Ê Make the required settings (e.g.
master/slave, stand alone) on the drives.
Ê Slide the hard disk drive into the drive
carrier (1).
Ê Fasten the drive into place with the
screws (2).
