Installing and removing drives System expansions
A26361-K520-Z300-3-7619 45
Changing the floppy disk drive
Ê Open the casing (see "Opening the casing").
Ê Remove the drive cage (see "Version A - Installing and removing the hard disk drive" or
"Version B - Installing and removing the hard disk drive").
1
2
Ê Remove the data and power supply
connectors from the floppy disk drive.

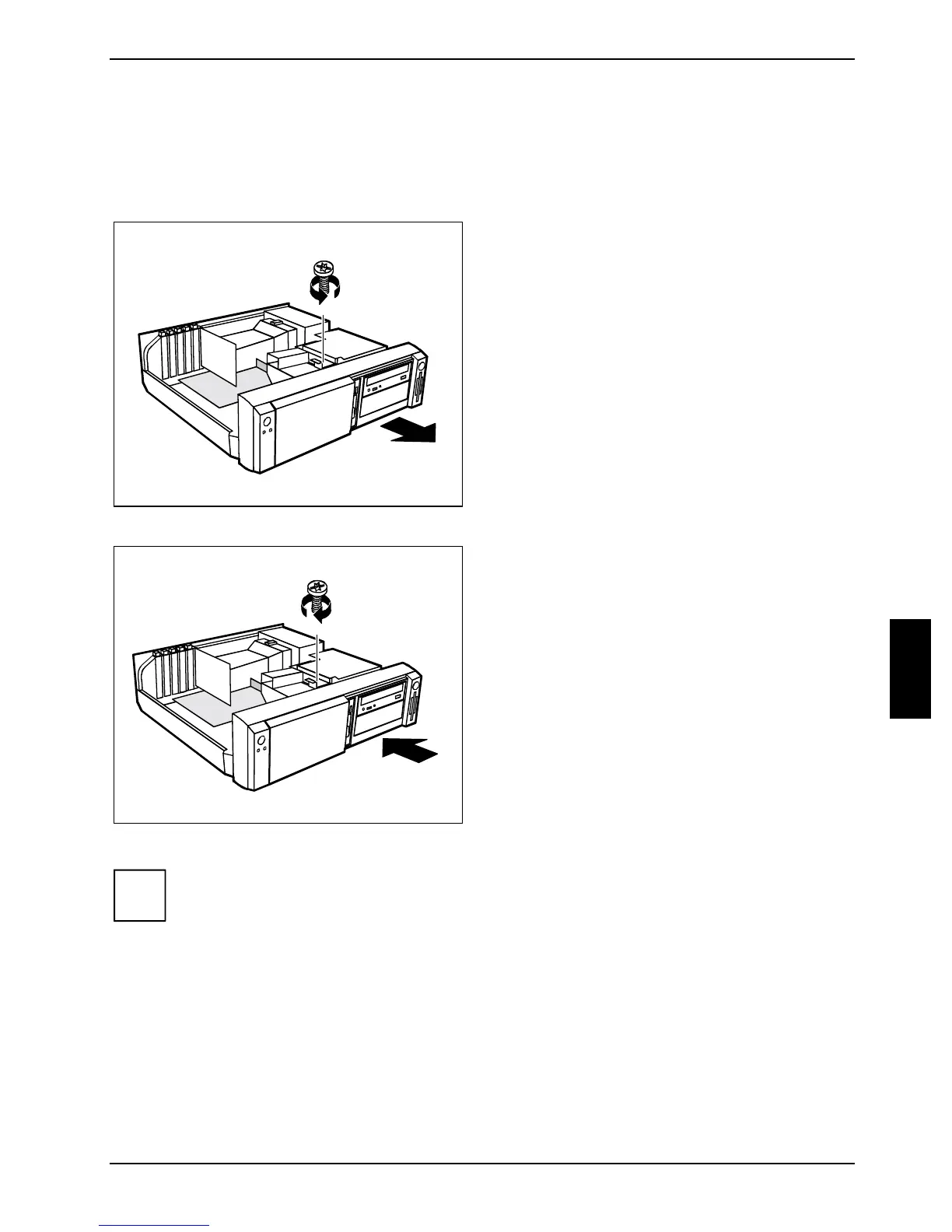

Ê Remove the screw (1) and take the drive
out of the system unit (2).
Ê Take the new floppy disk drive out of its
packaging.
2
1
Ê Push the drive into the system unit (1), and
fix it with the screw (2).
Ê Fit the data and power supply connectors
to the floppy disk drive.
Ê Remove the drive cage (see "Version A -
Installing and removing the hard disk drive"
or ""Version B - Installing and removing the
hard disk drive").
Close the casing (see "Casing, assembling").
i
You may have to check the entry for the drive in the Setup menu.
