Setting Description Function Number Setting Value
4-way
3-way
22
00
01

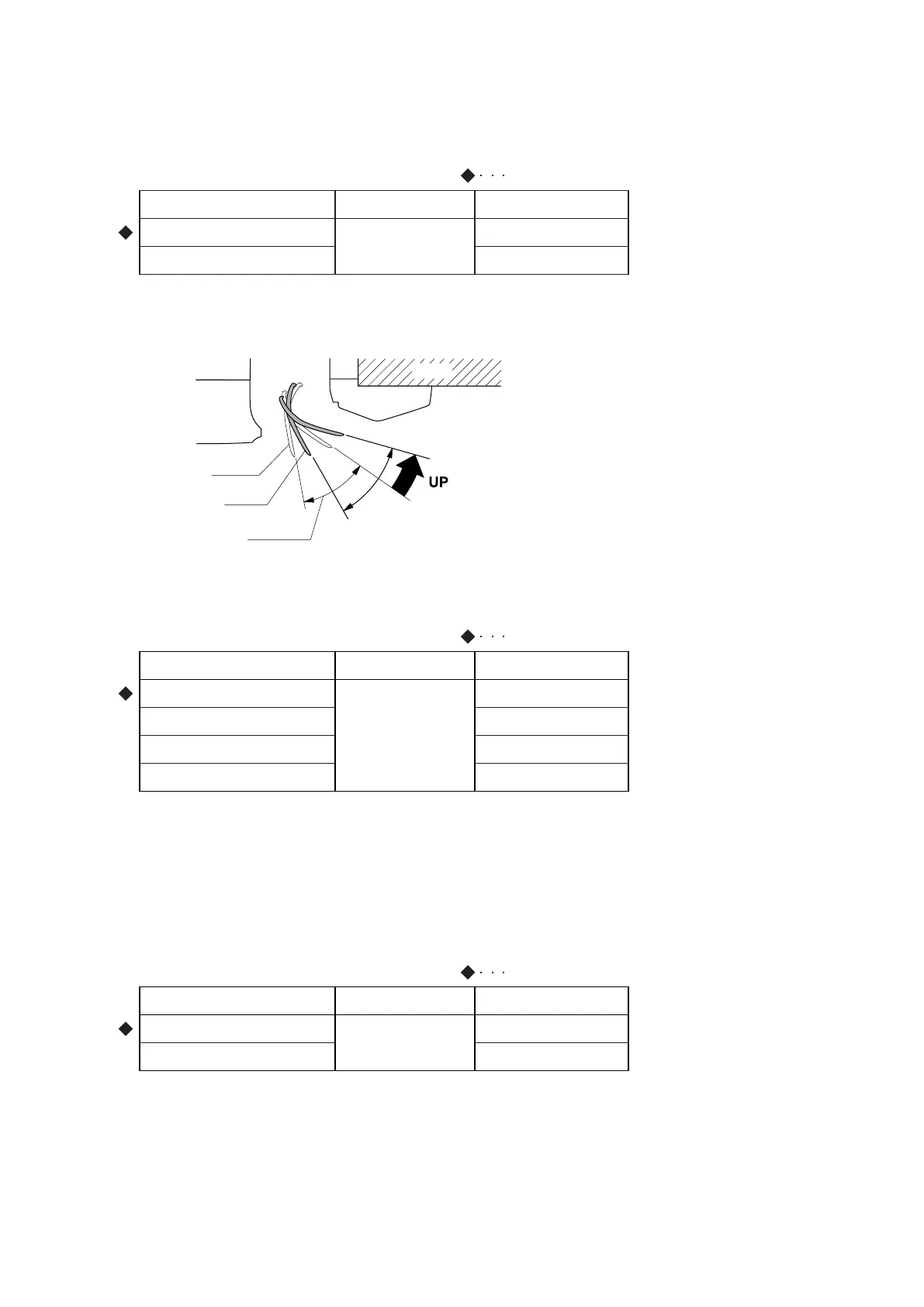

1-4. Setting the Outlet Directions (For AU type)
Select the setting values in the table below for using a 3-way or 2-way outlet.
(The unit is factory set to "00".)
1-3. Setting the Static Pressure (For AR type)
Setting Description Function Number Setting Value
Normal
High static pressure 1
High static pressure 2
High static pressure 3
21
00
01
02
03
Determine the wind volume in each mode i.e., applicable range of static pressure,
refering to TECHNICAL MANUAL.
( Factory setting)
( Factory setting)
Set the vertical direction adjusting scope.
Setting Description Function Number Setting Value
Standard
23
00
01
( Factory setting)
For AU type
Upward
To prevent from draft, we recommend using "upward mode".
In certain condition, the ceiling may become dirty. In such case, we recommend
using the optional "PANEL SPACER KIT".
Ceiling
Standard
Upward
Swing range
Outlet cross section
