External Input and Output PCB
• A twisted pair cable should be used. Maximum length of cable is 25 m.
• Output voltage: High DC 12 V±2 V, Low 0 V.
• Permissible current: 50 mA
• For details, refer to "Combination of external input and output" on page 150

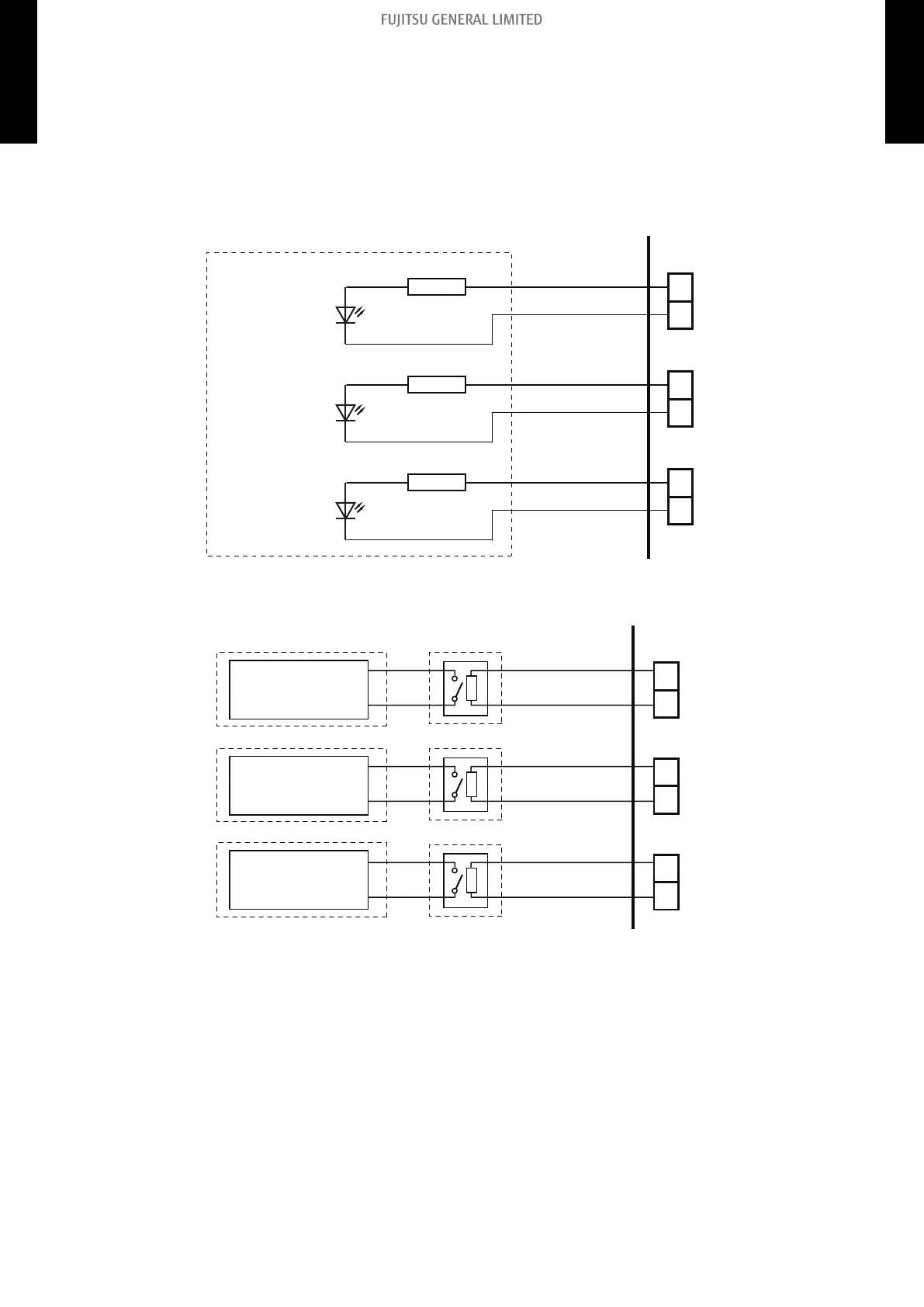

• When indicator or other components are connected directly:
Example: Rotary SW on External Input and Output PCB is set to “1”.
Connector
(CN310)
LED 1
(Operation status)
PCB
Resistor
Connected unit
+
-
Connector
(CN311)
LED 2
(Error status)
Resistor
+
-
Connector
(CN312)
LED 3
(Indoor unit fan
operation status)
Resistor
+
-
• When connecting with a device equipped with a power supply:
Example: Rotary SW on External Input and Output PCB is set to “1”.
1
2
Connected device 1
Connector
(CN310)
PCBConnected unit
Relay
(Operation status)
-
+
1
2
Connected device 2
Connector
(CN311)
(Error status)
-
+
1
2
Connected device 3
Connector
(CN312)
(Indoor unit fan
operation status)
-
+
- 149 -
12-4. Wall mounted type (KGTE, KGTF, KMCE, KMCF, KETE, KETE-B, KETF, and KETF-
B)
12. External input and output
