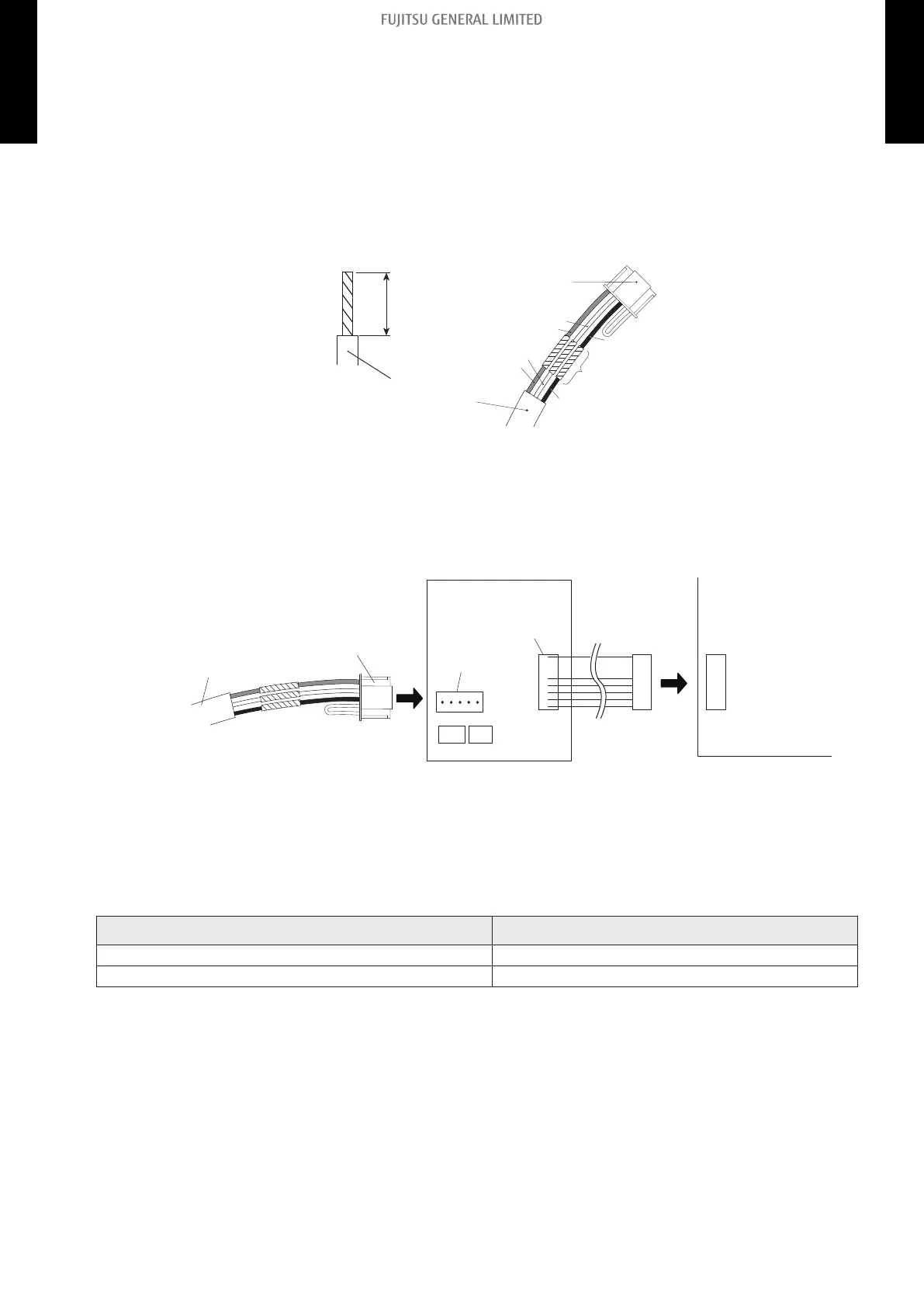

When connecting to Communication Kit (for KM models in Wall
mounted type)
When connecting the remote controller to optional Communication Kit, follow the procedures men-
tioned below.
1. Modify the remote controller cable as follows:
• Use a tool to cut off the terminal on the end of the remote controller cable and then remove
the insulation from the cut end of the cable as shown in following figure.
• Connect the remote controller cable and connecting cable as shown in following figure.
• Be sure to insulate the connection between the cables.
13/16 in.
(20 mm)
Remote controller cable
Connecting
cable
White
Red
White
Red
Black
Insulated
connection
Black
2. Connect the remote controller cable.
•
Connect the cable made in step 1. to the terminal*
1
of optional Communication Kit.
•
Connect the cable from the terminal*
2
of Communication Kit to the indoor unit PCB.
*1: CNC01 on UTY-TWBXF2
*2: CND01 on UTY-TWBXF2
Remote controller cable
Connecting cable Terminal
(*1)
Terminal
(*2)
Communication kit
Indoor unit PCB
¢
Required optional parts
Required optional parts for connecting the wired remote controller to the wall mounted type are
as follows.
Part name Model name
External Connect Kit UTY-TWBXF2
Communication Kit UTY-XWZXZ5
- 210 -
14-12. Simple remote controller (UTY-RSNYM: Optional part) 14. Remote controller
2-UNIT
MULTI-SPLIT TYPE
2-UNIT
MULTI-SPLIT TYPE
