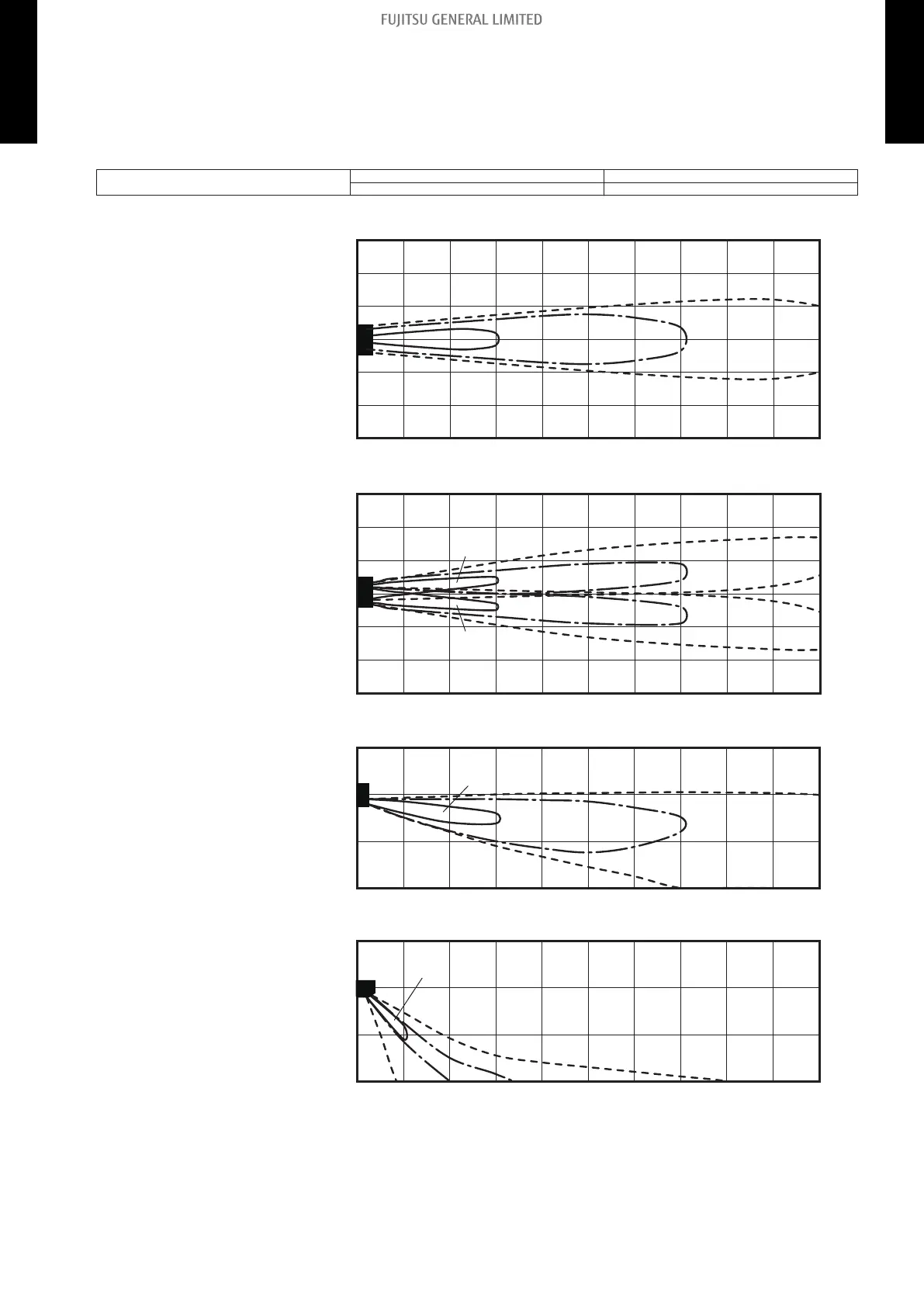

Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Horizontal louver: Up
Vertical louver: Center
Unit: m/s
(m)
(m)
3
2
1
0
1
2
3
0 1 2 3 4 5 6 7 8 9 10
0.52.0 1.0
Top view
Horizontal louver: Up
Vertical louver: Left & Right
1.0
1.0
0.5
0.5
2.0
2.0
Unit: m/s
(m)
(m)
3
2
1
0
1
2
3
0 1 2 3 4 5 6 7 8 9 10
Side view
Horizontal louver: Up
Vertical louver: Center
2.0
0.5
1.0
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
Side view
Horizontal louver: Down
Vertical louver: Center
0.50.5
2.0
1.0
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
