Fujitsu ARYG36LMLE User Manual

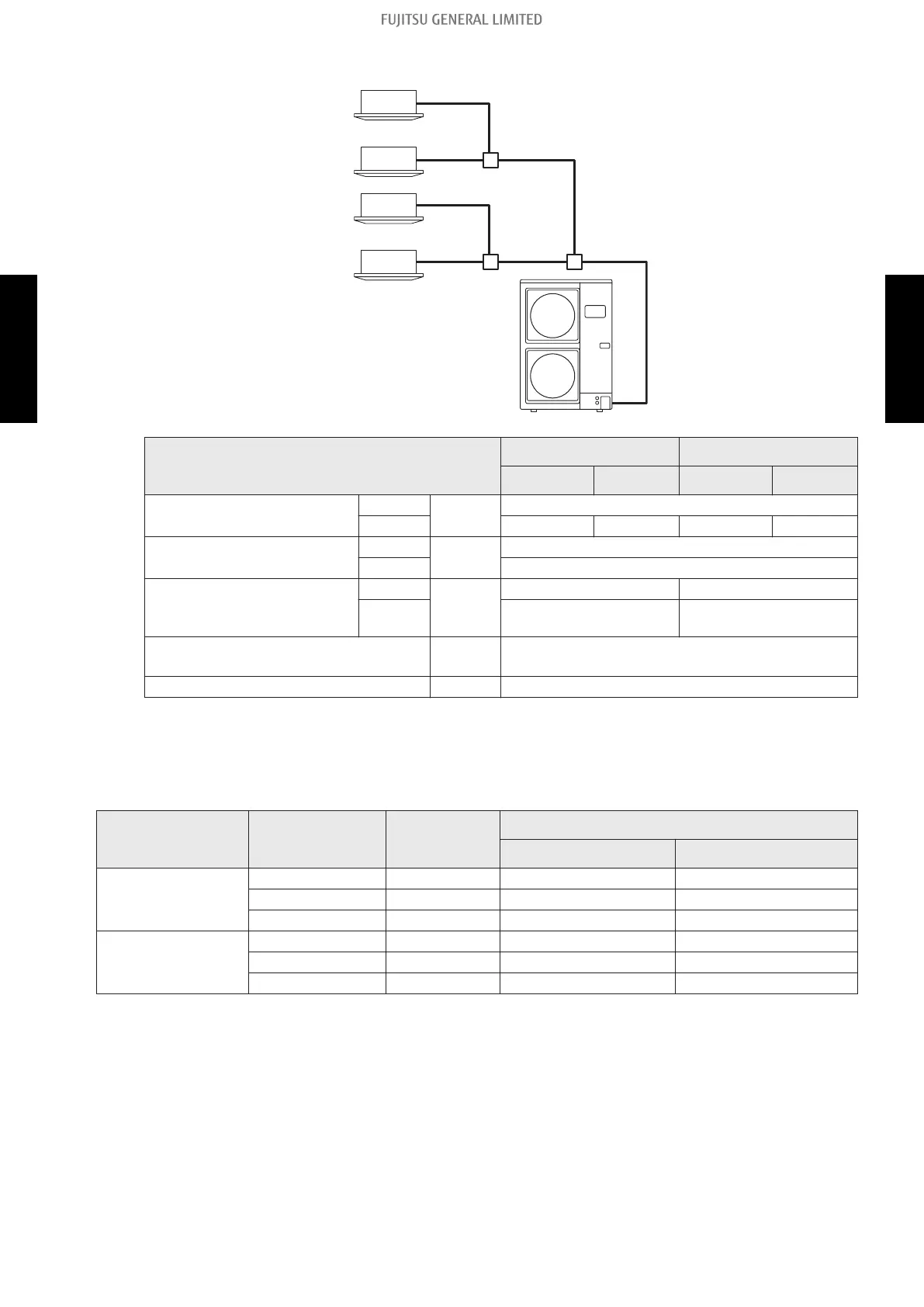

• Double twin type
L1
L3
L2
L4
L5
L6
L7
Model name (Outdoor unit)
AOYG72LRLA AOYG90LRLA
Size down Standard Size down Standard
Main pipe diameter (First
separation) (L1)
Liquid
mm (in)
12.70 (1/2)
Gas 22.22 (7/8)* 25.40 (1) 22.22 (7/8)* 25.40 (1)
Branch pipe diameter (First
separation) (L2, L3)
Liquid
mm (in)
9.52 (3/8)
Gas 15.88 (5/8)
Branch pipe diameter
(Second separation) (L4, L5,
L6, L7)
Liquid
mm (in)
6.35 (1/4) 9.52 (3/8)
Gas 12.70 (1/2) 15.88 (5/8)
Maximum piping length (L1 + L2 + L3 +
L4 + L5 + L6 + L7)
m 100
Pre-charge length m 30
*: Use the reducer attached with the product.
¢ Branch pipes (Optional parts)
Model name
(Outdoor unit)
Connection type
Number of
indoor units
Kit name
First branch Second branch
AOYG72LRLA
Twin 2 UTP-SX272A —
Triple 3 UTP-SX372A —
Double twin 4 UTP-SX272A UTP-SX236A
AOYG90LRLA
Twin 2 UTP-SX272A —
Triple 3 UTP-SX372A —
Double twin 4 UTP-SX272A UTP-SX254A
- 188 -
2-3. Pipe size 2. Pipe design
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
