Fujitsu ARYG36LMLE User Manual

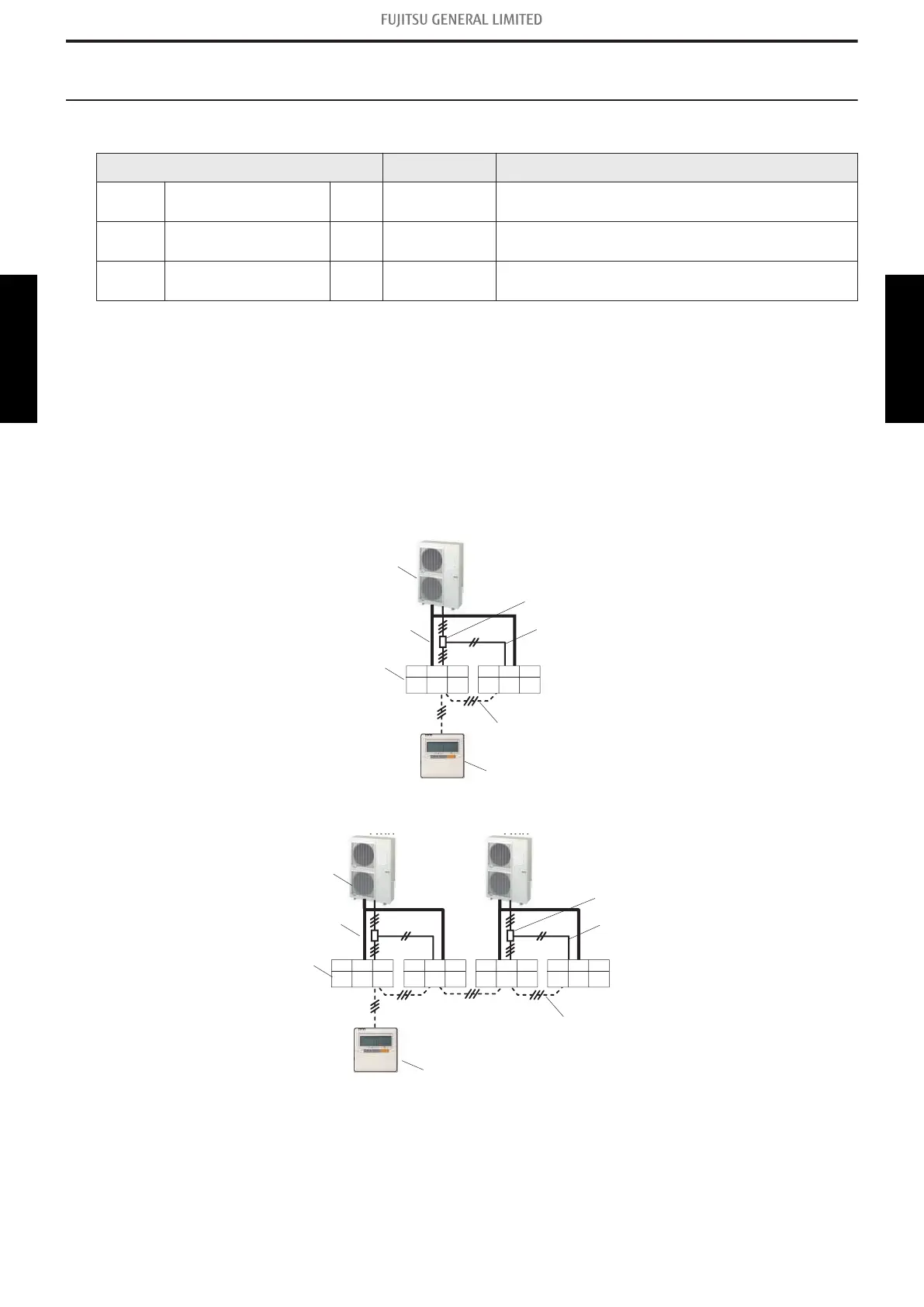

5. System setting
5-1. Indoor unit setting
Setting Setting range Setting method
Set A
Indoor unit
Primary/Secondary
◌ “00” or “01”
Refer to Chapter 8-6. "Function details" on page
284. (Function number: 51)
Set B
Refrigerant circuit
address
● “00” to “15”
Refer to Chapter 8-6. "Function details" on page
284. (Function number: 02)
Set C
Remote controller
address
◌ “00” to “15”*
Refer to Chapter 8-6. "Function details" on page
284. (DIP switch setting)
NOTES:
• ◌: Setting is required.
• ●: By a case, setting is required.
• *: Set the remote controller address in the order of “00”, “01”, “02”,..., “15”. (Blank is not al-
lowed).
¢
Twin type
• Connection example 1
Refrigerant pipe
Connection cable
Remote controller cable
SetASetB SetC
(00)(00)(00)
SetASetB SetC
01 01
(00)
<Twin>
Indoor unit
Outdoor unit
Wired remote controller
Junction box
• Connection example 2
Refrigerant pipe
Connection cable
Remote controller cable
SetASetB SetC
(00)
01 02
SetASetB SetC
01 01 03
SetASetB SetC
(00)(00)(00)
SetASetB SetC
01 01
(00)
<Twin> <Twin>
Indoor unit
Outdoor unit
Wired remote controller
Junction box
<Twi
n>
<Twi
n>
NOTE:
(00) is factory setting.
- 221 -
5-1. Indoor unit setting 5. System setting
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
