Fujitsu ARYG36LMLE User Manual

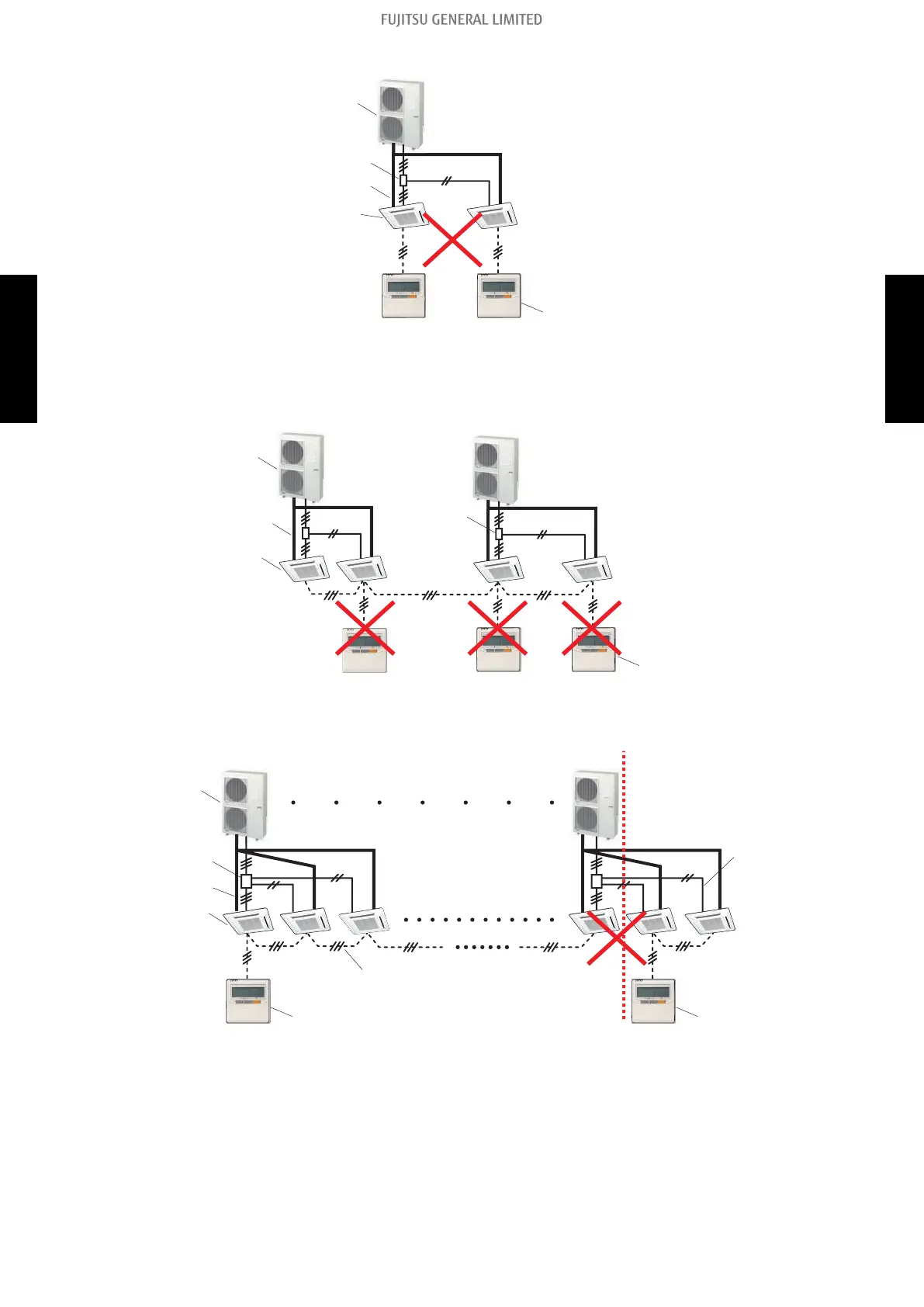

• Example 4 (Prohibited)
Refrigerant pipe
<Twin>
Indoor unit
Outdoor unit
Wired remote controller
Junction box
ox
NOTE: When connecting more than 2 indoor units in same refrigerant circuit, the remote controller
cable must be connected between indoor units.
• Example 5 (Prohibited)
<Twin>
Wired remote controller
Junction box
Refrigerant pipe
<Twin>
Indoor unit
Outdoor unit
NOTE:
Do not connect 3 or more remote controllers in the same remote controller group.
• Example 6 (Prohibited)
Outdoor unit
Indoor unit
Refrigerant pipe
Connection cable
Remote controller cable
<Triple> <Triple>
Wired remote controller Wired remote controller
Junction box
NOTE:
Do not separate the remote controller group in the same refrigerant circuit.
- 220 -
4-3. Control patterns 4. Wiring design
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
