Local setting procedure
NOTE: Before performing the function setting, be sure to stop the operation of the air conditioner.

Low noise mode
1. Press the MODE switch button (SW107) for 3 seconds or more to switch to “Local setting
mode”.
2. After confirming the LED lamp of POWER/MODE blinks 9 times, press the ENTER switch but-
ton (SW109).
POWER
MODE
ERROR
(L1) (L2) (L3) (L4) (L5) (L6)
PUMP
DOWN
LOW NOISE PEAK CUT
Blinks
(9 times )
Sign “ ”: Lights off

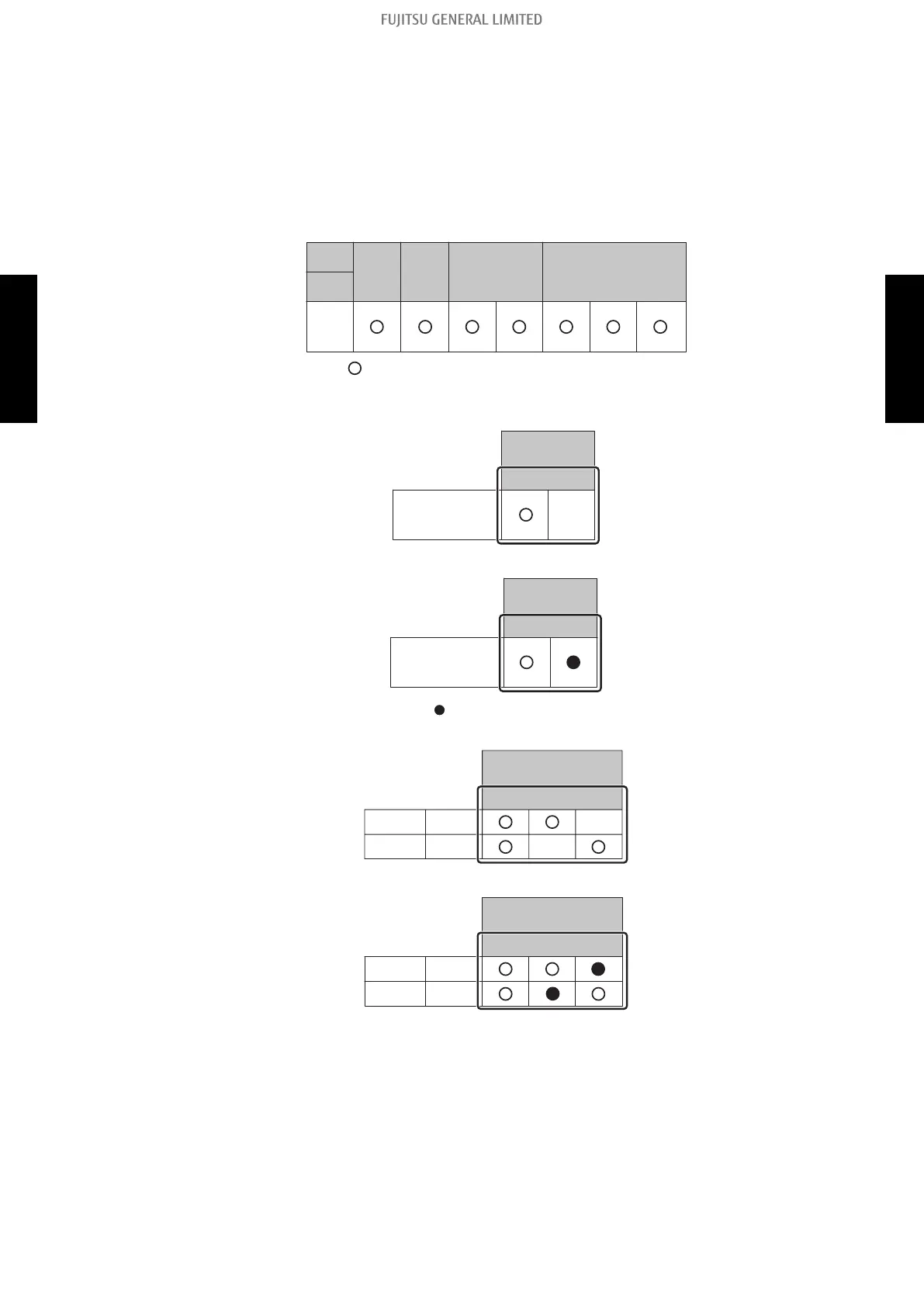

3. Press the SELECT switch button (SW108), and adjust the LED lamp as shown below. Then the
LED lamp indicates the current setting.
(L2)
(L3)
LOW NOISE
Blink
LOW NOISE
MODE
4. Press the ENTER switch button (SW109).
(L2) (L3)
LOW NOISE
LOW NOISE
MOD E
Sign “ ”: Lights on
5. Press the SELECT switch button (SW108), and adjust the LED lamps as shown below.
PEAK CUT
Level 1
Level 2
Blink
Blink
(L4) (L5) (L6)
Low
Lower
6. Press the ENTER switch button (SW109) and fix it.
PEAK CUT
Level 1
Level 2
(L4) (L5) (L6)
Low
Lower
7. To return to “Operating status display (Normal operation)”, press the EXIT switch button
(SW112).
In case of missing how many times you pressed the SELECT and ENTER switch buttons:
1. To return to “Operation status display (Normal operation)”, press the EXIT switch button once.
2. Restart from the beginning of setting procedure.
NOTE: In case of missing how many times you pressed the SELECT and ENTER switch buttons,
you must redo the setting procedure. Return to “Operation status display (Normal opera-
tion)” by pressing the EXIT switch button once, and restart from the beginning of the setting
procedure.
- 282 -
